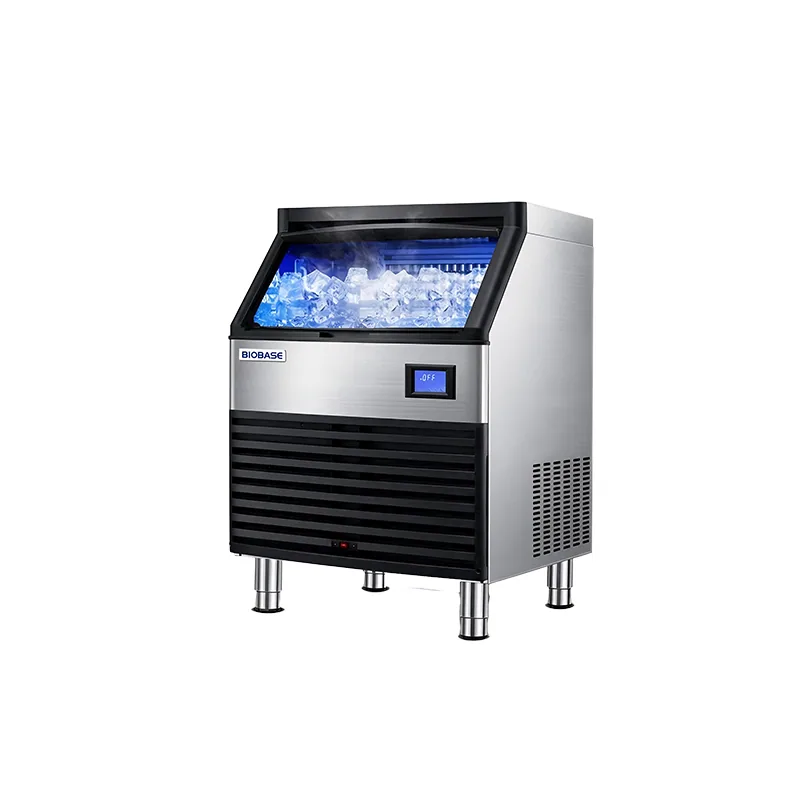

BIOBASE Cube Ice Machine 60kg 220kg 550kg
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Cube Ice Machine 60kg 220kg 550kg is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: CIM-150, CIM-200, CIM-300, CIM-800. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | CIM-150 | CIM-200 | CIM-300 | CIM-300 | CIM-300 | CIM-800 |
|---|---|---|---|---|---|---|
| Ice Making Capacity(kg/24h) | 150 | 200 | 300 | 300 | 300 | 800 |
| Max. Ice Storage Capacity | 60kg | 60kg | 220kg | 220kg | 220kg | 550kg |
| Ice Shape | Cube ice: 22*22*22mm | Cube ice: 22*22*22mm | Cube ice: 22*22*22mm | Cube ice: 22*22*22mm | Cube ice: 22*22*22mm | Cube ice: 22*22*22mm |
| Way of Condensation | Air-cooling | Air-cooling | Air-cooling | Air-cooling | Water-cooling | Water-cooling |
| Ambient Temperature | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ | 5~40℃ |
| Compressor | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | GMCC | GMCC | GMCC |
| Refrigerant | R290, 0.7kg | R290, 0.8kg | R290, 0.95kg | R290, 0.95kg | R290, 0.95kg | R290, 1.1kg |
| Standard Accessory | Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1 | Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1 | Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1 | Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1 | Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1 | Ice scoop*1, water inlet hose*1, drain hose*1, spare sealing washer*1 |
| Consumption | 720W | 720W | 1200W | 1200W | 1200W | 3200W |
| Power Supply | AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 110V, 60Hz, 220V, 60Hz(Optional) |
| External Size(W*D*H) | 600*670*965mm | 600*670*965mm | 590*830*1580mm | 590*830*1580mm | 590*830*1580mm | 1220*910*1840mm |
| Package Size(W*D*H) | 740*720*930mm | 740*720*930mm | Main machine: 610*730*680mm Ice storage bin: 610*930*970mm | Main machine: 610*730*680mm Ice storage bin: 610*930*970mm | Main machine: 610*730*680mm Ice storage bin: 610*930*970mm | Main machine: 1270*690*690mm Ice storage bin: 1270*960*1200mm |
| Net Weight | 65kg | 65kg | 80kg | 80kg | 80kg | 210kg |
| Gross Weight | 70kg | 70kg | 87kg | 87kg | 87kg | 230kg |
Manufacturer catalogue checked 2026-09-28.
