Brand: BIOBASE | Category: Scientific & Laboratory Equipment

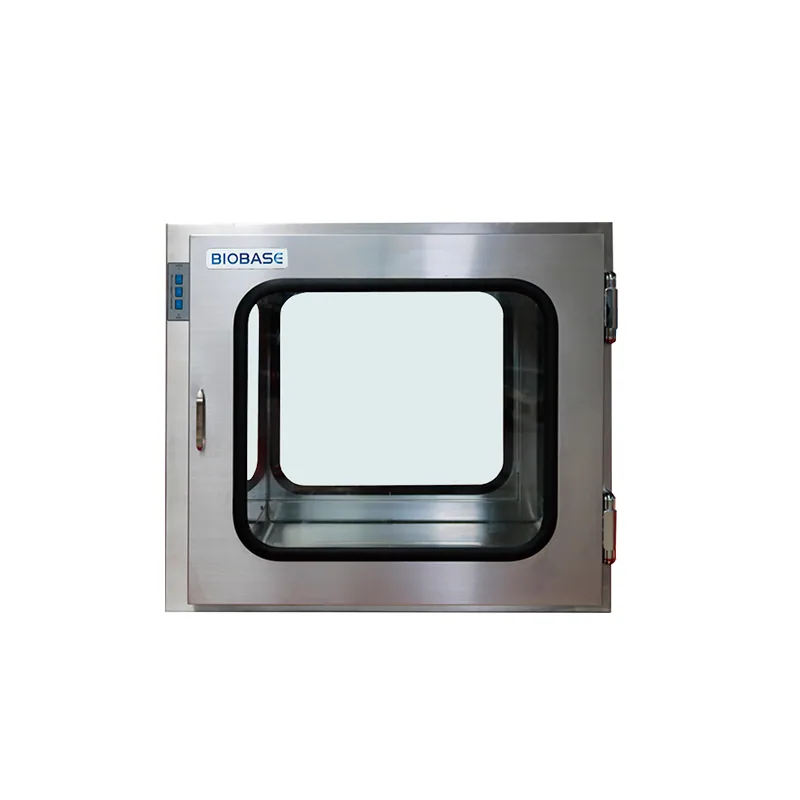

BIOBASE Pass Box is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: ASPB-01, ASPB-02, ASPB-03, PB-01, PB-02, PB-03. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Type | Air Shower Pass Box | Air Shower Pass Box | Air Shower Pass Box | Pass Box | Pass Box | Pass Box |
|---|---|---|---|---|---|---|
| Model | ASPB-01 | ASPB-02 | ASPB-03 | PB-01 | PB-02 | PB-03 |
| External Size(W*D*H)mm | 660*570*1000 | 760*670*1100 | 860*770*1200 | 660*570*580 | 760*670*680 | 860*770*780 |
| Internal Size(W*D*H)mm | 500*500*500 | 600*600*600 | 700*700*700 | 500*500*500 | 600*600*600 | 700*700*700 |
| Material | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel | 304 Stainless steel |
| Interlock | Electronical | Electronical | Electronical | Electronical | Electronical | Electronical |
| UV Lamp | 8W*1 | 8W*1 | 8W*1 | 8W*1 | 8W*1 | 8W*1 |
| HEPA Filter | Efficiency≥99.995% at 0.3μm | Efficiency≥99.995% at 0.3μm | Efficiency≥99.995% at 0.3μm | / | / | / |
| Clean Air Speed | 0.36~0.54m/s | 0.36~0.54m/s | 0.36~0.54m/s | / | / | / |
| Power Supply | Standard: 220V 50/60Hz; Optional: 110V, 50/60Hz | Standard: 220V 50/60Hz; Optional: 110V, 50/60Hz | Standard: 220V 50/60Hz; Optional: 110V, 50/60Hz | Standard: 220V 50/60Hz; Optional: 110V, 50/60Hz | Standard: 220V 50/60Hz; Optional: 110V, 50/60Hz | Standard: 220V 50/60Hz; Optional: 110V, 50/60Hz |
| Gross Weight (kg) | 80 | 116 | 141 | 51 | 70 | 89 |
| Packing Size(W*D*H)mm | 760*660*1130 | 860*760*1250 | 950*860*1350 | 760*670*720 | 860*790*820 | 950*860*940 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
