Brand: BIOBASE | Category: Scientific & Laboratory Equipment

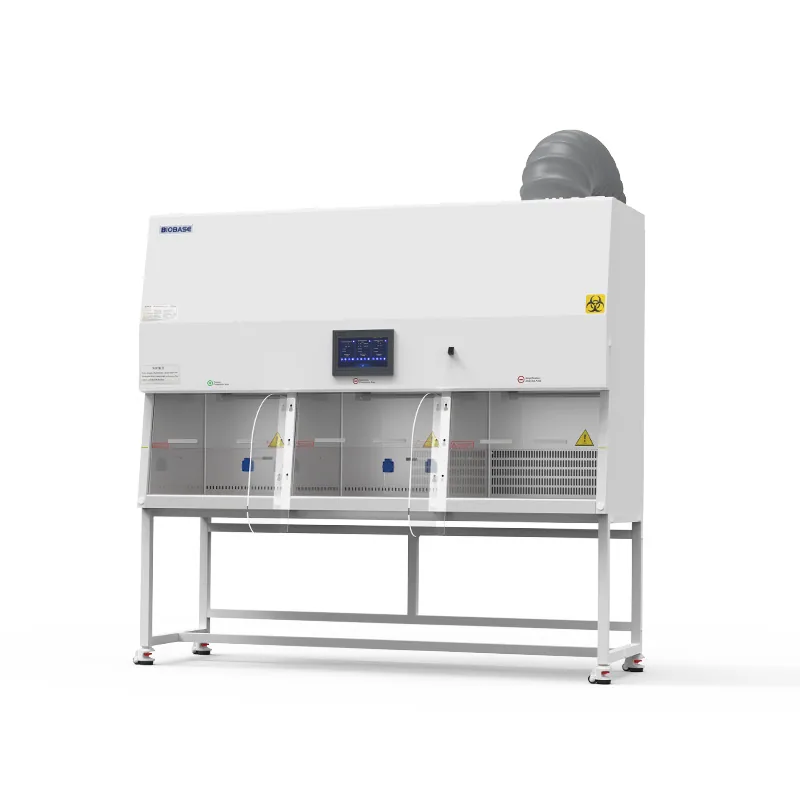

BIOBASE Mini PCR Workstation is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: PCR1600, PCR2100, PCR2500, 0.5~10μl, 10~100μl, 100~1000μl. Compare the remaining models in the specification tables. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | PCR1600 | PCR2100 | PCR2500 |
|---|---|---|---|
| External Size(L*W*H)mm | 1600*710*2100mm | 2100*710*2000mm | 2500*850*2100mm |
| Reagent Preparation Area / Operating Area Size(L*W*H) | 440*560*510mm | 640*560*510mm | 640*710*610mm |
| Reagent Preparation Area / Pressure | Positive | Positive | Positive |
| Reagent Preparation Area / Airflow Velocity(m/s) | 0.3~0.45 | 0.3~0.45 | 0.3~0.45 |
| Reagent Preparation Area / Airflow Volume(m3/h) | 190~290 | 290~430 | 380~560 |
| Reagent Preparation Area / Exhaust Type | / | / | / |
| Specimen Preparation Area / Operating Area Size(L*W*H) | 560*560*510mm | 660*560*510mm | 1060*710*610mm |
| Specimen Preparation Area / Pressure | Negative | Negative | Negative |
| Specimen Preparation Area / Airflow Velocity(m/s) | Downflow: 0.33±0.025 Inflow: 0.53±0.025 | Downflow: 0.33±0.025 Inflow: 0.53±0.025 | Downflow: 0.33±0.025 Inflow: 0.53±0.025 |
| Specimen Preparation Area / Airflow Volume(m3/h) | 210 | 250 | 400 |
| Specimen Preparation Area / Exhaust Type | Type A2, 30% exhaust, 70% recirculation | Type A2, 30% exhaust, 70% recirculation | Type A2, 30% exhaust, 70% recirculation |
| Amplification Analysis Area / Operating Area Size(L*W*H) | 440*560*510mm | 640*560*510mm | 640*710*610mm |
| Amplification Analysis Area / Pressure | Negative | Negative | Negative |
| Amplification Analysis Area / Airflow Velocity(m/s) | ≥0.4 | ≥0.4 | ≥0.4 |
| Amplification Analysis Area / Airflow Volume(m3/h) | ≥160 | ≥180 | ≥180 |
| Amplification Analysis Area / Exhaust Type | 100% exhaust | 100% exhaust | 100% exhaust |
| ULPA Filter / Four, 99.999% efficiency at 0.12μm | Four, 99.999% efficiency at 0.12μm | Four, 99.999% efficiency at 0.12μm | Four, 99.999% efficiency at 0.12μm |
| Clean Level / Class 100(ISO Class 5) | Class 100(ISO Class 5) | Class 100, except amplification analysis area | Class 100, except amplification analysis area |
| Front Window / Manual, toughened glass, anti UV | Manual, toughened glass, anti UV | Manual, toughened glass, anti UV | Manual, toughened glass, anti UV |
| Max Opening / 400mm | 400mm | 400mm | 480mm |
| Noise / ≤67dB(A) | ≤67dB(A) | ≤67dB(A) | ≤67dB(A) |
| Vibration / ≤5μm | ≤5μm | ≤5μm | ≤5μm |
| UV Lamp / 8W*3, UV timer, UV life indicator | 8W*3, UV timer, UV life indicator | 15W*3 | 30W*1, 15W*2 |
| LED Lamp / 4W*6 | 4W*6 | 8W*6 | 8W*4, 12W*2 |
| Illumination(lx) / ≥500( Each area) | ≥500( Each area) | ≥650(Each area) | ≥650(Each area) |
| Sockets / The load of two sockets(Each area): 500W, total 6 sockets | The load of two sockets(Each area): 500W, total 6 sockets | The load of two sockets(Each area): 500W, total 6 sockets | The load of two sockets(Each area): 500W, total 6 sockets |
| Display / Touch screen | Touch screen | Touch screen | Touch screen |
| Control System / Microprocessor | Microprocessor | Microprocessor | Microprocessor |
| Visual and Audio Alarm / Filter replacement, window over height, abnormal air flow velocity | Filter replacement, window over height, abnormal air flow velocity | Filter replacement, window over height, abnormal air flow velocity | Filter replacement, window over height, abnormal air flow velocity |
| Work Surface Height / 750mm | 750mm | 750mm | 750mm |
| Material / Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating | Work Zone: 304 stainless steel Main Body: Cold-rolled steel with anti-bacteria powder coating |
| Power Supply / AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Consumption / 600W, total 2100W(With load) | 600W, total 2100W(With load) | 600W, total 2100W(With load) | 1000W, total 2500W |
| Standard Accessory / LED lamp*6, UV lamp*4, Windproof plate*2(Only for PCR2100/2500), Waterproof sockets*6 | LED lamp*6, UV lamp*4, Windproof plate*2(Only for PCR2100/2500), Waterproof sockets*6 | LED lamp*6, UV lamp*4, Windproof plate*2(Only for PCR2100/2500), Waterproof sockets*6 | LED lamp*6, UV lamp*4, Windproof plate*2(Only for PCR2100/2500), Waterproof sockets*6 |
| Package Size(W*D*H) / 1750*980*1400mm | 1750*980*1400mm | 2250*980*1400mm | 2650*1120*1500mm |
| Gross Weight / 400kg | 400kg | 450kg | 500kg |
| Item | Name | Model | Quantity |
|---|---|---|---|
| Reagent Preparation Area | Pipette | 0.5~10μl | 1 |
| Reagent Preparation Area | Pipette | 10~100μl | 1 |
| Reagent Preparation Area | Pipette | 100~1000μl | 1 |
| Reagent Preparation Area | Centrifuge | MINI-7 | 1 |
| Reagent Preparation Area | Mixer | BJPX-VW | 1 |
| Reagent Preparation Area | Tips | 10μl, 100μl, 1000μl | / |
| Reagent Preparation Area | Centrifuge tube | 1.5ml | / |
| Reagent Preparation Area | 8-strip tube | 0.2ml | / |
| Reagent Preparation Area | QPCR kit | Covid-19 | / |
| Specimen Preparation Area | Pipette | 0.5~10μl | 1 |
| Specimen Preparation Area | Pipette | 10~100μl | 1 |
| Specimen Preparation Area | Pipette | 100~1000μl | 1 |
| Specimen Preparation Area | Disposable virus sampling collector(One step method) | / | / |
| Specimen Preparation Area | Tips | 10μl, 100μl, 1000μl | / |
| Specimen Preparation Area | Centrifuge tube | 1.5ml | / |
| Specimen Preparation Area | Centrifuge | MINI-7 | 1 |
| Specimen Preparation Area | Mixer | BJPX-VW | 1 |
| Specimen Preparation Area | Nucleic acid extraction system(only for PCR2500) | BNP32 or BNP8 | 1 |
| Amplification Analysis Area | QPCR | LEIA-X4 | 1 |
| Other Related Equipment | Biosafety transport box | BTB-L5 | 1 |
| Other Related Equipment | -25℃ freezer | BDF-25V270 | 1 |
| Other Related Equipment | -86℃ freezer | BDF-86V158 | 1 |
Manufacturer catalogue checked 2026-09-28.
