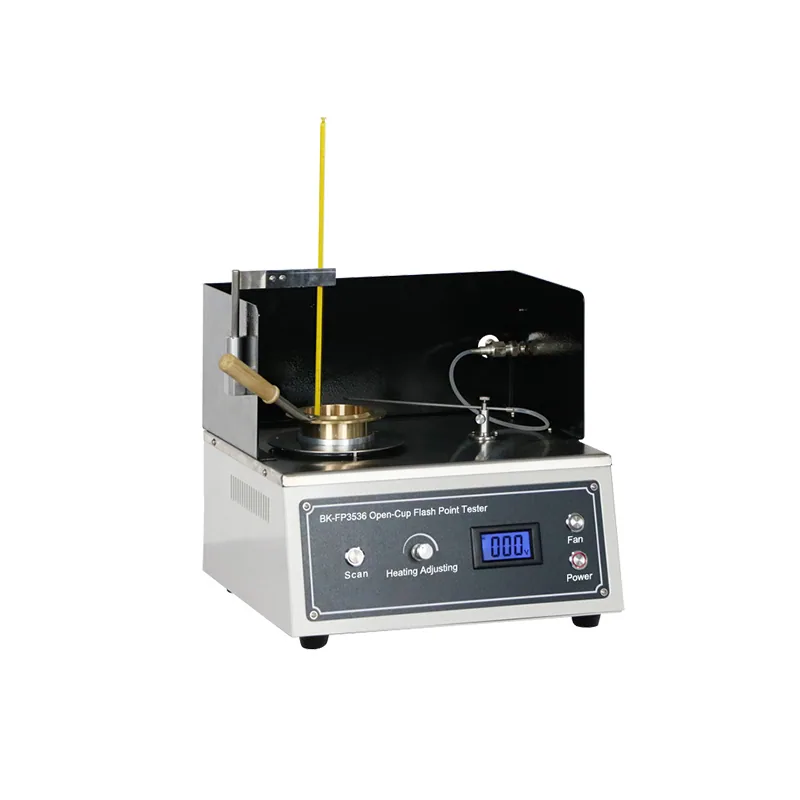

BIOBASE Open-Cup Flash Point Tester
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Open-Cup Flash Point Tester is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: BK-FP3536, BK-FP3536D. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-FP3536 | BK-FP3536D |
|---|---|---|
| Thermometer | -6°C~400°C. It is the same as thermometer ASTM 11C | -6°C~400°C. It is the same as thermometer ASTM 11C |
| Ambient Temperature | 15°C~35°C | 15°C~35°C |
| Relative Humidity | ≤85% | ≤85% |
| Consumption | ≤600W | ≤750W |
| Test Flame Applicator | It applies the test flash automatically | It applies the test flash automatically |
| Heating Device | Furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 500W | 1. Initial heating: (14~17)°C/min 2. It is (5~6)°C/min after reaching the preset flash point 20 °C |
| Igniting Device | (1) Ignition source: coal gas(or civil gas) (2) Nozzle aperture: about 0.8mm | Electric ignition Diameter of igniter: 0.7mm~0.8mm |
| Flash Point Determination | \ | Range: Ambient to 400°C Accuracy: 0.1°C |
| Power Supply | AC220V, 50Hz | AC220V, 50Hz |
| Dimension(W*D*H) | 350*290*350mm | 510*320*330mm |
| Package Size(W*D*H) | 650*450*420mm | 690*500*610mm |
| Gross Weight | 20kg | 35kg |
Manufacturer catalogue checked 2026-09-28.
