Brand: BIOBASE | Category: Scientific & Laboratory Equipment

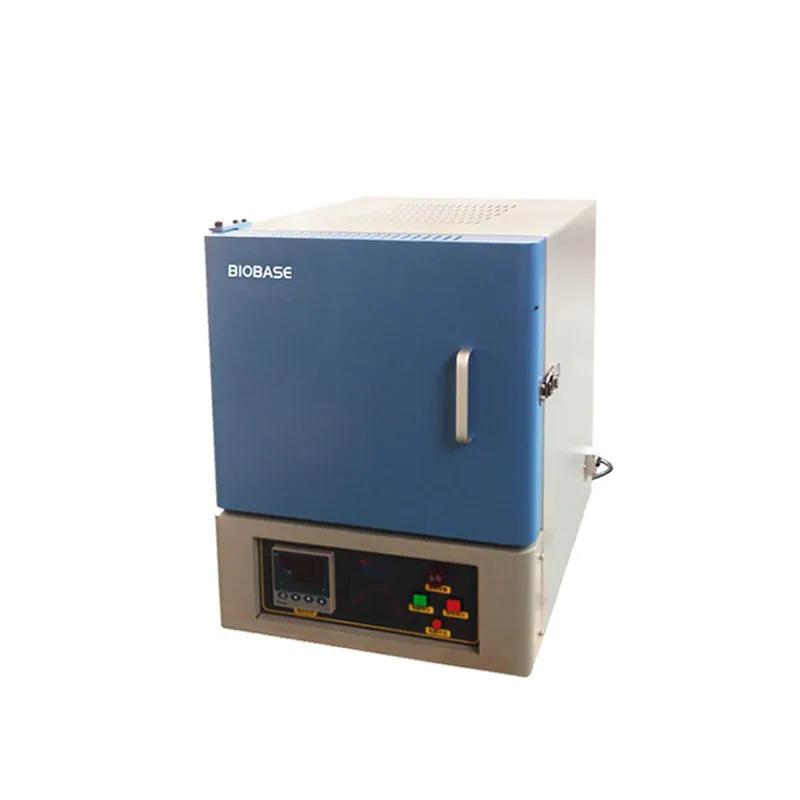

BIOBASE Muffle Furnace MX Series is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: MX6-10T/TP, MX8-10T/TP, MX16-10T/TP, MX30-10T/TP, MX6-12T/TP, MX8-12T/TP. Compare the remaining models in the specification tables. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MX6-10T/TP | MX8-10T/TP | MX16-10T/TP | MX30-10T/TP | MX6-12T/TP | MX8-12T/TP | MX30-12T/TP |
|---|---|---|---|---|---|---|---|
| Max. Temp.(℃) | 1000 | 1000 | 1000 | 1000 | 1200 | 1200 | 1200 |
| Capacity(L) | 6 | 8 | 16 | 30 | 6 | 8 | 30 |
| Temp. Accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Power(kW) | 2.8 | 3.5 | 6 | 10 | 2.8 | 3.5 | 10 |
| Power Supply | Standard: AC220, 50/60Hz; Optional: AC110, 50/60Hz | AC220, 50/60Hz | Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz | Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz | AC220, 50/60Hz | AC220, 50/60Hz | Standard: AC220, 50/60Hz(3-phase); Optional: AC380, 50/60Hz |
| Heating Rate | 1~30℃/min for TP series | 1~30℃/min for TP series | 1~30℃/min for TP series | 1~30℃/min for TP series | 1~30℃/min for TP series | 1~30℃/min for TP series | 1~30℃/min for TP series |
| Temp. Uniformity | ±6℃ | ±6℃ | ±6℃ | ±6℃ | ±6℃ | ±6℃ | ±6℃ |
| Material | External material: Cold rolled steel carbon steel spraying; Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying; Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying; Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying; Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying; Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying; Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying; Internal material: Ceramic inner chamber |
| Heating Element | Electric furnace wire | Electric furnace wire | Electric furnace wire | Electric furnace wire | Electric furnace wire | Electric furnace wire | Electric furnace wire |
| Temp. Control | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller |
| Optional / Accessory | Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder | Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder | Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder | Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder | Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder | Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder | Observation hole; Exhaust chimney; Furnace bottom plate(MX30-12T/TP is standard); Paperless recorder |
| Optional / Functions | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened; 30 programmable periods(only for T Type) |
| Internal Size(W*D*H)mm | 180*230*150 | 200*300*120 | 250*400*160 | 300*500*200 | 180*230*150 | 200*300*120 | 300*500*200 |
| External Size(W*D*H)mm | 500*510*640 | 500*580*610 | 550*690*660 | 600*780*710 | 500*510*640 | 500*580*610 | 600*780*710 |
| Packing Size(W*D*H)mm | 630*700*870 | 630*800*870 | 680*910*870 | 870*1110*990 | 630*700*870 | 630*800*870 | 870*1110*990 |
| Gross Weight(kg) | 82 | 84 | 111 | 146 | 82 | 84 | 146 |
| Model | MX8-13T/TP | MX10-13T/TP | MX6-16TP | MX11-16TP | MX6-17TP | MX11-17TP |
|---|---|---|---|---|---|---|
| Max. Temp.(°C) | 1300 | 1300 | 1600 | 1600 | 1700 | 1700 |
| Capacity(L) | 8 | 10 | 6 | 11 | 6 | 11 |
| Temp. Accuracy | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ | ±1℃ |
| Power(kW) | 4 | 4 | 8 | 12 | 6 | 8 |
| Power Supply | AC220, 50/60Hz | AC220, 50/60Hz | Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz(2-phase) | AC380, 50/60Hz(2-phase) | Standard: AC220, 50/60Hz; Optional: AC380, 50/60Hz(2-phase) | AC380, 50/60Hz(2-phase) |
| Heating Rate | 1~30°C/min for TP series | 1~30°C/min for TP series | 1~15°C | 1~15°C | 1~15°C | 1~15°C |
| Material | External material: Cold rolled steel carbon steel spraying Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying Internal material: Ceramic inner chamber | External material: Cold rolled steel carbon steel spraying Internal material: Ceramic inner chamber |
| Heating Element | Silicon carbon rod S type thermocouple | Silicon carbon rod S type thermocouple | Silicon molybdenum rod type B thermocouple | Silicon molybdenum rod type B thermocouple | Silicon molybdenum rod type B thermocouple | Silicon molybdenum rod type B thermocouple |
| Temp. Control | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller | Intelligent temperature controller |
| Optional / Accessory | Observation hole; Exhaust chimney; Furnace bottom plate; Paperless recorder | Observation hole; Exhaust chimney; Furnace bottom plate; Paperless recorder | Exhaust chimney; Paperless recorder | Exhaust chimney; Paperless recorder | Exhaust chimney; Paperless recorder | Exhaust chimney; Paperless recorder |
| Optional / Functions | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened; 30 programmable periods(only for T Type) | Automatically power off once the door is opened | Automatically power off once the door is opened | Automatically power off once the door is opened | Automatically power off once the door is opened |
| Internal Size(W*D*H)mm | 200*300*120 | 200*300*180 | 150*300*120 | 200*300*180 | 150*300*120 | 200*300*180 |
| External Size(W*D*H)mm | 580*630*700 | 580*630*750 | 750*810*1360 | 1000*900*1600 | 750*810*1360 | 1000*900*1600 |
| Package Size(W*D*H)mm | 710*910*920 | 770*860*1050 | 920*800*1150 | 1200*1100*1800 | 800*920*1150 | 1200*1100*1800 |
| Gross Weight(kg) | 119 | 130 | 237 | 350 | 237 | 350 |
Manufacturer catalogue checked 2026-09-28.
