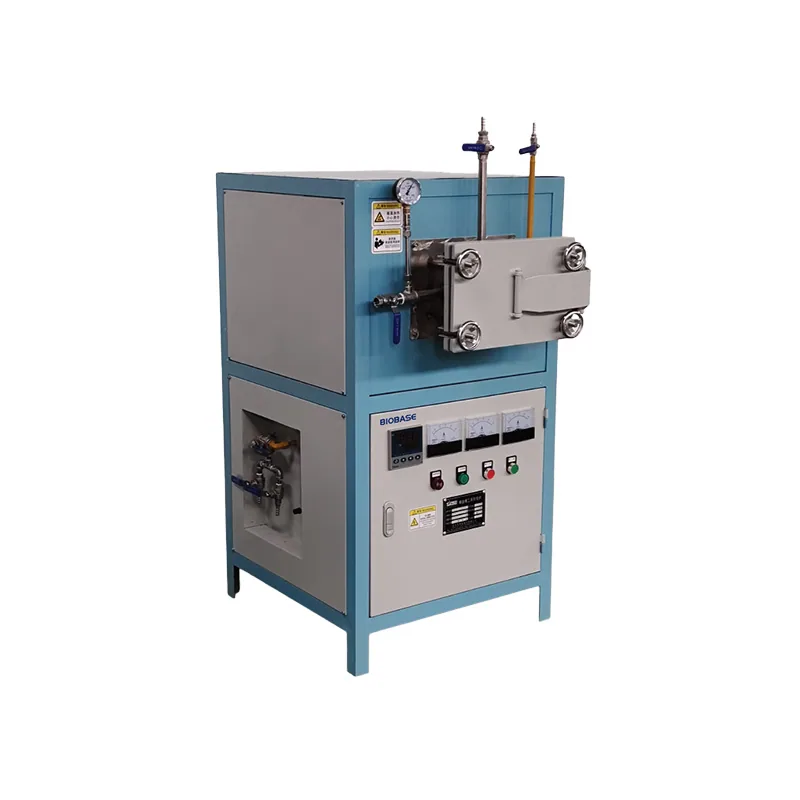

BIOBASE Vacuum Atmosphere Furnace 7.2L
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Vacuum Atmosphere Furnace 7.2L is listed in VVON's laboratory ovens & furnaces range for Bangladesh. Published models: MXV7-11TP. Published details include Capacity: 7.2L; Vacuuming Capacity: -0.1MPa. Compare working volume, temperature range, atmosphere and power requirements. For a quotation, send the process, chamber volume, temperature range and electrical supply. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | MXV7-11TP |
|---|---|
| Short-term Maximum Temperature | 1100℃ |
| Capacity | 7.2L |
| Chamber Size | 300*200*120mm |
| Temperature Control Accuracy | ±1℃ |
| Chamber Material | 310S high-temperature stainless steel |
| Temperature Control Method | PID adjustable, 30 heating programs can be programmed |
| Rated Power | 10KW |
| Flow Meter Range | 0.6~6L/min |
| Vacuuming Capacity | -0.1MPa |
| Safety&Environmental Protection | The temperature control system has multiple safety protection measures such as short circuit, overcurrent protection, broken couple, overtemperature alarm and automatic power cut-off protection; the vacuum system has leakage protection, short circuit protection, overcurrent protection, motor overload protection and exhaust port oil mist filtration |
| Power Supply | AC380V, 50/60Hz; Air switch |
| Packing Size(L*W*H) | 1000*740*1500mm |
| Gross Weight; | 230kg; |
Manufacturer catalogue checked 2026-09-28.
