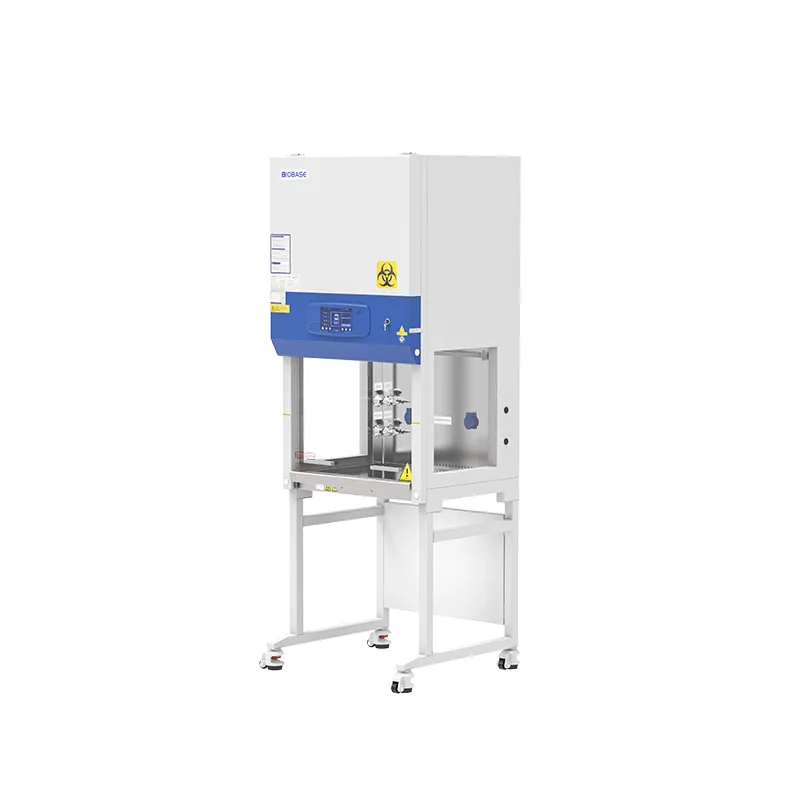

BIOBASE New Biological Safety Cabinet BSC-2FA2-HA
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE New Biological Safety Cabinet BSC-2FA2-HA is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-2FA2-HA. Published details include Volume Exhaust: 35%: 230m³/h(135cfm). Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-2FA2-HA |
|---|---|
| External Size(W*D*H) | 700*700*2000mm |
| Internal Size(W*D*H) | 600*500*540mm |
| Work Surface Height | 750mm |
| Max Opening Height | 350mm |
| Safe Operation | 200mm |
| Opening Height | 200mm |
| Inflow | 230m³/h(135cfm) |
| Airflow Down flow | 65%: 428m³/h(252cfm) |
| Volume Exhaust | 35%: 230m³/h(135cfm) |
| Front Window | Manual and electric, glass thickness>5mm, anti-ultraviolet |
| ULPA Filter | 2pcs, filtration efficiency for 0.12μm particles≥99.9995% |
| Illumination | ≥1000Lux |
| Noise | EN12469≤65dB |
| Display | Color touch screen |
| European Standard Socket | 230V, 3A |
| Power Supply | AC230V, 50/60Hz |
| Rated Power | 950W |
| Alarm | Alarm for abnormal wind speed, alarm for glass door not at safe height, alarm for abnormal power failure |
| Motor | EC motor, 230V acceptable, adjustable speed, high efficiency, low power |
| Material | Working area: 304 stainless steel, side window glass Frame and decorative plate: cold-rolled steel with anti-bacteria powder coating |
| LED Lamp | 8W*2 |
| UV Lamp | 15W |
| Standard Accessory | Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, Drain ball valve*1, European standard socket*2 |
| Optional Accessory | Arm rest, Formalin fumigation sterilizer, Infrared sterilizer S.S. water tap*2, S.S. gas tap*2 |
| Package Size(W*D*H)mm | Carton: 820*880*1470mm |
| Gross Weight(kg) | 168kg |
Manufacturer catalogue checked 2026-09-28.
