Brand: BIOBASE | Category: Scientific & Laboratory Equipment

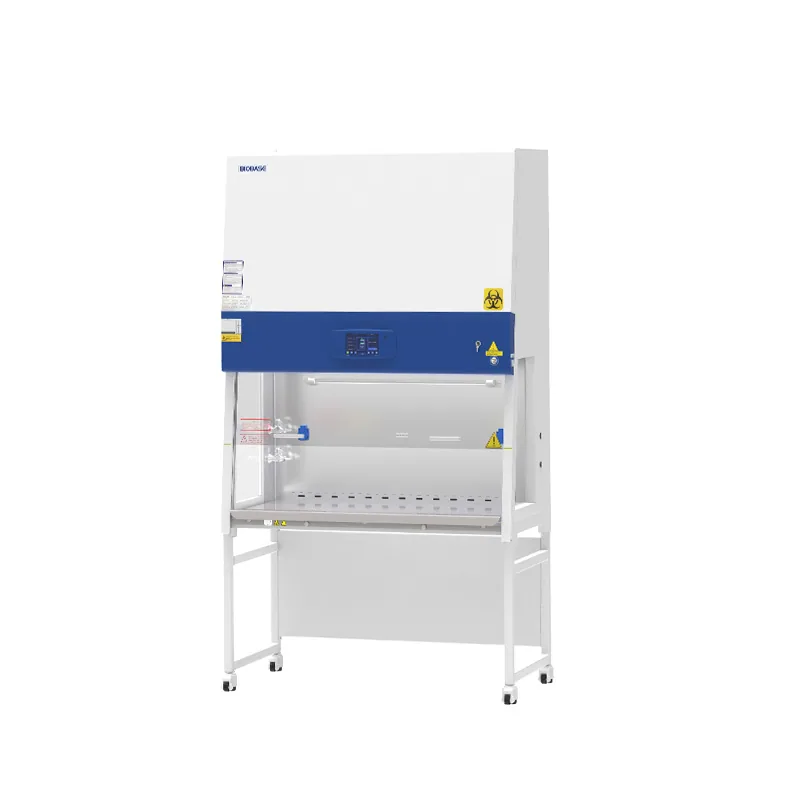

BIOBASE Biological Safety Cabinet BSC-4FA2-HA(Customized) is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BSC-4FA2-HA. Published details include Airflow Volume / Inflow: 490m³/h(289cfm); Airflow Volume / Down Flow: 70%: 1145m³/h(673cfm). Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BSC-4FA2-HA |
|---|---|
| External Size(W*D*H) | 1383*800*2260mm |
| Internal Size(W*D*H) | 1280*600*650mm |
| Work Surface Height | 750mm |
| Max Opening | 500mm |
| Tested Opening | 200mm |
| Airflow Volume / Inflow | 490m³/h(289cfm) |
| Airflow Volume / Down Flow | 70%: 1145m³/h(673cfm) |
| Airflow Volume / Exhaust | 30%: 490m³/h(289cfm) |
| Front Window | Manual and electric, glass thickness≥6mm, anti-ultraviolet |
| ULPA Filter | 2pcs, filtration efficiency for 0.12μm, particles≥99.9995% |
| Illumination | ≥1000Lux |
| Noise | EN12469≤63dB |
| Display | Color touch screen |
| European Standard Socket | 230V, 3A |
| Power Supply | AC230V, 50/60Hz |
| Rated Power | 1200W |
| Alarm | Alarm for abnormal wind speed, alarm for glass door not at safe height, alarm for abnormal power failure |
| Motor | AC motor, 230V acceptable, adjustable speed, high efficiency, low power |
| Material | Working area: 304 stainless steel, side window glass Frame and decorative plate: cold-rolled steel with anti-bacteria powder coating |
| LED Lamp | 14W*2 |
| UV Lamp | 30W |
| Standard Accessory | Cabinet*1, Base stand*1, LED lamp*2, UV lamp*2, S.S. water tap*1, S.S. gas tap*1, Drain ball valve*1, European standard socket*2, Remote control |
| Optional Accessory | Arm rest, Formalin fumigation sterilizer, Infrared sterilizer, Electric height adjustable base stand, S.S. water tap*1, S.S. gas tap*1, Foot switch |
| Package Size(W*D*H) | 1530*1060*1880mm |
| Gross Weight | 345kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
