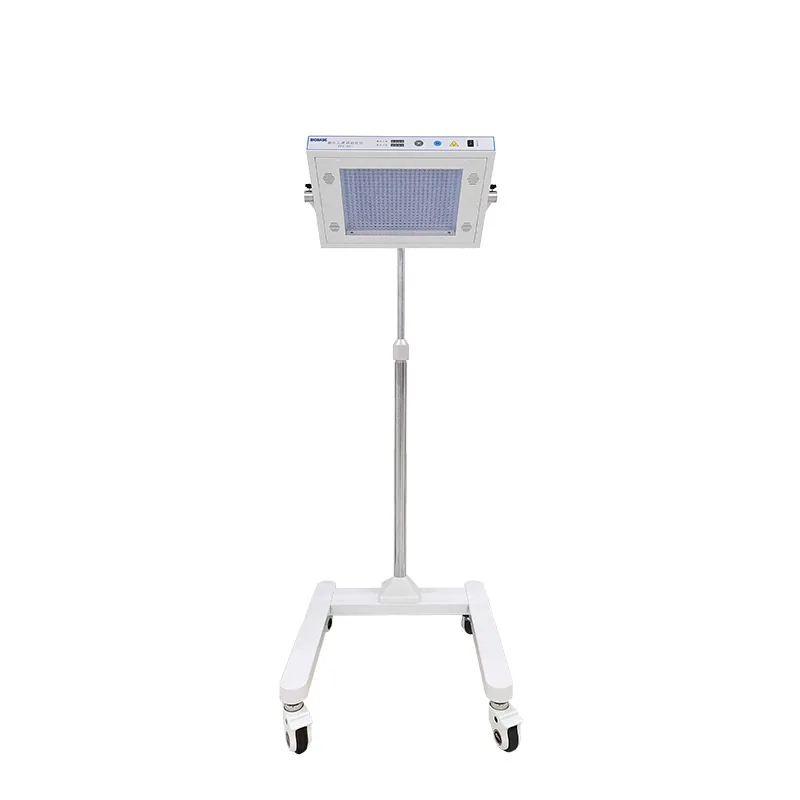

BIOBASE Neonatal Jaundice Therapy Apparatus BHZ-001 BHZ-002
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Neonatal Jaundice Therapy Apparatus BHZ-001 BHZ-002 is listed in VVON's neonatal care equipment range for Bangladesh. Published models: BHZ-001, BHZ-002. Confirm the neonatal-care application, monitoring functions and required accessories. For a quotation, send the care application, required monitoring, accessories and installation location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BHZ-001 | BHZ-002 |
|---|---|---|
| Light Source | LED | LED |
| Dominant Wavelength of Blue Light(nm) | 425~475 | 425~475 |
| Lifetime of the LED | 5000h | 5000h |
| Product Service Life | 6 years | 6 years |
| Radiation Therapy Distance(mm) | Distance light box 450 | Distance light box 450 |
| Phototherapy Effective Surface Area(mm) | 300*200 | 300*200 |
| The Total lrradiance for Maximum Bilirubin on the Effective Surface Area | 5.2mW/cm^(2)±0.5mW/cm^(2) | 2.4mW/cm^(2)+0.3mW/cm^(2) |
| The Total lrradiance on the Effective Surface Area? | ≥2.5mW/cm^(2) | ≥1.0mW/cm^(2) |
| Average Value of the Total lrradiance for Bilirubin | 4.0mW/cm^(2)±0.5mW/cm^(2) | 1.5mW/cm^(2)±0.5mW/cm^(2) |
| Uniformity of the Total lrradiance for Bilirubin | >0.4 | >0.4 |
| Noise | ≤45dB(A) | ≤45dB(A) |
| Light Box lrradiation Angle Adjustment Range | 0~90° adjusted up and down | \ |
| Light Box Height Adjustment Range(mm) | 1350~1650 | \ |
| Display Timer Range | 0~9999hours59minutes | 0~9999hours59minutes |
| Ambient Air Movement Rate(m/s) | <0.3 | <0.3 |
| Working Temp. | 5~35℃ | 5~35℃ |
| Working Relative Humidity | 30%~80% | 30%~80% |
| Working Atmospheric Pressure | 700~1060hPa | 700~1060hPa |
| Overvoltage Category | II | II |
| Pollution Grade | 2 | 2 |
| Waterproofing Grade | IPXO | IPXO |
| Application Environment Elevation(m) | ≤3000 | ≤3000 |
| Power Supply | AC100~240V, 50/60Hz | AC100~240V, 50/60Hz |
| External Size(W*D*H) | 705*620*1350~1650mm | 470*320*65mm |
| Packing Size(W*D*H) | 750*710*1250mm | 615*415*180mm |
| Net Weight | 15kg | 4kg |
| Gross Weight | 33kg | 5.1kg |
Manufacturer catalogue checked 2026-09-28.
