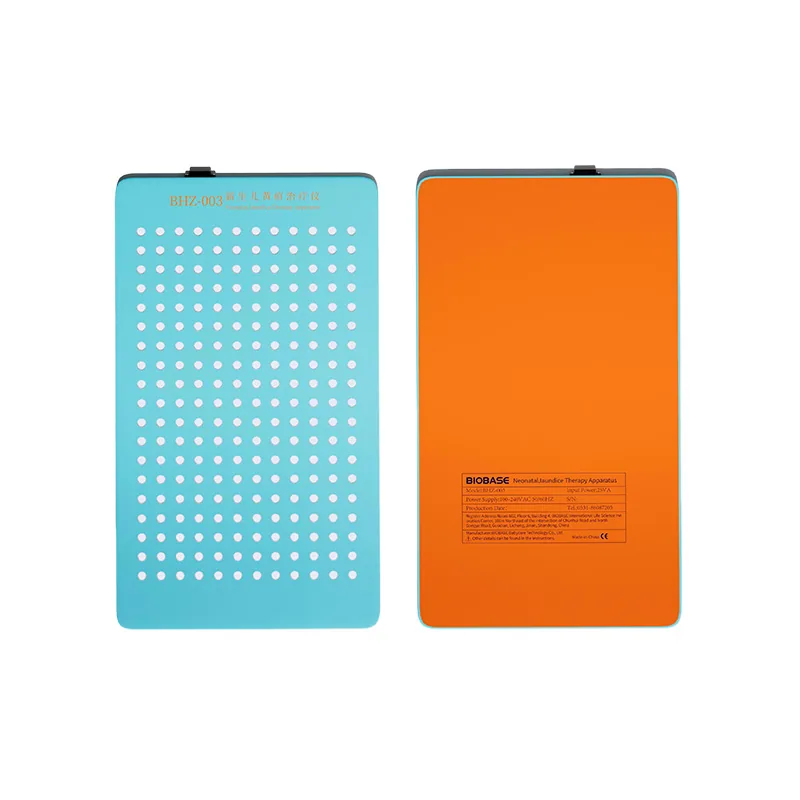

BIOBASE Neonatal Jaundice Therapy Apparatus
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Neonatal Jaundice Therapy Apparatus is listed in VVON's neonatal care equipment range for Bangladesh. Published models: BHZ-003. Confirm the neonatal-care application, monitoring functions and required accessories. For a quotation, send the care application, required monitoring, accessories and installation location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BHZ-003 |
|---|---|
| Light Source | LED |
| Dominant Wavelength of Blue Light | 425~475nm |
| LED Lifetime | 50000h |
| Product Service Life | 6 years |
| Timing Operating Modes | 3H, 9H, 12H |
| Irradiance Levels | 3-grade adjustable(H,M,L) |
| Effective Treatment Area | 400* 240mm |
| Total Bilirubin Phototherapy Irradiance | H: 1.8mW/cm² ± 0.5mW/cm² M: 1.5mW/cm² ± 0.5mW/cm² L: 1mW/cm² ± 0.5mW/cm² |
| Irradiance Uniformity (for Bilirubin Phototherapy) | ≥0.4 |
| Infrared Radiation | ≤10mW/cm² within the effective irradiation area |
| Ultraviolet Radiation | ≤0.00001mW/cm² within the effective irradiation area (180nm < λ ≤ 400nm) |
| Noise | ≤45dB(A) |
| Power Supply | AC100~240V; 50/60Hz |
| External Size(W*D*H) | 475* 277*6mm |
| Packing Size(W*D*H) | 600*315*70mm |
| Net Weight | 1kg |
| Gross Weight | 2kg |
Manufacturer catalogue checked 2026-09-28.
