Brand: BIOBASE | Category: Medical Equipment

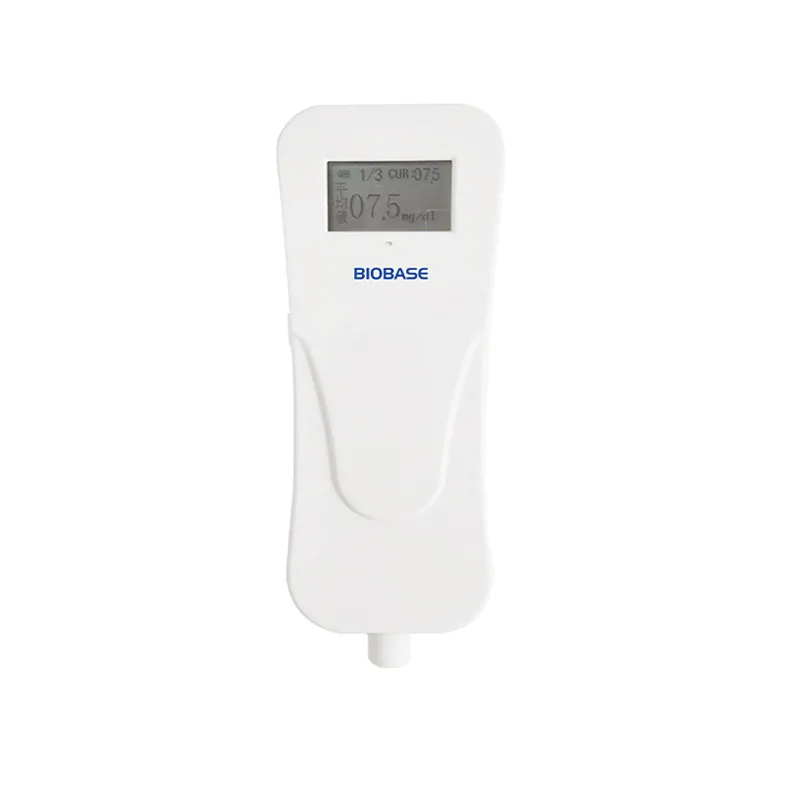

BIOBASE Jaundice Meter is listed in VVON's neonatal care equipment range for Bangladesh. Published models: BY-D-І, BY-D-II. Confirm the neonatal-care application, monitoring functions and required accessories. For a quotation, send the care application, required monitoring, accessories and installation location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BY-D-І | BY-D-II |
|---|---|---|
| Measuring Method | Light reflection | Light reflection |
| Light Source | Xenon flash | Xenon flash |
| Display | 1.6-inch LCD display | 2.2-inch LCD display |
| Measuring Range | 0.0~29.9mg/dL(0.0~425μmol/L) | 0.0~29.9mg/dL(0.0~425μmol/L) |
| Indication Error | 00~15±1(mg/dL) 16~25±1.5(mg/dL) | 00~15±1(mg/dL) 16~25±1.5(mg/dL) |
| Measuring Accuracy | RSD＜2% | RSD＜2% |
| Battery | 4 Triple A rechargeable nickel-metal hydride batteries | Built-in lithium battery |
| Measuring Times | 800 times after each full charge | 800 times after each full charge |
| Measuring Units | mg/dL; μmol/L | mg/dL; μmol/L(Simultaneous display) |
| Measuring Averages | 2~5 sets | 1~5 sets(Display both test values and averages) |
| Calibration Plate | White screen 00.0 or 00.1mg/dL Yellow screen 20.0±1mg/dL | White screen 00.0 or 00.1mg/dL Yellow screen 20.0±1mg/dL |
| Working Temp | 10~30℃ | 10~30℃ |
| Working Relative Humidity | ≤80% | ≤80% |
| Working Atmospheric Pressure | 75~106Kpa | 75~106Kpa |
| Storage Function | / | Stores up to 100 records |
| Power Supply | Input: AC100~240V, 50/60Hz Output: DC6.0V | Input: AC100~240V, 50/60Hz Output: DC5.0V |
| External Size(W*D*H) | 175*68*26mm | 168*62*26mm |
| Package Size(W*D*H) | 275*135*235mm(carton box) | 275*135*235mm(carton box) |
| Net Weight | 0.157kg(including batteries) 0.11kg(without battery) | 0.155kg |
| Gross Weight | 1.33kg | 1.33kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
