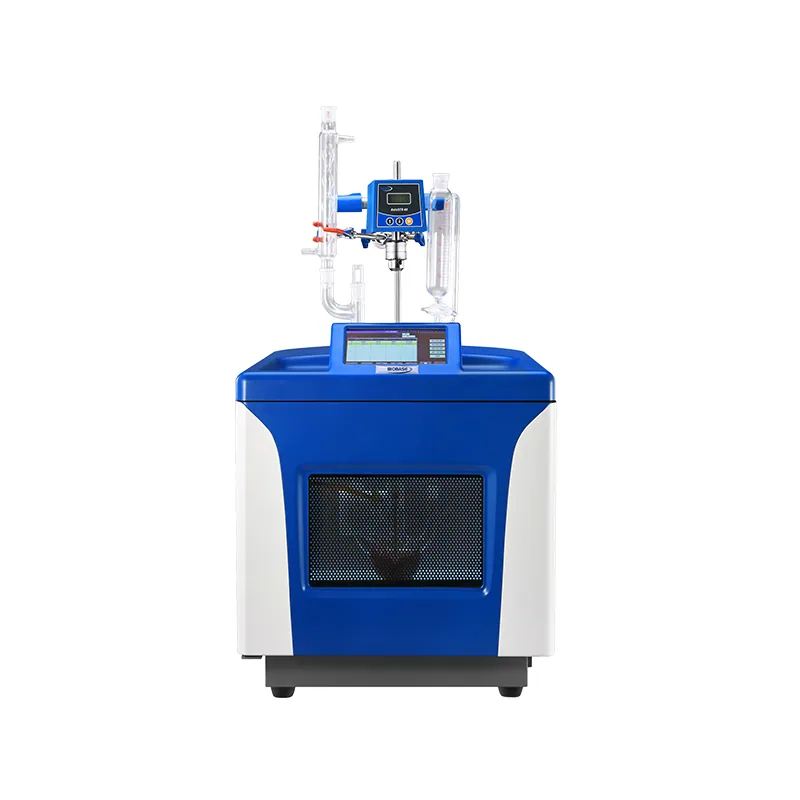

BIOBASE Multifunctional Microwave Chemistry Reaction Workstation
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Multifunctional Microwave Chemistry Reaction Workstation is listed in VVON's sample digestion & laboratory reactors range for Bangladesh. Published models: BMS-M2000. Match sample chemistry, vessels, working volume and operating conditions. For a quotation, send the sample chemistry, vessel type, volume, temperature and pressure requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMS-M2000 |
|---|---|
| Microwave Source | 2450MHz, 0~1000W, continuous, non-pulse and automatically adjustable along with the temperature program, PID technology |
| Microwave Oven Chamber | Large volume, 316L stainless steel chamber, applied with multi-layer anticorrosive PFA Teflon spray inside and outside |
| Temperature Measuring and Control System | Dual channel temperature detection DTD technology, switchable control. Infrared temperature sensor range 0~900℃, precision ±1℃, PT-100 resistor temperature sensor range 0~250℃, precision±1℃ |
| Pressure Measuring and Control System | Piezoelectric crystal pressure sensor, pressure control range: 0~5MPa (750psl), precision of ±0.01 MPa |
| Working Temperature | Standard configuration instrument's maximum operating temperature is 300℃ and the maximum theoretical operating temperature is 900℃(peculiar configuration). The standard maximum working temperature of high-pressure reaction is 230℃. |
| Working Pressure | The standard maximum working pressure of high-pressure reaction is 2 MPa, with constant pressure control valve, and constant pressure value of 2 MPa. |
| UV Light Source System | It can be equipped with two sets of ultraviolet light, with UV power of 300W and the dominant wavelength of 365nm (standard); UV power of 100W and the dominant wavelength of 254nm (optional) |
| Ultrasonic System | Immersion ultrasonic launcher, with adjustable scope of ultrasound power: 0~ 800W, frequency of 28KHZ, and automatic frequency sweeping and frequency locking |
| Stirring System | Digital constant speed mechanical stirring, with rotation speed of 30~1600r/min. It can realize real-time speed regulation and displays ±10r/grade, with torque of 300 N.m. It can stir clockwise or anticlockwise; Built-in magnetic stirring rotation speed of 0~800r/min, speed program is adjustable and of real-time display. |
| Software System | With Windows software and 7-inch color LCD touch screen, it can make accurate setting and real-time display of various parameters and curves, and can transmit the reaction parameters and curves by connecting with the computer, and record and realize the control or change of each reaction process unlimitedly; |
| Video System | Color image recording system is equipped, which can realize real-time display of reaction process through 7-inch color LCD screen. And it can realize the transmission and recording by connecting the computer. |
| Interface | USB2.0 Serial port |
| Exhaust System | Oven chamber is equipped with high-speed hot blast fan, with blast capacity of 3m3/min. 3-gear speed change will be made automatically according to the reaction situation |
| Atmospheric Pressure Reaction Vessel | Standard 50~1000ml high borosilicate glass reaction vessel and condensation, reflux, charging accessories, optional 2000ml high borosilicate glass vessel, optional 50~1000ml quartz reaction vessel |
| High Pressure Reaction Vessel | 100ml, 200ml and 500ml TFM high pressure digestion inner vessel, aerospace composite fiber explosion-proof outer vessel, high-strength alloy frame |
| Ambient Temperature/ Humidity | 0~40℃/15~80% RH |
| Power Supply | 220~240VAC 50/60Hz 9A |
| External Size(W*D*H) | 500*625*580mm |
| Package Size(W*D*H) | Main Unit: 740*630*730mm; Accessories: 590*500*410mm; 570*540*210mm |
| Gross Weight | Main Unit: 73kg; Accessories: 14kg; 6kg |
Manufacturer catalogue checked 2026-09-28.
