Brand: BIOBASE | Category: Scientific & Laboratory Equipment

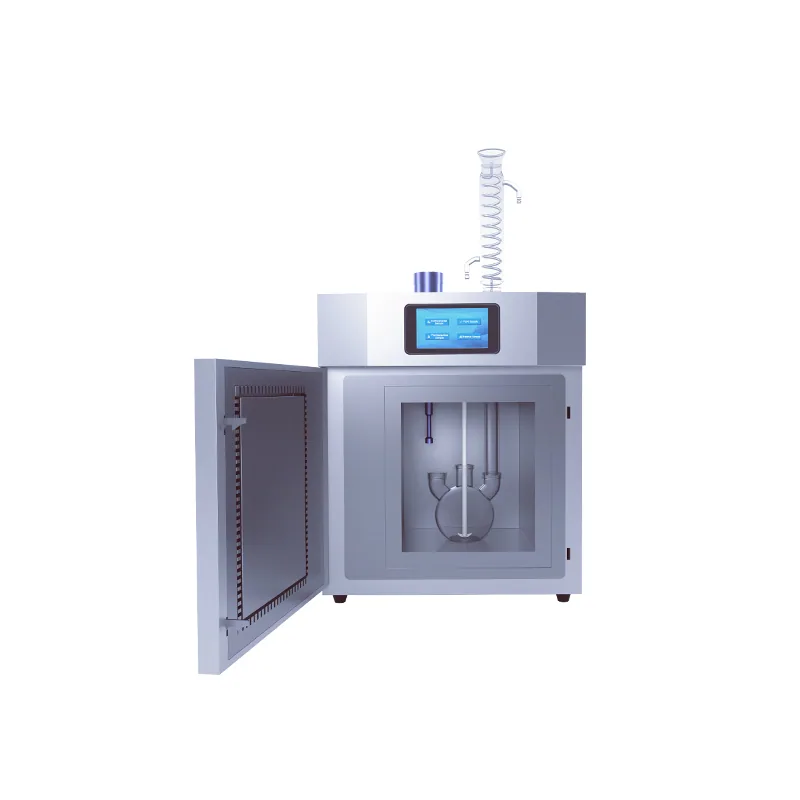

BIOBASE Microwave Ultrasonic Ultraviolet Synthesis and Extraction System is listed in VVON's sample digestion & laboratory reactors range for Bangladesh. Published models: BMS-U16E. Match sample chemistry, vessels, working volume and operating conditions. For a quotation, send the sample chemistry, vessel type, volume, temperature and pressure requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BMS-U16E |
|---|---|
| Microwave System | Microwave Frequency: 2450 MHz(Industrial-Grade Microwave) Microwave Power: 1000W(High-Frequency Closed-Loop Feedback PID) Microwave Ratio: Non-pulsed microwave linear output, with a control accuracy of ±1 W Adjustment Mode: Non-pulsed and continuously adjustable Microwave Simulation: 3D Stereoscopic Simulation of the Microwave Field Microwave Self-Tuning: Capable of automatically adjusting the process proportion Patented direct-coupled microwave excitation and waveguide design for enhancing microwave efficiency Microwave Impedance Adaptive Matching to Improve Microwave Transmission Efficiency |
| Microwave Oven Cavity | 316L industrial-grade stainless steel, integrally formed, without any welding marks, and with 6 layers of PFA anti-corrosion coating |
| Temperature Control System | Temperature Range: 0~300℃ Temperature Control Accuracy: ±1℃ Temperature Measurement Method: Contact temperature measurement with PT100 thermocouple |
| Ultrasonic System | Ultrasonic Power/Frequency: 50W/40KHz Ultrasonic Frequency: 25KHz. The ultrasonic probe can either be inserted into or remain outside the sample, and exert its effect on the sample through the cavitation effect or air transmission. |
| Ultraviolet Module | Can be matched with LED ultraviolet light source. Power: 0~100W, Adjustable Main Wavelength: 365nm |
| Stirring System | Stirring Mode: Magnetic Stirring Stirring Speed: 0~5V, infinitely and continuously adjustable |
| Air-Cooling System | Once the synthesis is completed, it automatically initiates turbine air-cooling. In conjunction with a high-power centrifugal fan, a vigorous wind convection is established within the cavity, enabling rapid cooling. |
| Original Wavefront Distribution System | Ainikesi*1 |
| Matched Molded Feed Waveguide | Ainikesi*1 |
| Precise Temperature Processing System | Ainikesi*1 |
| Coupled Inner Chamber | Austenitic Inner Chamber |
| Control System | Ainikesi-pro System Display Method: Touch screen and embedded human-machine interaction system |
| Functional Configuration | Coud-based automatic storage, real-time displays of power, current and temperature with control, real-time curves, USB cloud data export. Equipped with a 485 converter, enables CP connection. Offers 60 sets of process storage, each with 5 sections. Includes old-new process replacement mode and multiple working modes like manual, automatic and constant temperature. Automatically stops in case of instrument failure. |
| Protection Functions | Over-temperature alarm, over-current alarm, component self-check, automatic power-off protection in case of abnormal temperature or abnormal sensor. |
| Standard Accessories | 1000ml high-borosilicate glass three-neck flask, Flask base, Condensation reflux apparatus |
| Power Supply | AC220V, 50/60Hz(Standard);110V, 50/60Hz(Optional) |
| Consumption | 2100W |
| Package Size(W*D*H) | 700*500*700mm |
| Gross Weight | 50kg |
Manufacturer catalogue checked 2026-09-28.
