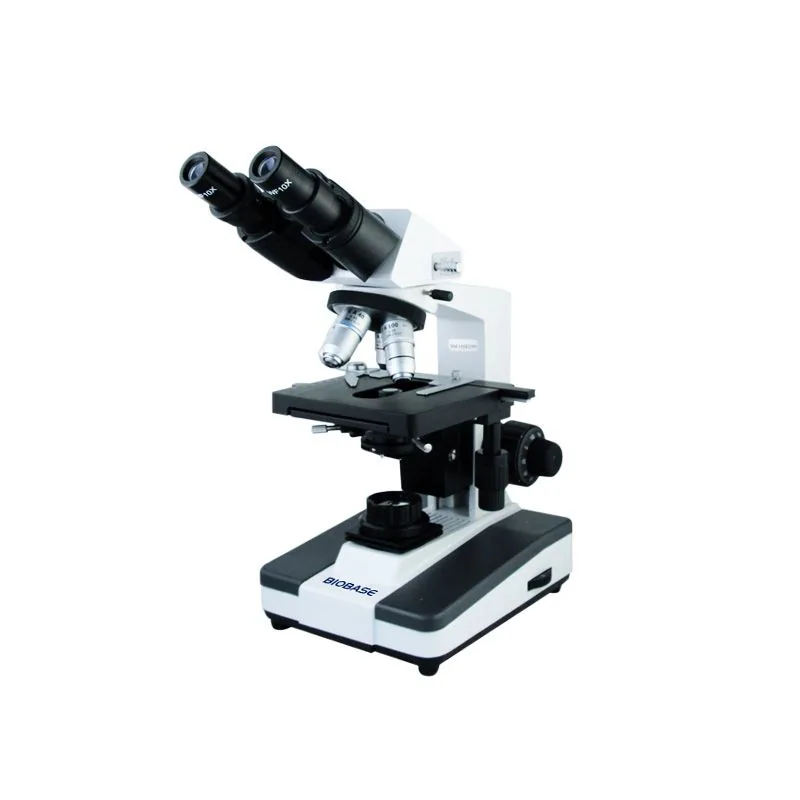

BIOBASE Medical Trinocular Biological Microscope BM-8C BM-8CA
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Medical Trinocular Biological Microscope BM-8C BM-8CA is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-8C, BM-8CA. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BM-8C | BM-8CA |
|---|---|---|
| View Head | Compensation free binocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm | Compensation free trinocular head, Inclined at 30°, 360° rotatable, Interpupillary 48~75mm |
| Eyepiece | WF10X/18mm, WF16X/11mm | WF10X/18mm, WF16X/11mm |
| Achromatic Objective | 4X N.A=0.10 WD=37.50mm | 4X N.A=0.10 WD=37.50mm |
| Achromatic Objective | 10X N.A=0.25 WD=7.31mm | 10X N.A=0.25 WD=7.31mm |
| Achromatic Objective | 40X N.A=0.65 WD=0.63mm | 40X N.A=0.65 WD=0.63mm |
| Achromatic Objective | 100X(Oil) N.A=1.25 WD=0.18mm | 100X(Oil) N.A=1.25 WD=0.18mm |
| Focusing | Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm | Coaxial Coarse & Fine Adjustable System, Range 30mm, Fine Division 0.002mm |
| Stage | Double Layers Mechanical Stage 140*140mm, Moving Range 75*40mm | Mechanical Stage 140*140mm, Moving Range 75*50mm, Vernier 0.1mm |
| Condenser | Abbe NA1.25 condenser with Iris Diaphragm & Filter | Abbe NA1.25 condenser with Iris Diaphragm & Filter |
| Illumination | LED dual-color light source, adjustable brightness | Halogen lamp 6V/20W, Kohler illumination, brightness adjustable |
| Filter | Blue, yellow, green | Blue, yellow, green |
| Power Supply | AC85~240V, 50/60Hz | AC85~240V, 50/60Hz |
| Package Size(W*D*H) | 355*265*495mm | 355*265*495mm |
| Gross Weight | 6kg | 7.5kg |
Manufacturer catalogue checked 2026-09-28.
