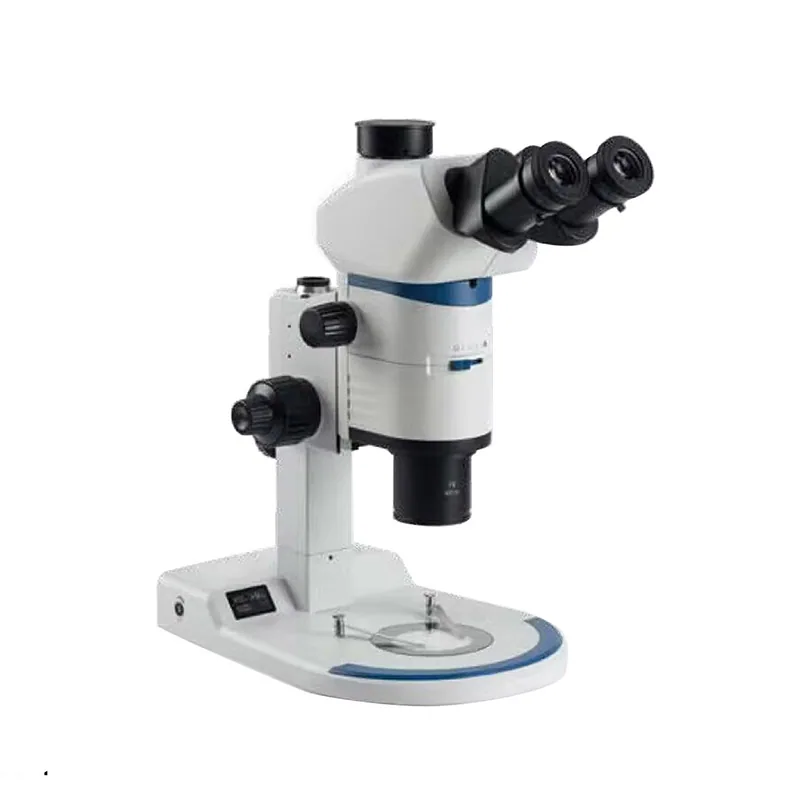

BIOBASE Stereo Microscope BM-12TC
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Stereo Microscope BM-12TC is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: BM-12TC. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BM-12TC | BM-12TC |
|---|---|---|
| Eyepiece | Working distance 80mm | Working distance 80mm |
| High eye point, large field of view, flat field eyepiece | Magnification | Field diameter |
| High eye point, large field of view, flat field eyepiece | 6.3x | 34.92mm |
| High eye point, large field of view, flat field eyepiece | 80x | 2.75mm |
| Zoom ratio | 12.5:1 | 12.5:1 |
| Total magnification | 6.3x-80x | 6.3x-80x |
| Interpupillary distance | 50-76mm | 50-76mm |
| Nosepiece | 2-port objective nosepiece for simultaneous mounting of 2 primary objectives | 2-port objective nosepiece for simultaneous mounting of 2 primary objectives |
| Body | Vertical arm type coarse and fine adjustment coaxial focusing mechanism, bracket lens body integrated, focusing stroke 50mm, fine adjustment accuracy 0.002mm | Vertical arm type coarse and fine adjustment coaxial focusing mechanism, bracket lens body integrated, focusing stroke 50mm, fine adjustment accuracy 0.002mm |
| Light source | Intermediate magnification 1.5X;; with 1/4 λ waveplates, 360-degree rotation;; 20W LED cold light source generator with brightness adjustment knob; ; with flexible dual optical fibers, length 1m | Intermediate magnification 1.5X;; with 1/4 λ waveplates, 360-degree rotation;; 20W LED cold light source generator with brightness adjustment knob; ; with flexible dual optical fibers, length 1m |
| Base | Ultra-thin base, multiple LEDs (total power 5W), base with color temperature display and brightness display (color temperature range: 3000-5600K) | Ultra-thin base, multiple LEDs (total power 5W), base with color temperature display and brightness display (color temperature range: 3000-5600K) |
| Base | Optional 1: Flat base, without light source, with φ100 black and white worktable | Optional 1: Flat base, without light source, with φ100 black and white worktable |
| Base | Optional 2: Base with transmissive oblique illumination (for use with external 5W LED (white light) fiber optic illumination), reflector can be switched 360° rotation (reflective and diffuse surface)Adjustable front and rear position | Optional 2: Base with transmissive oblique illumination (for use with external 5W LED (white light) fiber optic illumination), reflector can be switched 360° rotation (reflective and diffuse surface)Adjustable front and rear position |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
