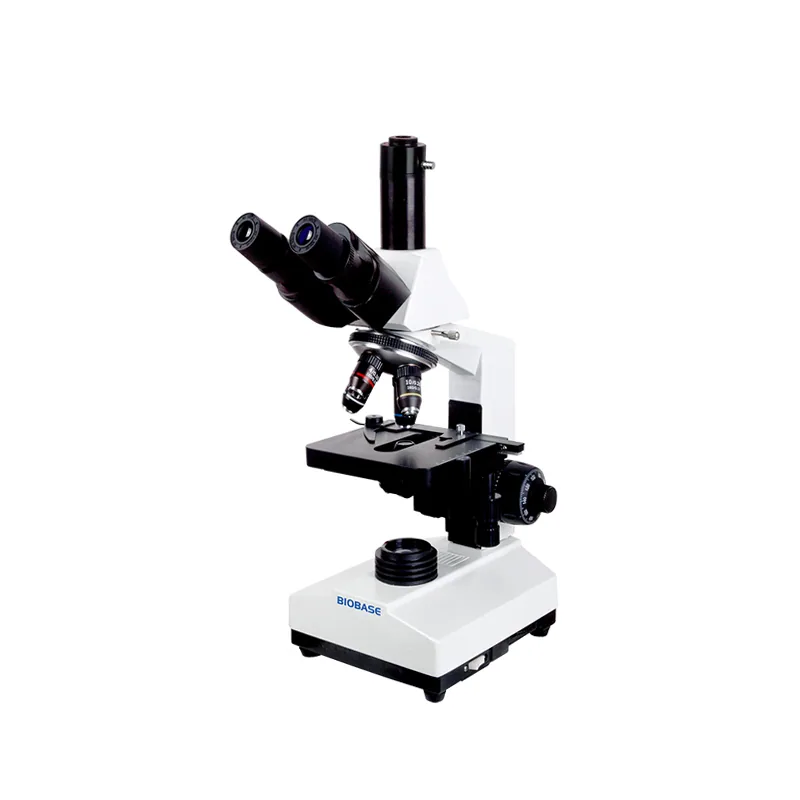

BIOBASE Laboratory Biological Microscope XSB-Series
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Laboratory Biological Microscope XSB-Series is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: XSB-301P, XSB-301B, XSB-102B, XSB-301A. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| ; | Specification | Model | Model | Model | Model |
|---|---|---|---|---|---|
| ; | Specification | XSB-301P | XSB-301B | XSB-102B | XSB-301A |
| Observation Head | Hinge-type 30° tilt binocular observation head | ; | ; | ; | ; |
| Observation Head | Hinge-type 30° tilt trinocular observation head | √ | √ | ; | ; |
| Observation Head | 45° tilt sliding binocular observation head | ; | ; | √ | ; |
| Observation Head | 45° tilt sliding trinocular viewing head | ; | ; | ; | √ |
| Nosepiece | Multi-roller four-aperture objective lens converter | √ | √ | √ | √ |
| Eyepiece | Wide-angle eyepiece: WF10X18 mm | √ | √ | √ | √ |
| Objective Lens | Plan achromat 4X, 10X, 40X(spring), 100X(spring, oil) | √ | ; | ; | ; |
| Objective Lens | Achromatic 4X, 10X, 40X(spring), 100X(spring, oil) | ; | √ | √ | √ |
| Stage | Double-layer mechanical platform 135*140mm | √ | √ | √ | √ |
| Condenser | Abbe NA1.25 condenser with aperture Variable aperture and filter, rack and pinion adjustment | √ | √ | √ | √ |
| Illumination | Built-in lighting | √ | √ | √ | √ |
| Power Supply | AC100~240V, 50/60Hz | √ | √ | √ | √ |
| Optional Accessories | Darkfield condenser, phase contrast kit | √ | √ | √ | √ |
| Package | Cardboard box with foam | √ | √ | √ | √ |
| Packing Size | 270*320*430mm | √ | √ | √ | √ |
| Gross Weight | 7kg | √ | √ | √ | √ |
Manufacturer catalogue checked 2026-09-28.
