Brand: BIOBASE | Category: Scientific & Laboratory Equipment

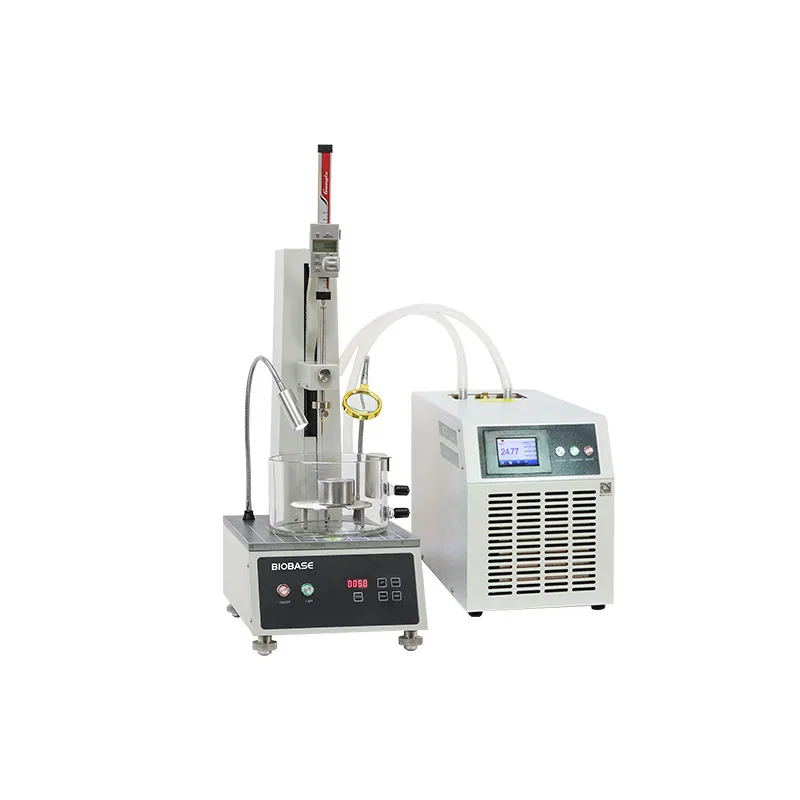

BIOBASE Low-Temperature Penetrometer BK-LTPF is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-LWB3, BK-LTPF. Published details include Bath Volume: 5L(Including external circulation 2L); Temperature Range: 5.0~60.0℃. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-LWB3 |
|---|---|
| Bath Volume | 5L(Including external circulation 2L) |
| Temperature Range | 5.0~60.0℃ |
| Temperature Accuracy | ±0.1℃(5.0~25.0℃) |
| Circulatory Water Quantity | 8L/min |
| Working Environment | Temperature: 15~35℃ Relative humidity: ≤85% |
| Consumption | 1200W |
| Power Supply | AC220V±10％, 50Hz |
| External Size(W*D*H) | 460*290*420mm |
| Net Weight | 22kg |
| Package Size(W*D*H) | 510*470*950mm |
| Gross Weight | 47kg |
| Model | BK-LTPF |
|---|---|
| Timing Controller | 5s , 8s, 10s, 12s, 30s or 60s can be selected; Bias within ±0.1s |
| Needle Holder | High accuracy digital display; Easy to use and observe; It can be moved to any position |
| Resolution | 0.01mm |
| Penetration Accuracy | ±1 penetration |
| Measurement Range | 0~600 penetration |
| The Length of Standard Needle | 50mm |
| The Weight of Standard Needle | 2.5g±0.05g |
| Sample Container | It meets the standard T0604-2011 |
| Counter Weight | 50g |
| Maximum Power Consumption | 100W |
| Power Supply | AC220V±10％, 50Hz |
| External Size(W*D*H) | 260*400*640mm |
| Net Weight | 13kg |
| Package Size(W*D*H) | 660*390*720mm |
| Gross Weight | 25kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
