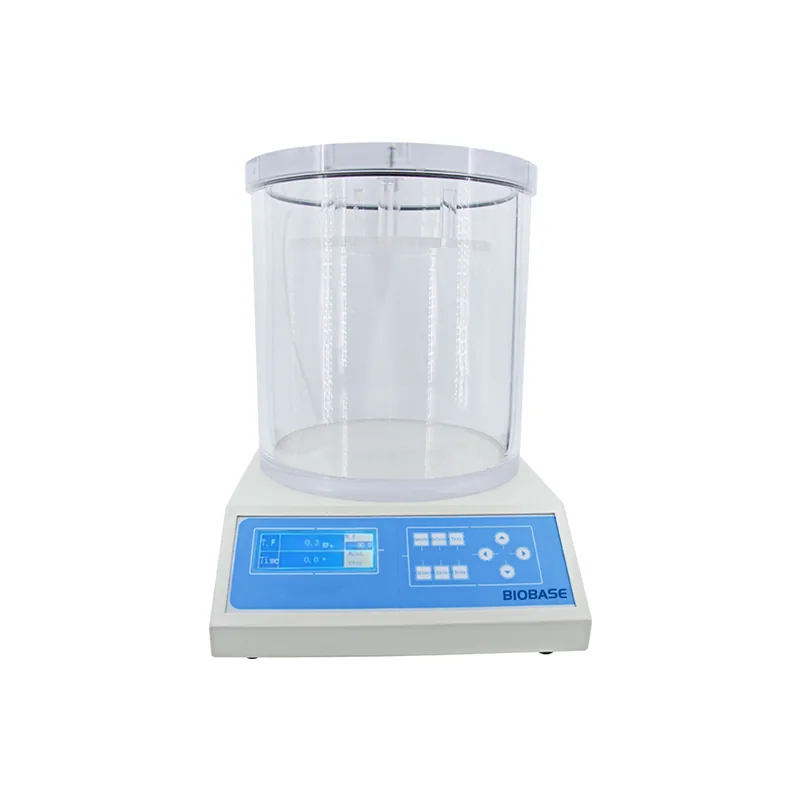

BIOBASE Leakage Tester-BK-ST134
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Leakage Tester-BK-ST134 is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-ST134. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-ST134 |
|---|---|
| Vacuum Degree Range | -90~0kPa |
| Vacuum Accuracy Class | Class 0.5 |
| Resolution | 0.1kPa |
| Pressure Acquisition Rate | 2ms |
| Pressure Replenishment Response Speed | 5ms |
| Original Air Pressure | 0.5~0.7MPa (User-supplied, optional) |
| Original Air Connection | Φ6 polyurethane pipes |
| Control Method | Microcomputer control, automatic test procedure |
| Display | LCD display |
| Vacuum Storage Time | 0~6000s(Can be enlarged) |
| Data Output Mode | Thermosensitive or needle type printer (Optional) |
| Effective Size of Vacuum Chamber | Standard: Φ270*210mm (H) Optional: Φ360*585mm (H) and Φ460*330mm (H) Note: customization is available for other sizes |
| Power Supply | AC 220V, 50/60Hz; 110V, 50/60Hz (Optional) |
| Standard Accessories | Main machine, vacuum chamber, air tube, compressed air filter, vacuum gas filter, power cord, technical documents |
| Optional Accessories | Air compressor |
| External Size (W*D*H) | Main machine: 420*320*120mm Vacuum chamber: 300*350mm (H) (Standard) |
| Package Size (W*D*H) | Main machine: 530*430*250mm Vacuum chamber: 370*370*420mm |
| Net Weight | 16kg |
| Gross Weight | 23kg |
Manufacturer catalogue checked 2026-09-28.
