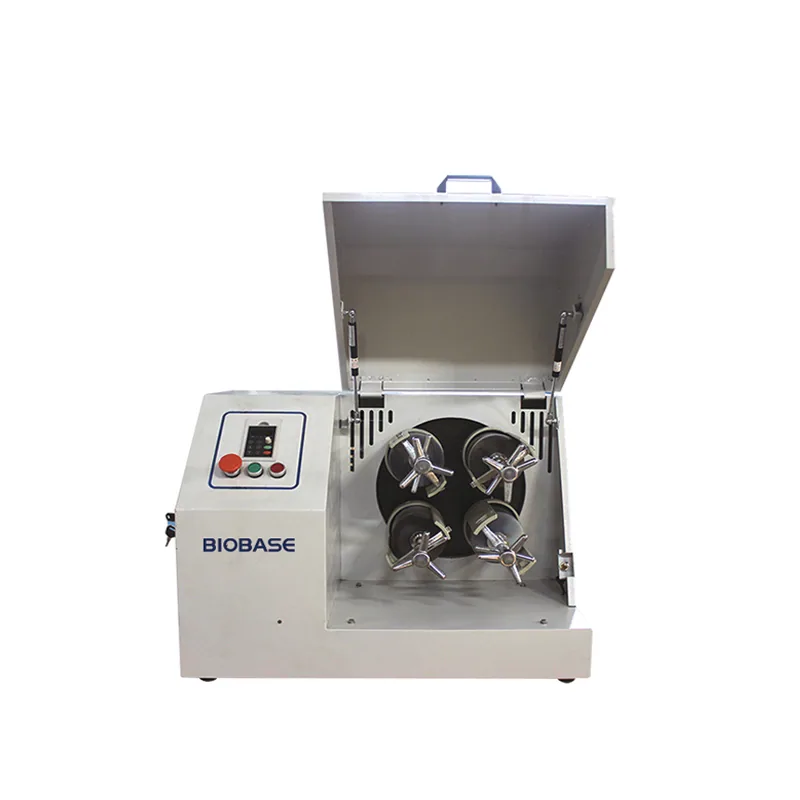

BIOBASE Light Horizontal Planetary Ball Mill
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Light Horizontal Planetary Ball Mill is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: BKBM-H2L. Published details include Capacity: 2L; Volume of Each Capacity: 50~500ml. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKBM-H2L |
|---|---|
| Capacity | 2L |
| Volume of Each Capacity | 50~500ml |
| Pot Quantity | 4pcs |
| Running Time Range | 1~9999min |
| Reciprocal Running Time | 1~999min |
| Adjustable Speed Revolution / Revolution | 35~335rpm |
| Adjustable Speed Revolution / Rotation | 70~670rpm |
| Noise | 60±5dB |
| Transmission Mode | Gear drive |
| Working Mode | 2 or 4 pots can be used each time |
| Maximum Sample Volume(Material+Grinding Ball) | 2/3 of the volume of the ball mill tank |
| Feed Size | Soft and Crispy material<10mm, Other materials<3mm |
| Out-put Granularity | Minimum Granularity can be reached to 0.1pm |
| Adjusting Mode of Rotate Speed | Frequency converter with stepless speed regulation |
| Speed Control Mode | Frequency control |
| Consumption | 0.75KW |
| Power Supply | AC110/220V±10%, 50/60Hz |
| External Size(W*D*H)mm | 700*570*520 |
| Package Size(W*D*H)mm | 800*610*670 |
| Net Weight(kg) | 86 |
| Gross Weight(kg) | 150 |
| Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. | Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately. |
| Category&Request of Grinding Material | Reference for Mill Pots' Material Option |
|---|---|
| Soil and other Materials which impurities are not allowed to be brought. | Agate Pot |
| Metal and non-metal materials which impurities are not allowed to be brought. | Zirconia Pot |
| High hardness materials like diamond, hard alloy. | Hard Alloy Pot |
| Strong acid and strong alkali substances, and materials under high temperature. | PTFE Mill Pot |
| Iron and steel minerals, impurities are not highly sensitive materials. | 304 Stainless Steel Mill Pot |
| Pigment material, and materials which can be processed at high temperature. | Nylon Mill Pot |
| Containing aluminum material like ceramic glaze. | Corundum Pot |
| Electronic material like lithium battery. | Polyurethane Mill Pot |
| Easily oxidized materials which need to be protected by special gas. | Vacuum Mill Pot |
Manufacturer catalogue checked 2026-09-28.
