Brand: BIOBASE | Category: Scientific & Laboratory Equipment

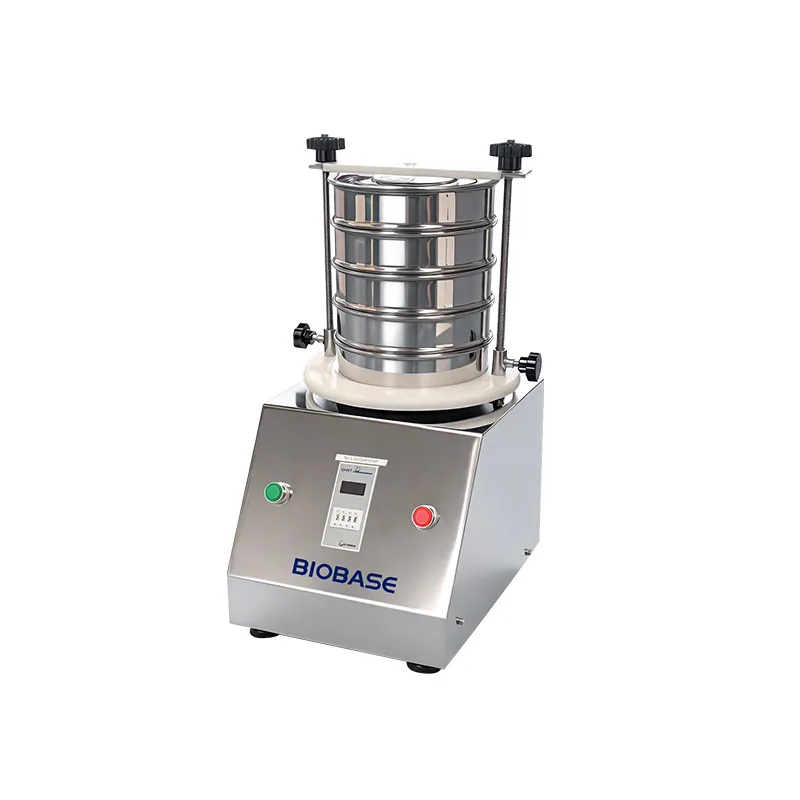

BIOBASE Laboratory Test Sieve BK-TS200 BK-TS200X BK-TS300 is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: BK-TS200, BK-TS200X, BK-TS300. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-TS200 | BK-TS200X | BK-TS300 |
|---|---|---|---|
| Working Layer | 1~7 layers(Including lid and base) | 1~7 layers(Including lid and base) | 1~7 layers(Including lid and base) |
| Screen Mesh Size | 0.003~12.5mm | 0.003~12.5mm | 0.003~12.5mm |
| Diameter | 200mm | 200mm | 300mm |
| Material | Stainless steel 304 | Stainless steel 304 | Stainless steel 304 |
| Timing Range | 0~99min59s | 0~99min59s | 0~99min59s |
| Speed | 1440r/min | 1440r/min | 1440r/min |
| Noise | ＜50dB | ＜50dB | ＜50dB |
| Power Consumption | 120W | 180W | 180W |
| Power Supply | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 60Hz(Optional) |
| Standard Accessory | Lid and base(Except BK-TS300) | Lid and base(Except BK-TS300) | Lid and base(Except BK-TS300) |
| External Size(W*D*H) | 400*300*370mm | 400*340*340mm | 470*380*370mm |
| Package Size(W*D*H) | 460*380*470mm | 490*420*590mm | 560*480*490mm |
| Net Weight | 30kg | 30kg | 40kg |
| Gross Weight | 35kg | 40kg | 42kg |
| Number of Mesh | Aperture(mm) | Number of Mesh | Aperture(mm) | Number of Mesh | Aperture(mm) |
|---|---|---|---|---|---|
| 2 | 12.5 | 45 | 0.4 | 220 | 0.065 |
| 3 | 8 | 50 | 0.355 | 240 | 0.063 |
| 4 | 6 | 55 | 0.315 | 250 | 0.061 |
| 5 | 5 | 60 | 0.28 | 280 | 0.055 |
| 6 | 4 | 65 | 0.25 | 300 | 0.050 |
| 8 | 3 | 70 | 0.224 | 320 | 0.045 |
| 10 | 2 | 75 | 0.2 | 325 | 0.043 |
| 12 | 1.6 | 80 | 0.18 | 340 | 0.041 |
| 14 | 1.43 | 90 | 0.16 | 360 | 0.040 |
| 16 | 1.25 | 100 | 0.154 | 400 | 0.0385 |
| 18 | 1 | 110 | 0.15 | 500 | 0.0308 |
| 20 | 0.9 | 120 | 0.125 | 600 | 0.026 |
| 24 | 0.8 | 130 | 0.112 | 800 | 0.022 |
| 26 | 0.71 | 140 | 0.105 | 900 | 0.020 |
| 28 | 0.68 | 150 | 0.100 | 1000 | 0.015 |
| 30 | 0.6 | 160 | 0.096 | 1800 | 0.010 |
| 32 | 0.58 | 180 | 0.09 | 2000 | 0.008 |
| 35 | 0.50 | 190 | 0.08 | 2300 | 0.005 |
| 40 | 0.45 | 200 | 0.074 | 2800 | 0.003 |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
