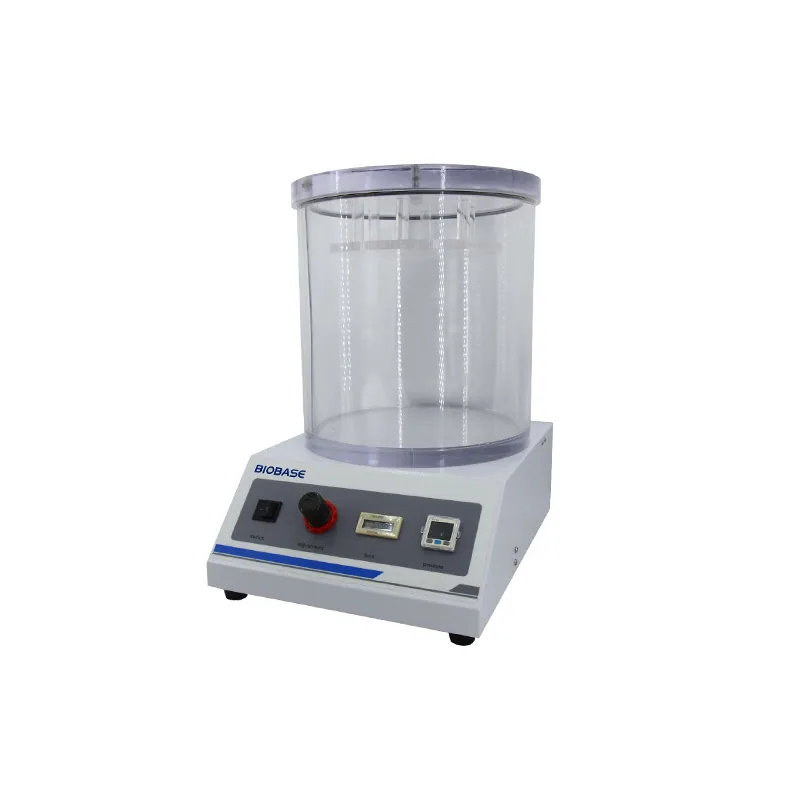

BIOBASE Leakage Tester BK-ST132 BK-ST130
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Leakage Tester BK-ST132 BK-ST130 is listed in VVON's mechanical testing instruments range for Bangladesh. Published models: BK-ST130, BK-ST132. Match specimen geometry, force range, method, grips and measurement requirements. For a quotation, send the material, specimen dimensions, test method, force range and fixtures. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-ST130 | BK-ST132 |
|---|---|---|
| Vacuum Degree Range | -90~0kPa | -90~0kPa |
| Vacuum Accuracy Class | Class 0.5 | Class 0.5 |
| Resolution | 0.1kPa | 0.1kPa |
| Original Air Pressure | 0.5~0.7MPa (User-supplied, optional) | 0.5~0.7MPa (User-supplied, optional) |
| Original Air Connection | Ф6 polyurethane pipes | Ф6 polyurethane pipes |
| Control Method | Manual adjustment, automatic timing | Microcomputer control, automatic test |
| Display | LED display | LED display |
| Vacuum Storage Time | 0~9999h59min59s | 0~9999s (Can be enlarged) |
| Effective Size of Vacuum Chamber | Standard: φ270*210mm (H) Optional: φ360*585mm (H), and φ460*330mm (H) Note: customization is available for other sizes | Standard: φ270*210mm (H) Optional: φ360*585mm (H), and φ460*330mm (H) Note: customization is available for other sizes |
| Power Supply | AC 220V, 50/60Hz; 110V, 50/60Hz (Optional) | AC 220V, 50/60Hz; 110V, 50/60Hz (Optional) |
| Standard Accessories | Main machine, vacuum chamber, air tube, compressed air filter, vacuum gas filter, power cord, technical documents | Main machine, vacuum chamber, air tube, compressed air filter, vacuum gas filter, power cord, technical documents |
| Optional Accessories | Air compressor | Air compressor |
| External Size (W*D*H) | Main machine: 420*320*120mm Vacuum chamber: 300*350mm (H) (Standard) | Main machine: 420*320*120mm Vacuum chamber: 300*350mm (H) (Standard) |
| Package Size (W*D*H) | Main machine: 530*430*250mm Vacuum chamber: 370*370*420mm | Main machine: 530*430*250mm Vacuum chamber: 370*370*420mm |
| Net Weight | 16kg | 16kg |
| Gross Weight | 23kg | 23kg |
Manufacturer catalogue checked 2026-09-28.
