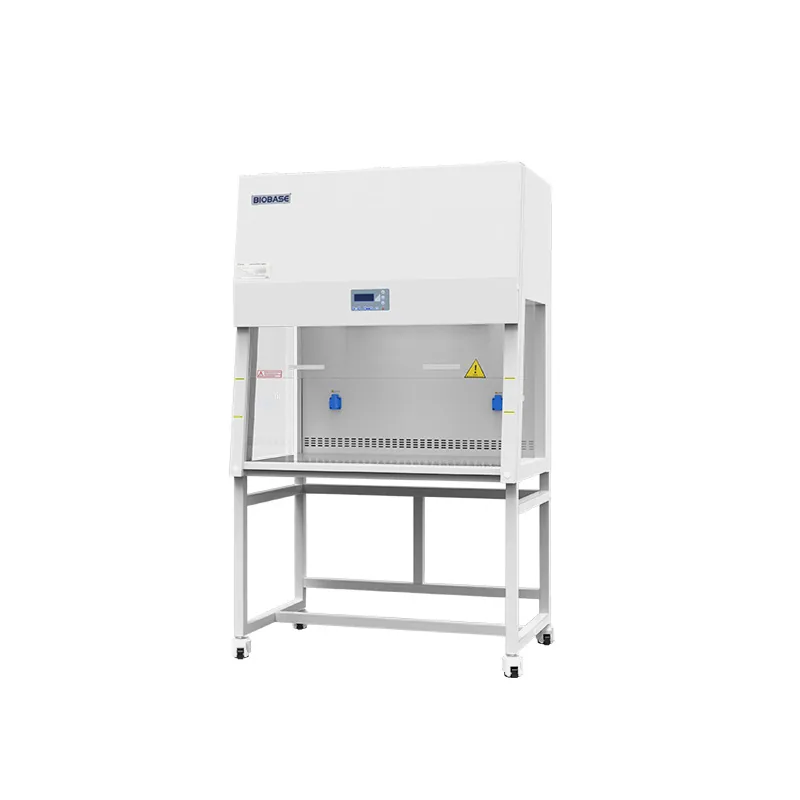

BIOBASE Laminar Flow Cabinet BBS-V1100-XF BBS-V1500-XF BBS-V1800-XF
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Laminar Flow Cabinet BBS-V1100-XF BBS-V1500-XF BBS-V1800-XF is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BBS-V1100-XF, BBS-V1500-XF, BBS-V1800-XF. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BBS-V1100-XF | BBS-V1500-XF | BBS-V1800-XF |
|---|---|---|---|
| Airflow Pattern | Vertical laminar flow, return air | Vertical laminar flow, return air | Vertical laminar flow, return air |
| Applicable Number of People | 1 | 2 | 3 |
| External Size(W*D*H) | 1100*710*1850mm | 1500*710*1850mm | 1800*710*1850mm |
| Instrument Size(W*D*H) | 1000*575*625mm | 1400*575*625mm | 1700*575*625mm |
| Work Surface Height | 750mm | 750mm | 750mm |
| Max Opening | 400mm | 400mm | 400mm |
| Air Velocity | 0.3~0.45m/s | 0.3~0.45m/s | 0.3~0.45m/s |
| Airflow Volume | 750m³/h | 750m³/h | 750m³/h |
| Noise | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
| LED Lamp | 12W*1 | 16W*1 | 16W*1 |
| UV Lamp | 20W*1 | 40W*1 | 40W*1 |
| Power Supply | 220V±10%, 50/60Hz; 110V±10%, 60Hz | 220V±10%, 50/60Hz; 110V±10%, 60Hz | 220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Consumption | 700W | 750W | 900W |
| HEPA Filter | 1pc | 1pc | 1pc |
| Gross Weight | 190kg | 240kg | 280kg |
| Package Size(W*D*H) | 1240*1050*1350mm | 1640*1050*1350mm | 1940*1050*1350mm |
Manufacturer catalogue checked 2026-09-28.
