Brand: BIOBASE | Category: Scientific & Laboratory Equipment

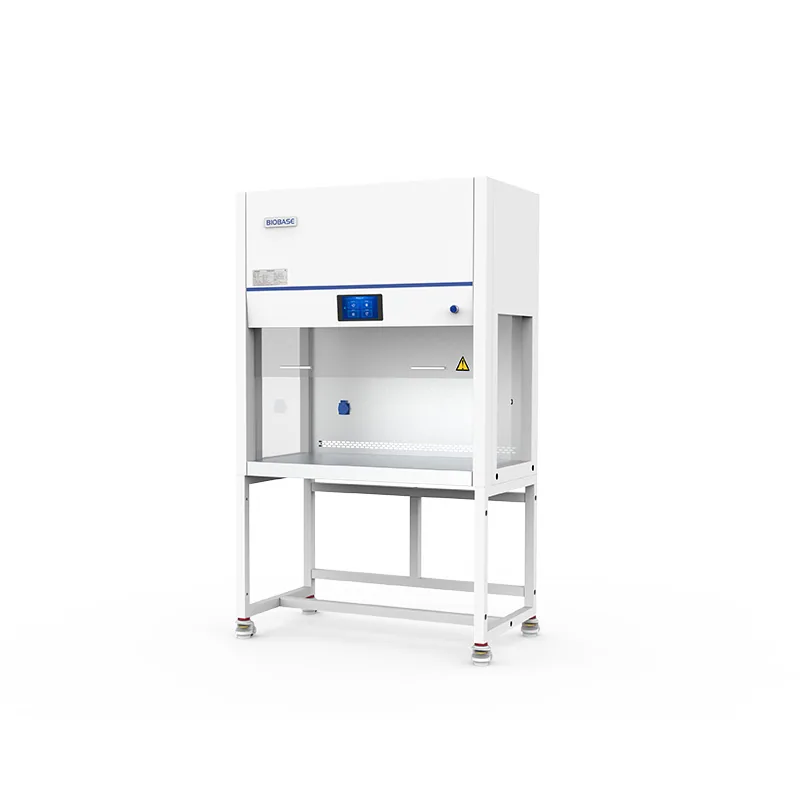

BIOBASE Vertical Laminar Flow Cabinet BKCB-V1100 BKCB-V1300 BKCB-V1500 is listed in VVON's laminar flow & clean-air equipment range for Bangladesh. Published models: BKCB-V1100, BKCB-V1300, BKCB-V1500. Match airflow arrangement, working dimensions and cleanliness requirements to the process. For a quotation, send the process, work area, airflow requirements and room layout. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKCB-V1100 | BKCB-V1300 | BKCB-V1500 |
|---|---|---|---|
| Flow Mode | Vertical flow | Vertical flow | Vertical flow |
| Number of Users | Single | 1~2 | 1~2 |
| Rated Power | 700VA(including operating area socket load 500VA) | 700VA(including operating area socket load 500VA) | 850VA(including operating area socket load 500VA) |
| Power Supply | 220V±10%, 50Hz(Standard); 110V±10%, 60Hz(Optional) | 220V±10%, 50Hz(Standard); 110V±10%, 60Hz(Optional) | 220V±10%, 50Hz(Standard); 110V±10%, 60Hz(Optional) |
| Airflow Velocity | 0.2m/s~0.45m/s | 0.2m/s~0.45m/s | 0.2m/s~0.45m/s |
| Noise | ≤65dB(A) | ≤65dB(A) | ≤65dB(A) |
| Lighting | ≥300lx | ≥300lx | ≥300lx |
| Vibration | ≤5μm(rms) | ≤5μm(rms) | ≤5μm(rms) |
| Safety | Colonies Number≤0.5CFU/30min | Colonies Number≤0.5CFU/30min | Colonies Number≤0.5CFU/30min |
| Clean Grade | ISO level 5(100 levels) | ISO level 5(100 levels) | ISO level 5(100 levels) |
| Filtration Efficiency | HEPA(H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995% | HEPA(H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995% | HEPA(H14) high efficiency filter, filtration efficiency for 0.3μm particle≥99.995% |
| Front Window Safety Height | 200mm | 200mm | 200mm |
| Max Opening | 350mm | 350mm | 350mm |
| Work Surface Height | 750mm(Customized) | 750mm(Customized) | 750mm(Customized) |
| Standard Accessory | LED lamp*2, UV lamp*2, Base stand, Waterproof socket*2 | LED lamp*2, UV lamp*2, Base stand, Waterproof socket*2 | LED lamp*2, UV lamp*2, Base stand, Waterproof socket*2 |
| Optional Accessory | Armrest*2, water tap, gas tap, electric height adjustable base stand | Armrest*2, water tap, gas tap, electric height adjustable base stand | Armrest*2, water tap, gas tap, electric height adjustable base stand |
| Net Weight | 190kg | 225kg | 235kg |
| Gross Weight | 248kg | 289kg | 308kg |
| External Size(W*D*H) | 1100*630*1860mm | 1300*630*1860mm | 1500*630*1860mm |
| Internal Size(W*D*H) | 1000*515*650mm | 1200*515*650mm | 1400*515*650mm |
| Package Size(W*D*H) | 1250*840*1420mm | 1450*840*1420mm | 1650*840*1420mm |
Manufacturer catalogue checked 2026-09-28.
