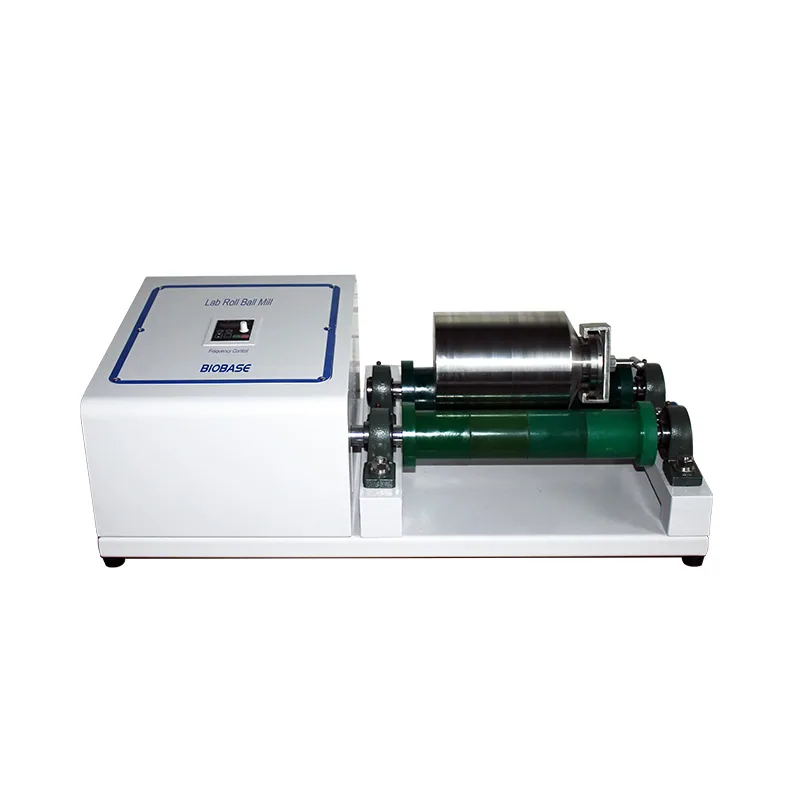

BIOBASE Laboratory Roller Ball Mill 0.5~15L
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Laboratory Roller Ball Mill 0.5~15L is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: BKBM-5, BKBM-15. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKBM-5 | BKBM-15 |
|---|---|---|
| Capacity | 0.5~5L | 0.5~15L |
| Pot Quantity | 1 | 1 |
| Spindle Speed Range | 60~570rpm±10 | 60~570rpm±10 |
| Effective Length of Roller Shaft | 260mm | 340mm |
| Adjustable Distance Between Roller Shafts | 120mm | 140mm |
| Single Station Distance | 260mm | 340mm |
| Maximum Load per Tank | 35kg | 80kg |
| Maximum Roller Speed | 570rpm | 570rpm |
| Optional Accessory / Ball Mill Tank | Roller stainless steel ball mill tank, roller corundum ball mill tank, roller nylon ball mill tank, roller polytetrafluoroethylene(ptfe) ball mill tank | Roller stainless steel ball mill tank, roller corundum ball mill tank, roller nylon ball mill tank, roller polytetrafluoroethylene(ptfe) ball mill tank |
| Optional Accessory / Grinding Ball | Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, cemented carbide balls, silicon nitride balls, high wear-resistant steel balls, manganese steel balls, nylon balls, cemented carbide, glass and other special metal materials | Stainless steel balls, zirconia balls, alumina balls, PU balls, steel carbon balls, tungsten balls, agate balls, cemented carbide balls, silicon nitride balls, high wear-resistant steel balls, manganese steel balls, nylon balls, cemented carbide, glass and other special metal materials |
| Consumption | 0.4KW | 0.75KW |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) |
| External Size(W*H*D) | 730*415*260mm | 845*435*270mm |
| Package Size(W*H*D) | 750*450*300mm | 850*450*300mm |
| Net Weight | 32kg | 43kg |
| Gross Weight | 45kg | 60kg |
| Note: Both the pots and balls are optional. Their materials are selected according to the customer's materials and requirements. The loadable material is 1/3 of the volume capacity, multiply the volume of the loadable material by the bulk density of the material to get the weight of the loadable material. | Note: Both the pots and balls are optional. Their materials are selected according to the customer's materials and requirements. The loadable material is 1/3 of the volume capacity, multiply the volume of the loadable material by the bulk density of the material to get the weight of the loadable material. | Note: Both the pots and balls are optional. Their materials are selected according to the customer's materials and requirements. The loadable material is 1/3 of the volume capacity, multiply the volume of the loadable material by the bulk density of the material to get the weight of the loadable material. |
Manufacturer catalogue checked 2026-09-28.
