Brand: BIOBASE | Category: Scientific & Laboratory Equipment

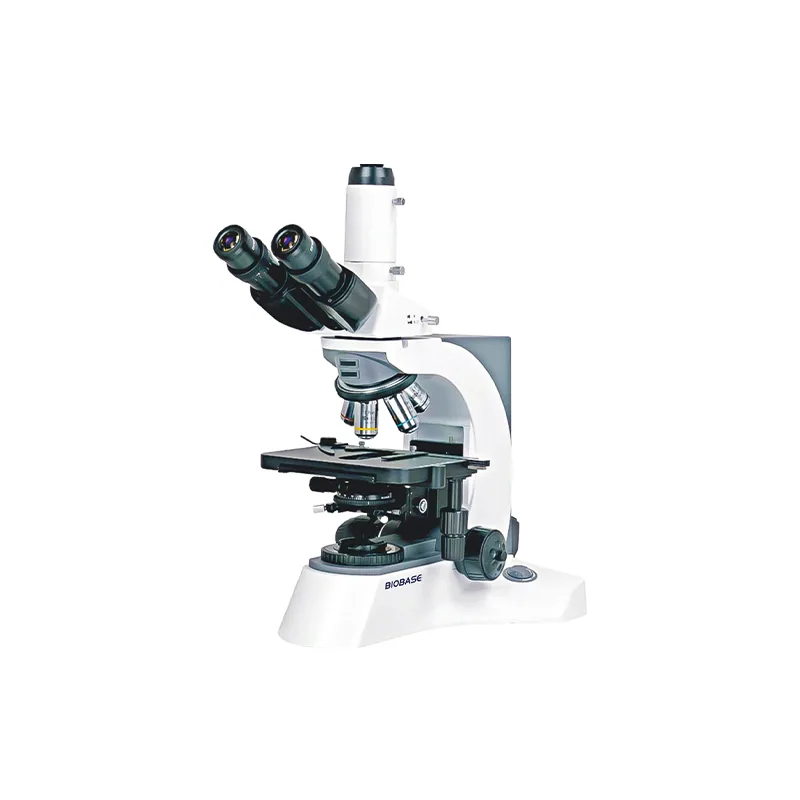

BIOBASE Laboratory Biological Microscope DM-800M is listed in VVON's microscopy & imaging systems range for Bangladesh. Published models: DM-800M. Match the specimen, contrast method, objectives and imaging accessories. For a quotation, send the sample type, observation method, magnification range and camera requirements. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DM-800M | DM-800M |
|---|---|---|
| Optical System | Infinite optical system | ● |
| Viewing Head | Seidentopf type trinocular head, inclined at 30℃,interpupillary 48-75mm | ● |
| Viewing Head | Tiltable binocular/trinocular head | ○ |
| Eyepiece | Extra wide field eyepiece EW10×/22, eyepiece tube diameter 30mm | ● |
| Nosepiece | Backward quintuple nosepiece | ● |
| Objective | Infinite plan achromatic objective 4×, 10×, 40×, 100× | ● |
| Objective | Infinite plan achromatic objective 20× | ○ |
| Condenser | Swing condenser NA 0.9.0.25 | ● |
| Focusing | Coaxial coarse and fine adjustment, fine division 0.001mm | ● |
| Stage | Double layers mechanical stage 185*142mm, moving range 75*55mm | ● |
| Kohler illumination | External illumination, aspherical collector, halogen lamp 6V/30W | ● |
| Kohler illumination | External illumination, aspherical collector, halogen lamp 24V/100W | ○ |
| Optional Accessories | Photo attachment, C mount 1×, C mount 0.5×, polarization attachment, turret phase contrast kit, dark field condenser(dry), dark field condenser(oil), epi-fluorescent attachment, temperature controlling stage | ○ |
| Power Supply | 220V/110V 50/60Hz | 220V/110V 50/60Hz |
| Packing Size | 430*384*606mm | 430*384*606mm |
| Gross Weight | 14kg | 14kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
