Brand: BIOBASE | Category: Scientific & Laboratory Equipment

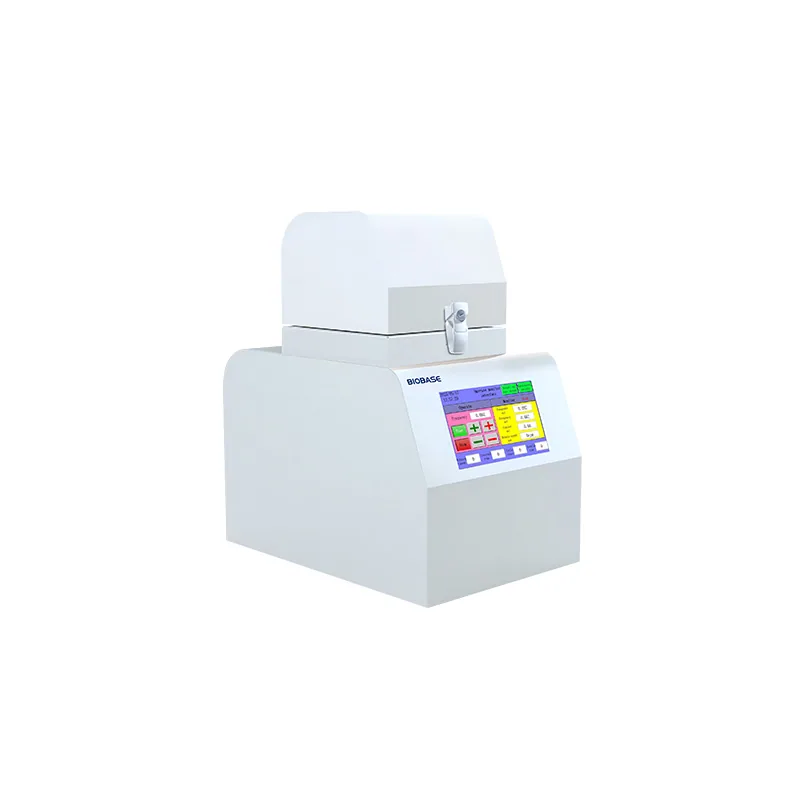

BIOBASE Grinding Machine is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: BK-24S, BK-48S, BK-96S, BK-96LS, BK-96LDS. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-24S | BK-48S | BK-96S | BK-96LS | BK-96LDS |
|---|---|---|---|---|---|
| Standard Capacity | 24*2ml PE adaptor, 1pc | 48*2ml PE adaptor, 1pc | 96*2ml PE adaptor, 1pc | 96*2ml PE adaptor, 1pc | 96*2ml PE adaptor, 1pc |
| Refrigerating Function | No | No | No | Yes, 0 to -50°C | Yes, 20 to -50°C |
| Display Mode | Touch screen display | Touch screen display | Touch screen display | Touch screen display | 5 inches OLED touch screen display |
| Discharging Granularity | ~5μm | ~5μm | ~5μm | ~5μm | ~5μm |
| Acceptable Number of Grinding Tubes | >2pcs | >2pcs | >2pcs | >2pcs | >2pcs |
| Frequency | 0~70Hz | 0~70Hz | 0~70Hz | 0~70Hz | 0~70Hz |
| Time Setting | 0s~99min | 0s~99min | 0s~99min | 0s~99min | 0s~99min |
| Grinding Ball Material and Size | Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; 0.1~30mm | Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; 0.1~30mm | Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; 0.1~30mm | Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; 0.1~30mm | Alloy steel, chromium steel, zirconia, tungsten carbide, quartz sand; 0.1~30mm |
| Noise Level | <55dB | <55dB | <55dB | <55dB | <55dB |
| Grinding Method | Wet grinding, dry grinding and low temperature grinding are all available | Wet grinding, dry grinding and low temperature grinding are all available | Wet grinding, dry grinding and low temperature grinding are all available | Wet grinding, dry grinding and low temperature grinding are all available | Wet grinding, dry grinding and low temperature grinding are all available |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
| Optional Parts | 1. Adaptor: Common type: 0.2ml*96; 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*4; 50ml*2; 5.0ml*24; 2.0ml*48 etc. Refrigerating type(Can get-196°C): 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*2; 50ml*2; etc. 2. 2~100ml refrigerating grinding tube. They can also be customized. | 1. Adaptor: Common type: 0.2ml*96; 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*4; 50ml*2; 5.0ml*24; 2.0ml*48 etc. Refrigerating type(Can get-196°C): 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*2; 50ml*2; etc. 2. 2~100ml refrigerating grinding tube. They can also be customized. | 1. Adaptor: Common type: 0.2ml*96; 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*4; 50ml*2; 5.0ml*24; 2.0ml*48 etc. Refrigerating type(Can get-196°C): 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*2; 50ml*2; etc. 2. 2~100ml refrigerating grinding tube. They can also be customized. | 1. Adaptor: Common type: 0.2ml*96; 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*4; 50ml*2; 5.0ml*24; 2.0ml*48 etc. Refrigerating type(Can get-196°C): 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*2; 50ml*2; etc. 2. 2~100ml refrigerating grinding tube. They can also be customized. | 1. Adaptor: Common type: 0.2ml*96; 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*4; 50ml*2; 5.0ml*24; 2.0ml*48 etc. Refrigerating type(Can get-196°C): 2.0ml*24; 5.0ml*12; 15ml*8; 25ml*2; 50ml*2; etc. 2. 2~100ml refrigerating grinding tube. They can also be customized. |
| Packing Size(W*D*H) | 480*350*510mm | 530*400*560mm | 570*490*680mm | 850*590*560mm | 550*550*950mm |
| Gross Weight | 25kg | 39kg | 52kg | 74kg | 95kg |
Manufacturer catalogue checked 2026-09-28.
