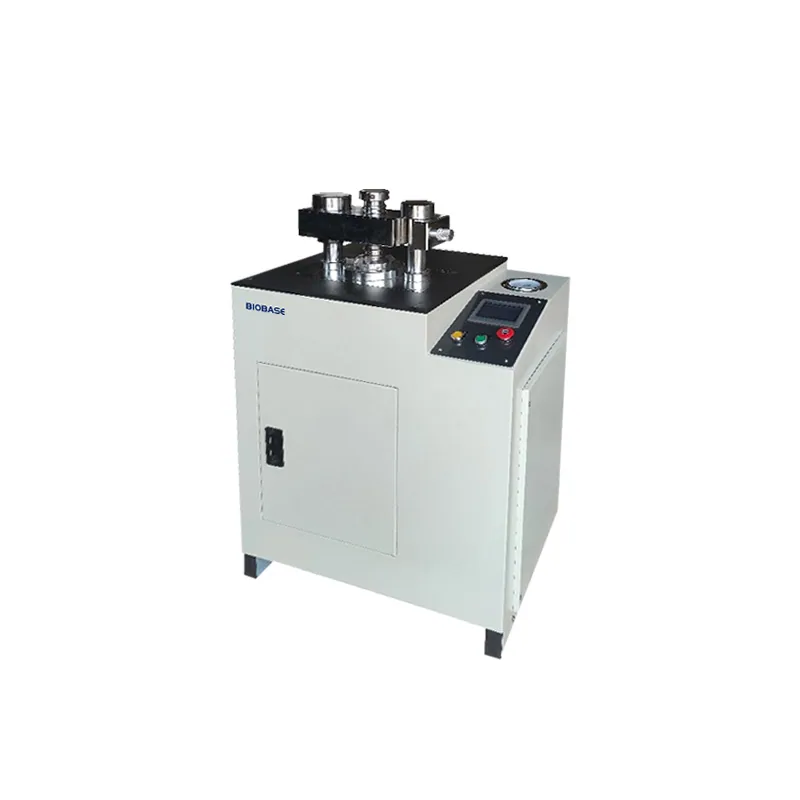

BIOBASE Automatic Pressing Machine BK-APM40
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Automatic Pressing Machine BK-APM40 is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: BK-APM40. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-APM40 |
|---|---|
| Control Method | Touch screen operation, PLC program control, sensor sensing pressure value |
| Mold Type (Need to confirm to choose which one in advance) | 1. Steel ring mold The sizes can be selected as follows (outer diameter*inner diameter*height): 40*34*14mm, 47*34*10mm, 51.5*34*10mm 2. Boric acid mold Outer diameter 40mm, detection surface diameter 34mm 3. Plastic ring mold The sizes can be selected as follows (outer diameter*inner diameter*height): 40*34*4.5mm (commonly used), 38*32*5mm, 32*28*4mm 29.2*24*4mm, 25.2*20*4mm, 19.2*14*4mm 4. Aluminum cup mold (outer diameter*inner diameter*height): 39.5*38*8mm |
| Max Pressure | 40T(400kN) |
| Optional Max Pressure | 30T/60T/80T/100T/120T |
| Holding Time | 0～999s adjustable |
| Internal Spacing of Columns | 210mm |
| Piston Stroke | 30mm |
| Equipment Dimensions | 750*520*1150mm |
| Equipment Weight | About 265kg |
| Power Supply | AC 380V±5%, 50Hz, three-phase, external air switch, no plug |
| Motor Power | 1.1KW |
| Usage Environment | Recommended use status: ambient temperature 1～40℃ |
| Packing Size | 880*880*1350mm |
| Gross Weight | 325kg |
Manufacturer catalogue checked 2026-09-28.
