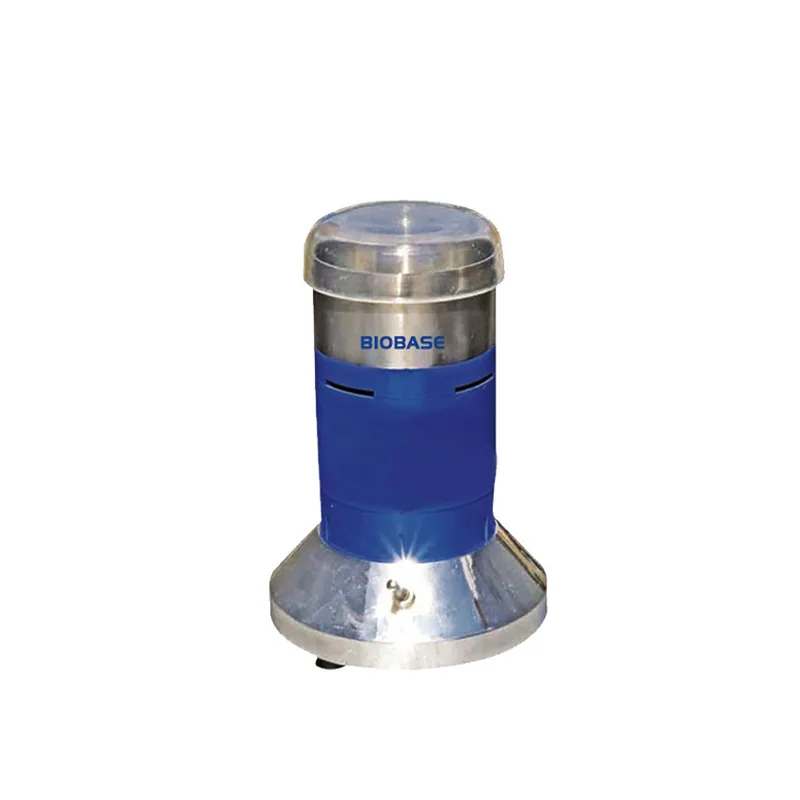

BIOBASE High-speed Universal Disintegrator
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE High-speed Universal Disintegrator is listed in VVON's mills sieves & solid sample preparation range for Bangladesh. Published models: HSD-80, HSD-100, HSD-200, HSD-400A. Match material properties, feed size, output size and contact materials. For a quotation, send the material, feed size, target particle size and batch volume. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | HSD-80 | HSD-100 | HSD-200 | HSD-400A |
|---|---|---|---|---|
| Speed(rpm) | 10000 | 26000 | 26000 | 26000 |
| Size of Grinding Room(mm) | Ø80*40 | Ø100*40 | Ø125*56 | Ø150*80 |
| Grinding(mesh) | 40~200 | 40~200 | 40~200 | 40~200 |
| Input Quantity(≤g/time) | 50 | 100 | 200 | 400 |
| Consumption | 200W | 800W | 800W | 1000W |
| Power Supply | AC220V, 50/60Hz | AC220V, 50/60Hz | AC220V, 50/60Hz | AC220V, 50/60Hz |
| External Size(W*D*H) | Ø110*210H | Ø160*320H | Ø160*360H | 230*190*420mm |
| Net Weight | 1.4kg | 3kg | 3kg | 9.3kg |
| Packing Size(W*D*H) | 260*190*185mm | 220*210*400mm | 220*210*430mm | 290*240*470mm |
| Gross Weight | 1.7kg | 3.5kg | 3.5kg | 10kg |
Manufacturer catalogue checked 2026-09-28.
