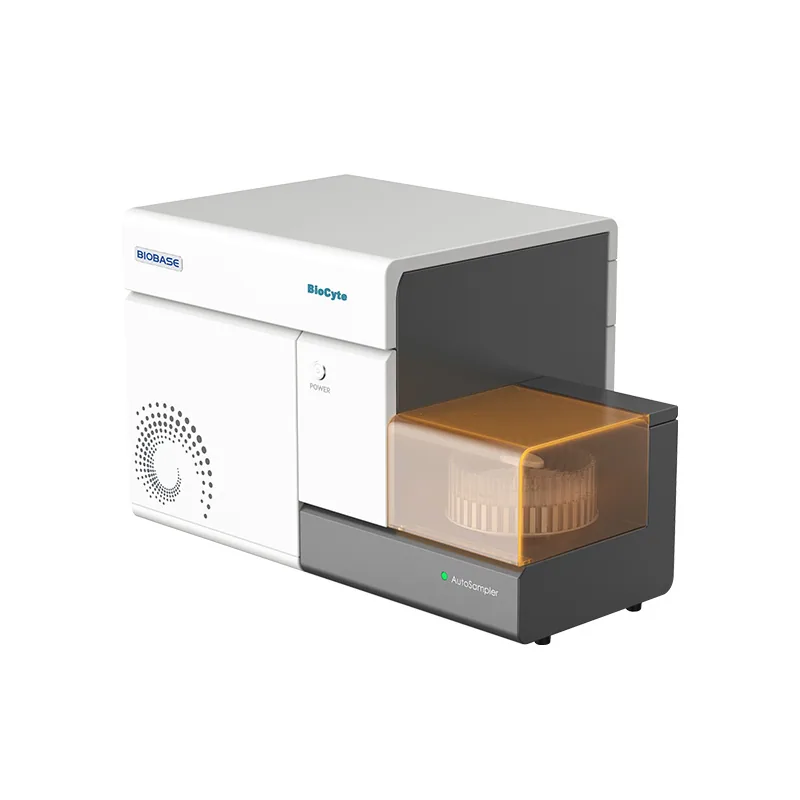

BIOBASE Flow Cytometer BioCyte-B5R3 BioCyte-B5R3V7
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Flow Cytometer BioCyte-B5R3 BioCyte-B5R3V7 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BioCyte-B5R3, BioCyte-B4R3V3, BioCyte-B5R3V7. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Item | Recommended Reagent | Application Department |
|---|---|---|
| Lymphocyte Subset T Analysis | CD45 CD4 CD3 CD8 | Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty |
| Lymphocyte Subset T/B/NK Analysis | CD45 CD3 CD16 CD56 CD19 | Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty |
| Absolute Count of CD4+T Lymphocyte | CD45 CD4 CD3 CD8 | CDC (AIDS) Infectious Disease Department |
| Cytokine Th1/Th2/Th17 Analysis | Th1: IL-2, IFN-γ, TNF-α Th2: IL-4, IL-6, IL-10 Th17: IL-17 | Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Organ Transplantation Respiratory Department |
| HLA-B27 Detection for AS | HLA-B27-FITC HLA-B7-PE IgG2a-FITC IgG1-PE | Department of Rheumatology and Immunology Orthopedics |
| DFI Analysis | Acridine orange (AO) Staining Solution | Reproductive Department Infertility Department Reproductive Medicine Centre |
| Laser Wavelength | Channel | Filter | Recommended Fluorescent Dyes | BioCyte-B5R3V7 | BioCyte-B4R3V3 | BioCyte-B5R3 |
|---|---|---|---|---|---|---|
| 488nm | BL1 | 525/40 | FITC, EGFP、BB515, Alexa Fluor 488 | ✓ | ✓ | ✓ |
| 488nm | BL2 | 575/30 | PE, DsRed | ✓ | ✓ | ✓ |
| 488nm | BL3 | 620/30 | PE-Texas Red, ECD, PE-CF594, PI, 7-AAD | ✓ | ; | ✓ |
| 488nm | BL4 | 697/60 | PerCP, PE-Cy5, PerCP-Cy5.5, PE-Cy5.5, BB700, PerCP-eFluor710 | ✓ | ✓ | ✓ |
| 488nm | BL5 | 780/60 | PE-Cy7, PE-Alexa Fluor 750 | ✓ | ✓ | ✓ |
| 638nm | RL1 | 670/20 | APC, Cy5, Alexa Fluor 647 | ✓ | ✓ | ✓ |
| 638nm | RL2 | 720/40 | APC-R700, Alexa Fluor 680, Alexa Fluor 700 | ✓ | ✓ | ✓ |
| 638nm | RL3 | 780/60 | APC-Cy7, APC-eFluor780, APC-H7 | ✓ | ✓ | ✓ |
| 405nm | VL1 | 425/20 | BV421 | ✓ | ; | ; |
| 405nm | VL2 | 460/40 | Pacific Blue, V450, BV480 | ✓ | ✓ | ; |
| 405nm | VL3 | 525/40 | BV51, V500 | ✓ | ✓ | ; |
| 405nm | VL4 | 605/40 | BV605 | ✓ | ✓ | ; |
| 405nm | VL5 | 660/40 | BV650 | ✓ | ; | ; |
| 405nm | VL6 | 720/40 | BV711 | ✓ | ; | ; |
| 405nm | VL7 | 780/60 | BV786, BV750 | ✓ | ; | ; |
| Model | BioCyte-B5R3 | BioCyte-B4R3V3 | BioCyte-B5R3V7 |
|---|---|---|---|
| Software | English/Chinese | English/Chinese | English/Chinese |
| PC | CPU i5/16G DDR4/1T hard disk+27 inches monitor | CPU i5/16G DDR4/1T hard disk+27 inches monitor | CPU i5/16G DDR4/1T hard disk+27 inches monitor |
| Power Supply | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz |
| External Size(W*D*H) | 530*450*470mm | 530*450*470mm | 530*450*470mm |
| Net Weight | 35kg | 35kg | 35kg |
| Packing Size(W*D*H) | Main Instrument: 860*575*720mm Accessories: 860*680*810mm Reagent: 380*280*320mm | Main Instrument: 860*575*720mm Accessories: 860*680*810mm Reagent: 380*280*320mm | Main Instrument: 860*575*720mm Accessories: 860*680*810mm Reagent: 380*280*320mm |
| Gross Weight | Main Instrument: 67kg Accessories: 53.5kg Reagent: 16kg | Main Instrument: 67kg Accessories: 53.5kg Reagent: 16kg | Main Instrument: 67kg Accessories: 53.5kg Reagent: 16kg |
Manufacturer catalogue checked 2026-09-28.
