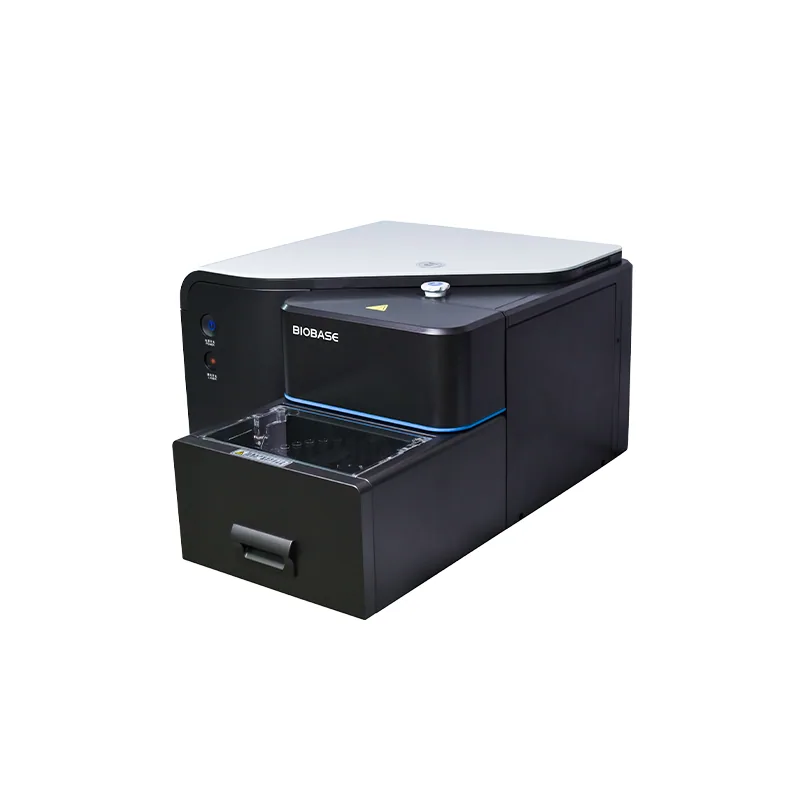

BIOBASE Flow Cytometer FlowCyte B7H FlowCyte B7
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Flow Cytometer FlowCyte B7H FlowCyte B7 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: FlowCyte B7H, FlowCyte B7. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Item | Recommended Reagent | Application Department |
|---|---|---|
| Lymphocyte Subset T Analysis | CD45 CD4 CD3 CD8 | Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty |
| Lymphocyte Subset T/B/NK Analysis | CD45 CD3 CD16 CD56 CD19 | Clinical Laboratory Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Pediatrics Blood Specialty |
| Absolute Count of CD4+T Lymphocyte | CD45 CD4 CD3 CD8 | CDC (AIDS) Infectious Disease Department |
| Cytokine Th1/Th2/Th17 Analysis | Th1: IL-2, IFN-γ, TNF-α Th2: IL-4, IL-6, IL-10 Th17: IL-17 | Infectious Disease Department Oncology Department Department of Rheumatology and Immunology Department of Organ Transplantation Respiratory Department |
| HLA-B27 Detection for AS | HLA-B27-FITC HLA-B7-PE IgG2a-FITC IgG1-PE | Department of Rheumatology and Immunology Orthopedics |
| DFI Analysis | Acridine orange (AO) Staining Solution | Reproductive Department Infertility Department Reproductive Medicine Centre |
| Model | FlowCyte B7H | FlowCyte B7 |
|---|---|---|
| Laser | 488nm solid（60mW） | 488nm solid（60mW） |
| Detector | FSC, SSC, FL1-FL5 | FSC, SSC, FL1-FL5 |
| Fluorescence Channel | FL1:525/50（FITC） FL2:585/40（PE） FL3:630/30（PE-Texas Red/ECD/PI） FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5） FL5:780/60（PE-Cy7） | FL1:525/50（FITC） FL2:585/40（PE） FL3:630/30（PE-Texas Red/ECD/PI） FL4:697/60（PerCP/PE-Cy5/PE-Cy5.5） FL5:780/60（PE-Cy7） |
| Fluorescence Sensitivity | FITC≤50 MESF, PE≤30MESF | FITC≤50 MESF, PE≤30MESF |
| Fluorescence Linearity | ≥0.99 | ≥0.99 |
| FSC Sensitivity | ≤1μm | ≤1μm |
| Test Particle Size | 0.2~50μm | 0.2~50μm |
| Carry Over | ≤0.5% | ≤0.5% |
| Instrument CV | FSC and all FL channel CV less than 2% | FSC and all FL channel CV less than 2% |
| FSC and SSC CV | Can separate red blood cells and platelet, can separate white blood cells into 3 groups | Can separate red blood cells and platelet, can separate white blood cells into 3 groups |
| Test Speed | ≥46000 cells/s | ≥46000 cells/s |
| Minimum Sample Vol | 90μL | 90μL |
| Measure Range | Maximum Support 10⁷ | Maximum Support 10⁷ |
| Threshold | Double threshold, minimum cells fraction | Double threshold, minimum cells fraction |
| Fluorescence Compensation | Support auto online compensation, offline compensation and visualized compensation | Support auto online compensation, offline compensation and visualized compensation |
| Item Template | Support Item template, acquisition conditions/fluorescence compensation one-click use | Support Item template, acquisition conditions/fluorescence compensation one-click use |
| Intake Method | Manual intake Rotary wheel auto-sampling with auto-mixing function:32tests/wheel | Manual intake Rotary wheel auto-sampling with auto-mixing function:32tests/wheel |
| Liquid Storage Station | Sheath bottle, waste bottle, shutdown liquid bottle 2L, cleaning liquid bottle 0.5L | Sheath bottle, waste bottle, shutdown liquid bottle 2L, cleaning liquid bottle 0.5L |
| Software | English/Chinese | English/Chinese |
| PC | Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor | Dell（CPU i5/8G DDR4/1T hard disk）+Dell 27 inches monitor |
| Power Supply | AC220/110V±10%, 50/60Hz | AC220/110V±10%, 50/60Hz |
| Auto-sampler | / | 32-postions autosampler(Stanndard) |
| External Size(W*D*H) | 430*500*330mm | 650*500*330mm |
| Net Weight | 30kg | 35kg |
| Packing Size(W*D*H) | Main Instrument: 860*635*648mm Accessories: 860*680*810mm Reagent: 405*270*400mm | Main Instrument: 860*635*648mm Accessories: 860*680*810mm Reagent: 405*270*400mm |
| Gross Weight | Main Instrument: 56kg Accessories: 54kg Reagent: 16kg | Main Instrument: 56kg Accessories: 54kg Reagent: 16kg |
Manufacturer catalogue checked 2026-09-28.
