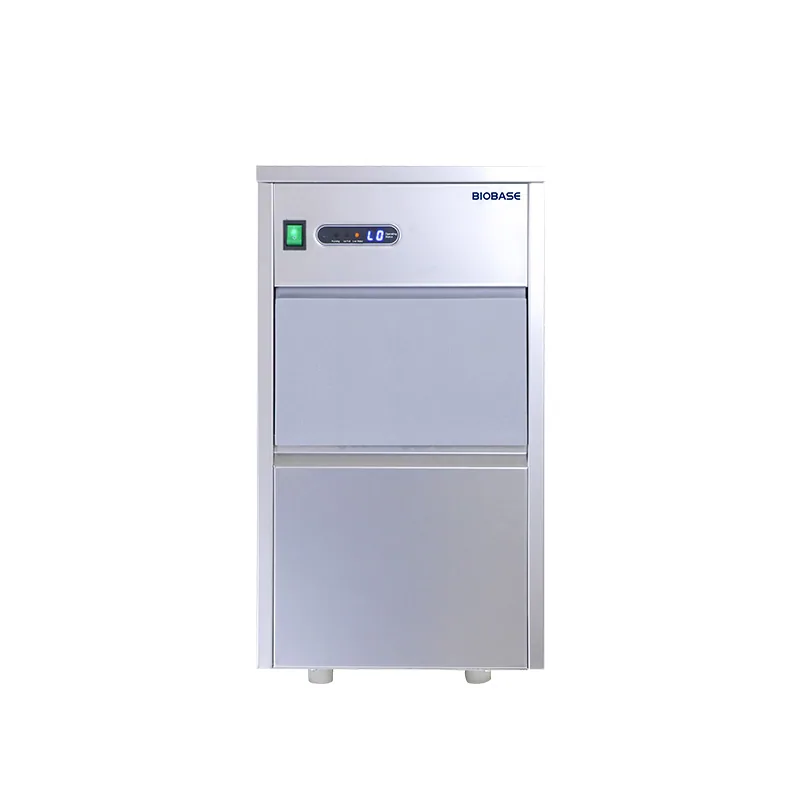

BIOBASE Flake Ice Maker FIM
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Flake Ice Maker FIM is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: FIM20, FIM30, FIM40, FIM50, FIM60, FIM70. Compare the remaining models in the specification tables. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | FIM20 | FIM30 | FIM30 | FIM40 | FIM50 | FIM60 | FIM60 | FIM70 | FIM85 | FIM100 | FIM120 | FIM150 | FIM150 | FIM200 | FIM200 | FIM250 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Ice Making Capacity(kg/24h) | 20 | 30 | 30 | 40 | 50 | 60 | 60 | 70 | 85 | 100 | 120 | 150 | 150 | 200 | 200 | 250 |
| Max. Ice Storage Capacity | 10kg | 10kg | 10kg | 15kg | 15kg | 25kg | 25kg | 25kg | 25kg | 40kg | 40kg | 40kg | 40kg | 60kg | 60kg | 60kg |
| Ice Shape | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice | Small particle of irregular snow ice |
| Input Current | 280W | 300W | 300W | 360W | 380W | 420W | 420W | 460W | 480W | 520W | 550W | 680W | 680W | 1040W | 1040W | 1100W |
| Way of Condensation | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling | Air cooling |
| Ambient Temperature | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ | 10~35℃ |
| Water Temperature | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ | 2~15℃ |
| Tank Shell | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
| Compressor | Donper | Donper | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | Panasonic Wanbao | Donper | Donper | Donper | Donper | Panasonic Wanbao | Panasonic Wanbao |
| Refrigerant | R290, 30g | R290, 30g | R290, 35g | R290, 35g | R290, 35g | R290, 35g | R290, 42g | R290, 42g | R290, 42g | R290, 55g | R290, 62g | R290, 62g | R290, 65g | R290, 65g | R290, 140g | R290, 140g |
| Standard Accessory | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 | Water inlet pipe*1, drainage pipe*1, ice spoon*1 |
| Optional Accessory | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter | Filter |
| Power Supply | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) | AC220V, 50/60Hz(Standard); 110V, 60Hz(Optional) |
| External Size(W*D*H) | 330*470*605mm | 330*470*605mm | 330*470*605mm | 400*543*700mm | 400*543*700mm | 400*510*845mm | 400*510*845mm | 400*510*845mm | 400*510*845mm | 500*611*950mm | 500*611*950mm | 500*611*950mm | 500*611*950mm | 680*740*1100mm | 680*740*1100mm | 680*740*1100mm |
| Package Size(W*D*H) | 460*595*740mm | 460*595*740mm | 460*595*740mm | 520*665*845mm | 520*665*845mm | 520*630*995mm | 520*630*995mm | 520*630*995mm | 520*630*995mm | 630*730*1110mm | 630*730*1110mm | 630*730*1110mm | 630*730*1110mm | 730*800*1270mm | 730*800*1270mm | 730*800*1270mm |
| Net Weight | 26kg | 26kg | 26kg | 36kg | 36kg | 42kg | 42kg | 42kg | 42kg | 58kg | 60kg | 60kg | 60kg | 80kg | 80kg | 80kg |
| Gross Weight | 42kg | 42kg | 42kg | 55kg | 55kg | 62kg | 62kg | 62kg | 62kg | 82kg | 82kg | 82kg | 82kg | 105kg | 105kg | 105kg |
| Applicable Area | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. | Various types of experiments, hospitals, schools, laboratories, medical, chemical applications, supermarkets, hotels and other seafood products stores etc. |
Manufacturer catalogue checked 2026-09-28.
