Brand: BIOBASE | Category: Scientific & Laboratory Equipment

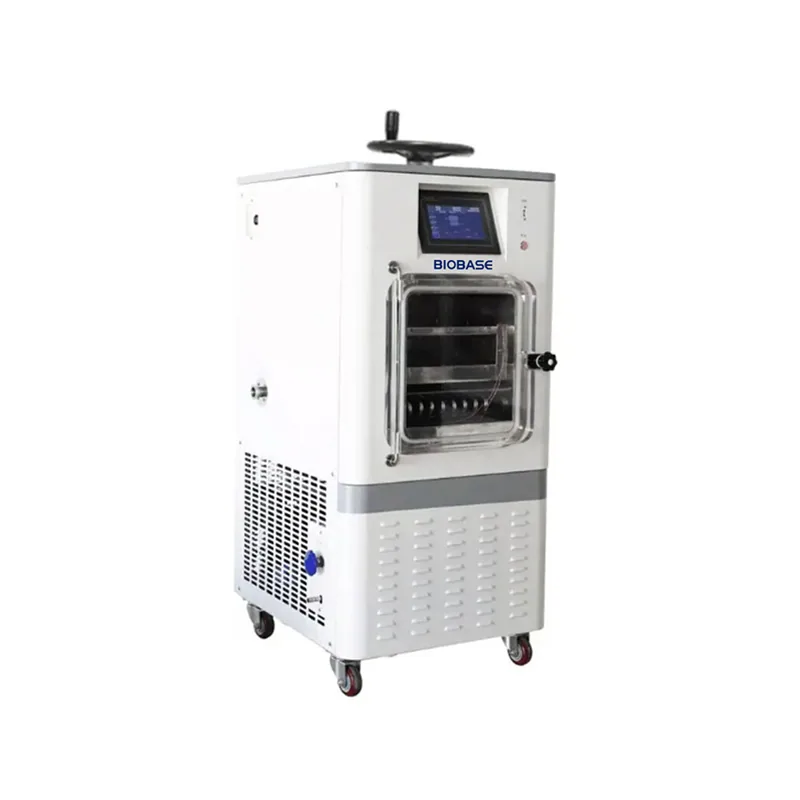

BIOBASE Electric Heating Cover Type Freeze Dryer(Customized) is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BKC-TL5COM(Customized). Published details include Shelf Temperature Range: -50℃~+70℃; Optional: -70℃~+70℃; Water Capture Capacity: ≥6kg/24h. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BKC-TL5COM(Customized) |
|---|---|
| Freeze Drying Area | 0.1㎡ |
| Shelf Size | 400*270mm |
| Material Tray Size | 395*265mm |
| Number of Material Trays | 1 |
| Plate Spacing | 70mm |
| Shelf Temperature Range | -50℃~+70℃; Optional: -70℃~+70℃ |
| Cold Trap Temperature | ≤-60℃(no load), optional ≤-80℃(no load) |
| Water Capture Capacity | ≥6kg/24h |
| Vacuuming Rate | 4L/s |
| Ultimate Vacuum | ≤5Pa(no load) |
| Installed Power | 2000W |
| Cooling Method | air cooling |
| Plate Material | 1L(material thickness 10mm) |
| Vial Quantity | Vial Ф12mm: 777 pieces |
| Vial Quantity | Vial Ф16mm: 434 pieces |
| Vial Quantity | Vial Ф22mm: 220 pieces |
| Net Weight | 210kg |
| Optional Functions | · Cold trap temperature -80℃; · Eutectic point tester; · Vacuum pump oil return prevention device; · Oil mist filtration system; · Vacuum adjustment system; · Automatic backfill/drainage system; · LYO-MEGA software system; · Mobile APP monitoring system; · Backfill filter; · External bottle hanging device; · Non-standard customization |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
