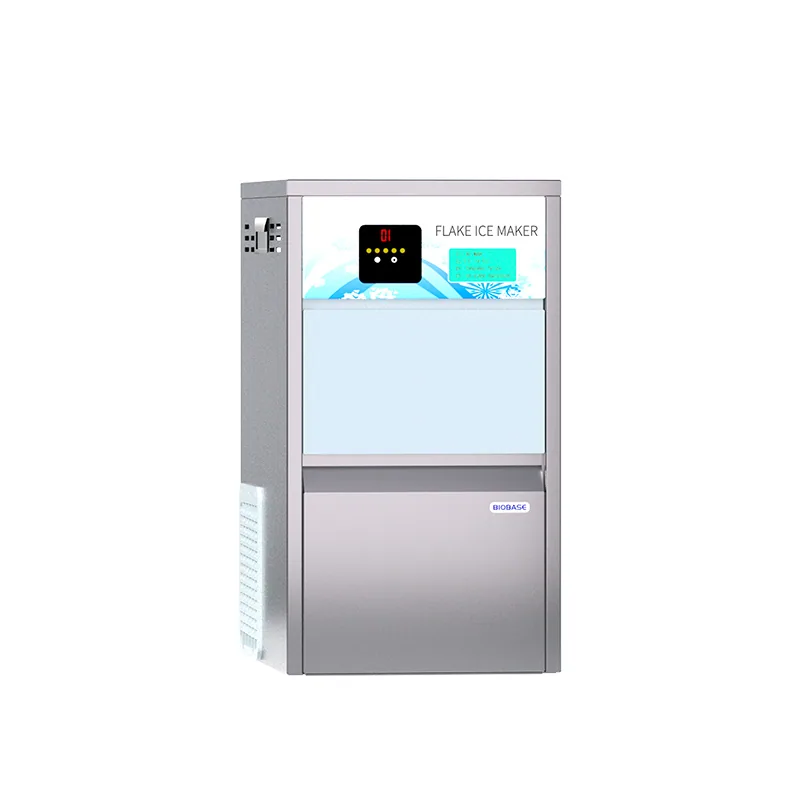

BIOBASE Flake Ice Maker 20kg 30kg 40kg 50kg 85kg 200kg 300kg

Brand: BIOBASE | Category: Scientific & Laboratory Equipment

BIOBASE Flake Ice Maker 20kg 30kg 40kg 50kg 85kg 200kg 300kg

BIOBASE Flake Ice Maker 20kg 30kg 40kg 50kg 85kg 200kg 300kg is listed in VVON's evaporators concentrators & freeze dryers range for Bangladesh. Published models: BK-IMS20, BK-IMS30, BK-IMS40, BK-IMS50, BK-IMS85, BK-IMS200. Compare the remaining models in the specification tables. Match sample volume, solvent, temperature and vacuum requirements. For a quotation, send the sample or solvent, batch size, temperature limits and vacuum accessories. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.

Model specifications

Compare each model column separately. Confirm options and included accessories in your quotation.

Manufacturer specifications
ModelBK-IMS20BK-IMS30BK-IMS40BK-IMS50BK-IMS85BK-IMS200BK-IMS300A
Ice Making Capacity20kg/24h30kg/24h40kg/24h50kg/24h85kg/24h200kg/24h300kg/24h
Max. Ice Storage Capacity10kg10kg15kg15kg20kg60kg128kg
Water Consumption≤1.2L/h≤1.2L/h≤1.2L/h≤1.2L/h≤1.2L/h≤1.5L/h≤2.0L/h
Ice ShapeSmall particle of irregular snow iceSmall particle of irregular snow iceSmall particle of irregular snow iceSmall particle of irregular snow iceSmall particle of irregular snow iceSmall particle of irregular snow iceSmall particle of irregular snow ice
Way of CondensationAir coolingAir coolingAir coolingAir coolingAir coolingAir coolingAir cooling
Ambient Temperature10~35℃10~35℃10~35℃10~35℃10~35℃10~35℃10~35℃
Water Temperature2~15℃2~15℃2~15℃2~15℃2~15℃2~15℃2~15℃
RefrigerantR290R290R290R290R290R290R290
Standard AccessoryWater inlet pipe*1, drainage pipe*1, ice spoon*1Water inlet pipe*1, drainage pipe*1, ice spoon*1Water inlet pipe*1, drainage pipe*1, ice spoon*1Water inlet pipe*1, drainage pipe*1, ice spoon*1Water inlet pipe*1, drainage pipe*1, ice spoon*1Water inlet pipe*1, drainage pipe*1, ice spoon*1Water inlet pipe*1, drainage pipe*1, ice spoon*1
Optional AccessoryFilterFilterFilterFilterFilterFilterFilter
Consumption300W300W420W420W480W900W1560W
Power SupplyAC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer)
External Size(W*D*H)330*480*620mm330*480*620mm400*535*740mm400*535*740mm420*527*925mm680*612*1100mmIce maker head: 560*620*620mm Ice storage bin: 560*820*1045mm
Package Size(W*D*H)470*610*860mm470*610*860mm530*660*1050mm530*660*1050mm600*710*1250mm750*815*1260mmIce maker head: 625*685*760mm Ice storage bin: 630*880*960mm
Net Weight28kg28kg43kg43kg50kg98kgIce maker head: 48kg Ice storage bin: 27kg
Gross Weight45kg45kg65kg65kg75kg110kgIce maker head: 55kg Ice storage bin: 35kg

Manufacturer catalogue checked 2026-09-28.

View on manufacturer website

Get a Quote

Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
