Brand: BIOBASE | Category: Scientific & Laboratory Equipment

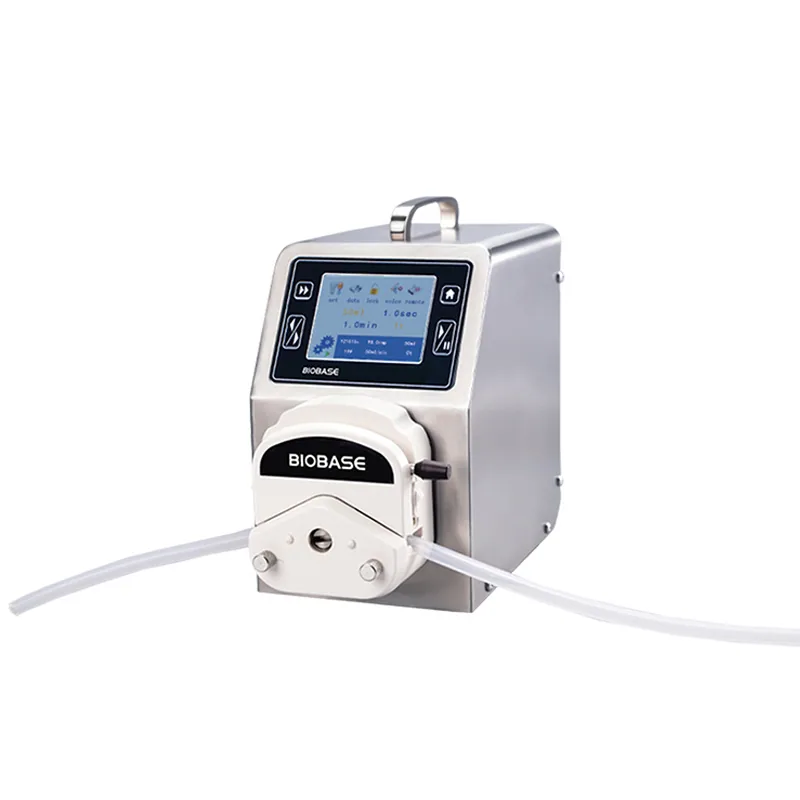

BIOBASE Dispensing Peristaltic Pump DPP Series is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: DPP-BT100FC, DPP-BT300FC, DPP-BT600FC. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DPP-BT100FC | DPP-BT300FC | DPP-BT600FC |
|---|---|---|---|
| Pump Head | YZ1515X, YZ2515X, DG series(only DPP-BT100FC) | YZ1515X, YZ2515X, DG series(only DPP-BT100FC) | YZ1515X, YZ2515X, DG series(only DPP-BT100FC) |
| Speed Range | 0.1~100rpm(Reversible) | 0.1~300rpm(Reversible) | 0.1~600rpm(Reversible) |
| Speed Resolution | 0.1rpm | 0.1rpm | 0.1rpm |
| Flow Range | 0.0015~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Filling Precision | <±0.5% | <±0.5% | <±0.5% |
| Display | LCD | LCD | LCD |
| Back Suction Angle | 10°~720° | 10°~720° | 10°~720° |
| Back Suction Speed | 10~100rpm | 10~300rpm | 10~300rpm |
| Optional Accessory | Foot switch | Foot switch | Foot switch |
| Environmental Conditions | Temperature: 0~40 °C; Humidity: < 80%, no condensation | Temperature: 0~40 °C; Humidity: < 80%, no condensation | Temperature: 0~40 °C; Humidity: < 80%, no condensation |
| Consumption | 22W | 35W | 50W |
| Power Supply | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Instrument Size(W*D*H) | 212*140*240mm | 212*140*240mm | 212*140*240mm |
| Package Size(W*D*H) | 363*253*353mm | 363*253*353mm | 363*253*353mm |
| Gross Weight | 6kg | 6kg | 6.9kg |
| Standard Peristaltic; Pump SPP Series | Standard Peristaltic; Pump SPP Series | Model | DPP-BT100FC | DPP-BT300FC | DPP-BT600FC |
|---|---|---|---|---|---|
| Standard Peristaltic; Pump SPP Series | Standard Peristaltic; Pump SPP Series | Speed Range; Tubing | 0.1~100rpm; (Reversible) | 0.1~300rpm; (Reversible) | 0.1~600rpm; (Reversible) |
| Pump Head&Single; Channel; Flow | YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.007~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Pump Head&Single; Channel; Flow | YZ2515x | 15#, 24# | 0.17~290ml/min | 0.17~870ml/min | 0.17~1740ml/min |
| Pump Head&Single; Channel; Flow | 2*YZ1515x | 13#, 14#, 19#, 16#, 25#, 17#, 18# | 0.007~380ml/min | 0.007~1140ml/min | 0.007~2280ml/min |
| Pump Head&Single; Channel; Flow | 2*YZ2515x | 15#, 24# | 0.17~290ml/min | 0.17~870ml/min | 0.17~1740ml/min |
| Pump Head&Single; Channel; Flow | DG-1(6) | 0.5*0.8, 1*1, 2*1, ; ; 2.4*0.8, 3*1 | 0.002~36ml/min | / | / |
| Pump Head&Single; Channel; Flow | DG-1(10) | 0.5*0.8, 1*1, 2*1, ; ; 2.4*0.8, 3*1 | 0.0015~27ml/min | / | / |
| Pump Head&Single; Channel; Flow | DG-2(6) | 0.5*0.8, 1*1, 2*1, ; ; 2.4*0.8, 3*1 | 0.002~36ml/min | / | / |
| Pump Head&Single; Channel; Flow | DG-2(10) | 0.5*0.8, 1*1, 2*1, ; ; 2.4*0.8, 3*1 | 0.0015~27ml/min | / | / |
| Pump Head&Single; Channel; Flow | DG-4(6) | 0.5*0.8, 1*1, 2*1, ; ; 2.4*0.8, 3*1 | 0.002~36ml/min | / | / |
| Pump Head&Single; Channel; Flow | DG-4(10) | 0.5*0.8, 1*1, 2*1, ; ; 2.4*0.8, 3*1 | 0.0015~27ml/min | / | / |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
