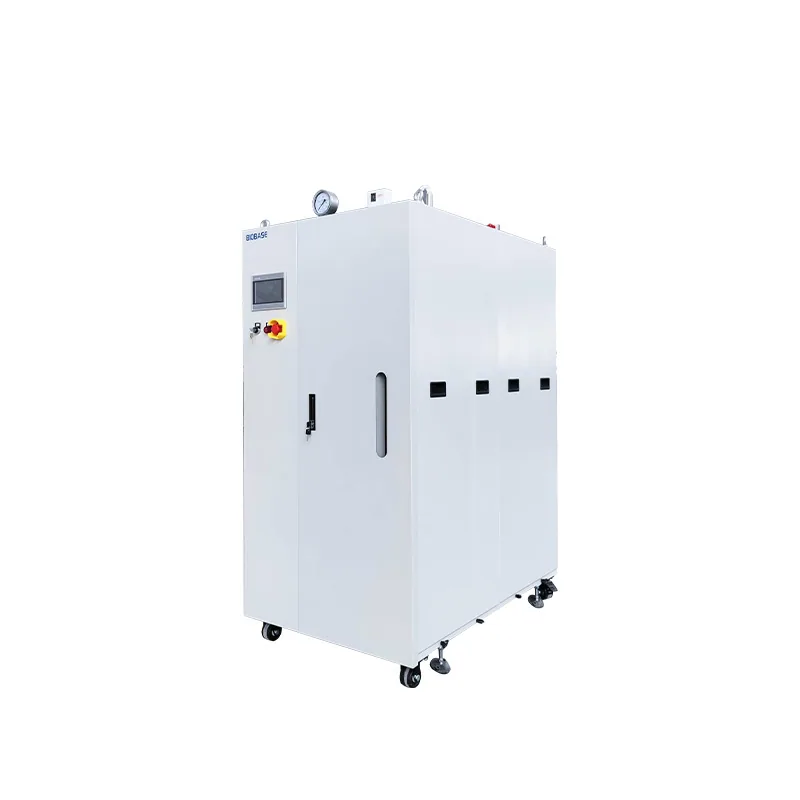

BIOBASE Electric Steam Generator
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE Electric Steam Generator is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: BK-ZFQ-96, BK-ZFQ-120. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-ZFQ-96 | BK-ZFQ-120 |
|---|---|---|
| Rated Steam Capacity | 120kg/h | 160kg/h |
| Rated Working Pressure | 0.65MPa | 0.65MPa |
| Rated Steam Temp | 168℃ | 168℃ |
| Water Volume | 23L | 23L |
| Electric Heating Power | 96KW | 120KW |
| Power Supply | 380V, 50Hz | 380V, 50Hz |
| External Size(W*D*H) | 1315*880*1790mm | 1315*880*1790mm |
| Packing Size(W*D*H) | 1480*1030*2110mm | 1480*1030*2110mm |
| Gross Weight | 385kg | 385kg |
Manufacturer catalogue checked 2026-09-28.
Get a Quote
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Useful details to share
- Intended application, process or teaching activity
- Required capability and equipment it must work with
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
