Brand: BIOBASE | Category: Scientific & Laboratory Equipment

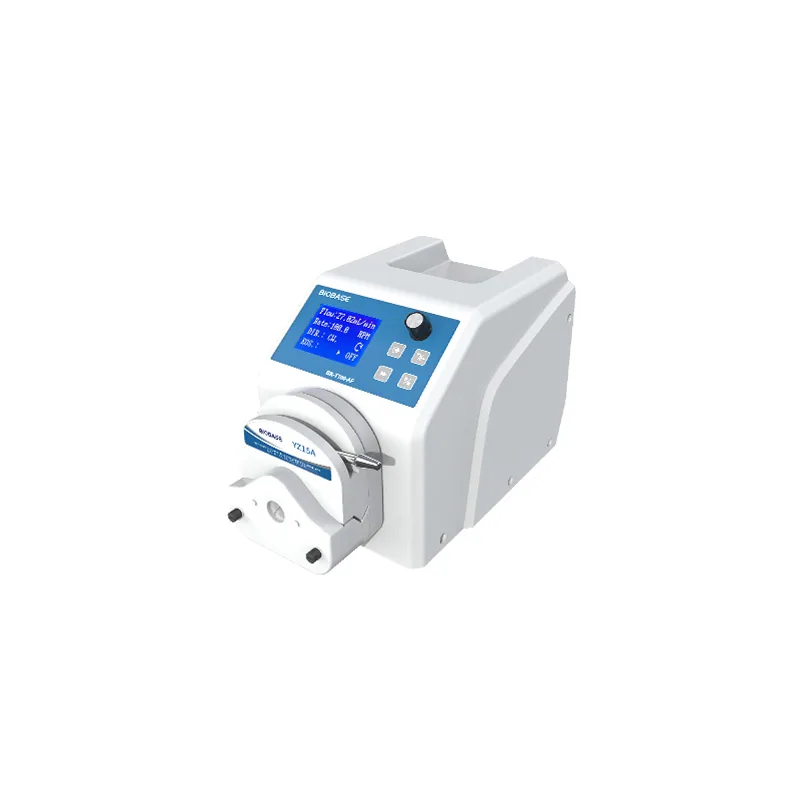

BIOBASE Dispensing Peristaltic Pump DPP-100-BF DPP-300-BF DPP-600-BF is listed in VVON's laboratory pumps & gas generators range for Bangladesh. Published models: DPP-100-BF, DPP-300-BF, DPP-600-BF. Match flow, pressure or vacuum, purity and connected-instrument requirements. For a quotation, send the connected instrument, flow, pressure or vacuum, purity and utilities. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | DPP-100-BF | DPP-300-BF | DPP-600-BF |
|---|---|---|---|
| Speed Range | 0.1~100rpm | 0.1~300rpm | 0.1~600rpm |
| Speed Resolution | 0.1rpm | 0.1rpm | 0.1rpm |
| Flow Range | 0.16μL/min~500mL/min | 1.6μL/min~1.5L/min | 0.052~3000ml/min |
| Dispensed Fluid Volume | 0.01mL~9.99L | 0.01mL~99.99L | 0.01mL~99.99L |
| Dispensed Number | 0~9999 | 0~9999 | 0~9999 |
| Dispensing Interval Time | 0.1s~99.9min | 0.1s~99.9min | 0.1s~99.9min |
| Suction Back Time | 0~99.9s | 0~99.9s | 0~99.9s |
| External Control Input | 4~20Ma, 0~5V, 0~10V, 0~10KHz flow control, forward and reverse, start and stop control | 4~20Ma, 0~5V, 0~10V, 0~10KHz flow control, forward and reverse, start and stop control | 4~20Ma, 0~5V, 0~10V, 0~10KHz flow control, forward and reverse, start and stop control |
| External Control Output | Start/stop, direction signal, speed signal | Start/stop, direction signal, speed signal | Start/stop, direction signal, speed signal |
| Power Supply | 90~264V, 50Hz/60Hz | 90~264V, 50Hz/60Hz | 90~264V, 50Hz/60Hz |
| Power | <40W | <60W | <140W |
| Working Condition | Ambient Temperature: 0~40℃; Relative Humidity: <80% | Ambient Temperature: 0~40℃; Relative Humidity: <80% | Ambient Temperature: 0~40℃; Relative Humidity: <80% |
| Protection Class | IP31 | IP31 | IP31 |
| Adjustable Pump Head | YZ15A, YZ25, YZII15, YZII25, DG-1, DG-2, DG-4 | YZ15A, YZ25, YZII15, YZII25, DG-1, DG-2, DG-4 | YZ15A, YZ25, YZII15, YZII25, DG-1, DG-2, DG-4 |
| Operation Method | Mechanical buttons and knob coding switches complete all operations | Mechanical buttons and knob coding switches complete all operations | Mechanical buttons and knob coding switches complete all operations |
| Direction Control | Reversible in both directions | Reversible in both directions | Reversible in both directions |
| Full Speed Function | Quick cleaning and emptying function | Quick cleaning and emptying function | Quick cleaning and emptying function |
| Back Suction Function | Prevent liquid from dripping | Prevent liquid from dripping | Prevent liquid from dripping |
| Display | 128*64 dot matrix Chinese character LCD displays all information | 128*64 dot matrix Chinese character LCD displays all information | 128*64 dot matrix Chinese character LCD displays all information |
| Communication Function | It has the function of communicating with the host computer or computer | It has the function of communicating with the host computer or computer | It has the function of communicating with the host computer or computer |
| Flow Function | It can deliver liquid according to the set flow rate | It can deliver liquid according to the set flow rate | It can deliver liquid according to the set flow rate |
| Distribution Function | Including the functions of dispensing liquid volume, dispensing times, time interval, etc. | Including the functions of dispensing liquid volume, dispensing times, time interval, etc. | Including the functions of dispensing liquid volume, dispensing times, time interval, etc. |
| Standard Accessories | YZ15A pump head, 2 meters of 14# pump tube | YZ15A pump head, 2 meters of 14# pump tube | YZ15A pump head, 2 meters of 14# pump tube |
| Optional Accessories | Foot switch, 4~20mA, 0~5V, 0~10V, 0~10KHz external control | Foot switch, 4~20mA, 0~5V, 0~10V, 0~10KHz external control | Foot switch, 4~20mA, 0~5V, 0~10V, 0~10KHz external control |
| External Size | 300*171*189mm | 300*171*189mm | 330*250*190mm |
| Net Weight | 3.2kg | 3.2kg | 5.0kg |
| Packing Size | 390*340*240mm | 390*340*240mm | 450*390*270mm |
| Gross Weight | 4.1kg | 4.1kg | 6.8kg |
Manufacturer catalogue checked 2026-09-28.
