Brand: BIOBASE | Category: Medical Equipment
BIOBASE Blood Gas Analyzer is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: PT1000, PT3, PT4L, PT4H, PT5, PT6E. Compare the remaining models in the specification tables. Published details include Sample Volume: 150μL; Storage Capacity: 100000+ tests. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.

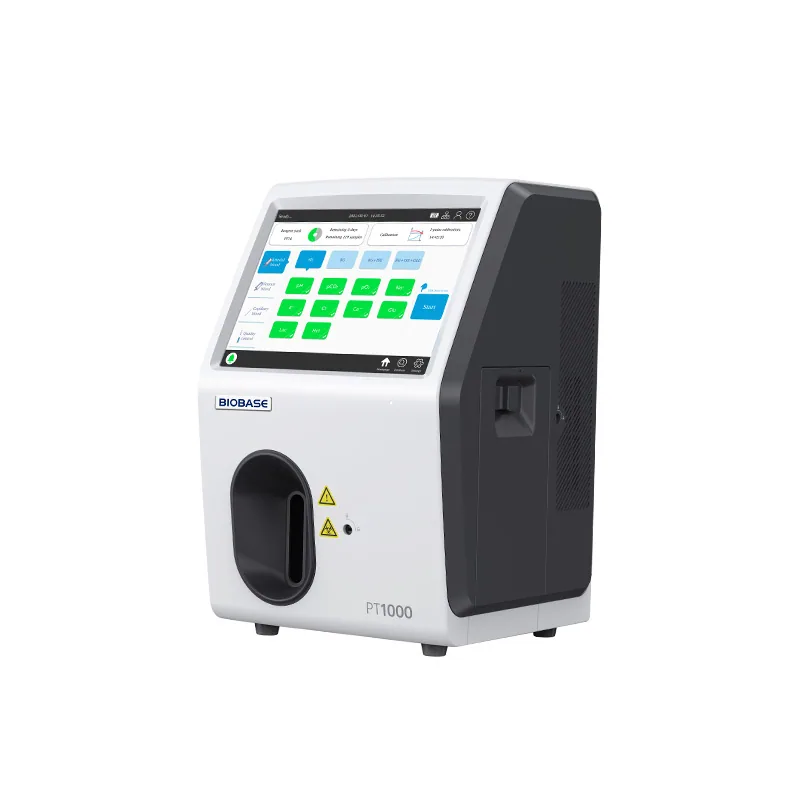

| Model | PT1000 |
|---|---|
| Throughput | Results in 60 seconds after sample aspiration |
| Sample Volume | 150μL |
| Display | 10.4-inch color LCD touch screen display |
| Battery | Lithium-ion battery 14.4V/6500mAh |
| Barcode Scanner | Yes |
| Interface | 4*USB 2.0 host, WLAN |
| Storage Capacity | 100000+ tests |
| Communication Link | Supports HL7 protocol for LIS/HIS |
| Operation Environment | 10~31℃ |
| Power Supply | AC100~240V, 50/60Hz |
| Product Size(W*D*H) | Type A: 260*270*410mm Type B: 370*270*410mm |
| Net Weight | Type A: 9.5kg Type B: 11kg |
| Packing Size(W*D*H) | Type A: 395*345*660mm Type B: 450*390*650mm |
| Gross Weight | Type A: 13.5kg Type B: 15kg |
| Parameter | Unit | Measuring range | Precision (CV) |
|---|---|---|---|
| pH | - | 6.8-8.0 | SD≤0.02 |
| pO₂ | mmHg | 20-600 | CV≤7.5% |
| pCO₂ | mmHg | 15-130 | SD≤2.5mmHg |
| Na⁺ | mmol/L | 100-180 | CV≤1.5% |
| K⁺ | mmol/L | 2.0-9.0 | SD≤0.25mmol/L |
| Ca⁺⁺ | mmol/L | 0.25-2.5 | SD≤0.15mmol/L |
| Cl⁻ | mmol/L | 70-150 | CV≤2.5% |
| Glu | mmol/L | 1.1-27 | CV≤5% |
| Lac | mmol/L | 0.3-17 | CV≤7.5% |
| Hct | %PCV | 20%-70% | CV≤3% |
| Category | Model | Analyze Items | Specification |
|---|---|---|---|
| Cartridges | PT3 | pH, pCO₂, pO₂ | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT4L | pH, pCO₂, pO₂, Lac | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT4H | pH, pCO₂, pO₂, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT5 | pH, pCO₂, pO₂, Lac, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT6E | pH, Na⁺, K⁺, Ca⁺⁺, Cl⁻, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT6 | pH, pCO₂, pO₂, Glu, Lac, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT8 | pH, pCO₂, pO₂, Na⁺, K⁺, Ca⁺⁺, Cl⁻, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT9L | pH, pCO₂, pO₂, Na⁺, K⁺, Ca⁺⁺, Cl⁻, Lac, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT9G | pH, pCO₂, pO₂, Na⁺, K⁺, Ca⁺⁺, Cl⁻, Glu, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Cartridges | PT10 | pH, pCO₂, pO₂, Na⁺, K⁺, Ca⁺⁺, Cl⁻, Glu, Lac, Hct | ; ; 60 tests/kit 120 tests/kit 200 tests/kit 300 tests/kit 600 tests/kit |
| Storage Temperature | 15~25℃ | 15~25℃ | 15~25℃ |
| Shelf Life | 210 days | 210 days | 210 days |
| Onboard Shelf Life | Type A: 21 days (60/120/200tests), 14 days (300tests); Type B: 32 days (60/120/200/300tests), 21 days (600tests) | Type A: 21 days (60/120/200tests), 14 days (300tests); Type B: 32 days (60/120/200/300tests), 21 days (600tests) | Type A: 21 days (60/120/200tests), 14 days (300tests); Type B: 32 days (60/120/200/300tests), 21 days (600tests) |
| Sample Type | Arterial blood, venous blood, capillary blood, quality control | Arterial blood, venous blood, capillary blood, quality control | Arterial blood, venous blood, capillary blood, quality control |
| Dimensions | Type A: 194*92*207mm; Type B: 304*92*203mm | Type A: 194*92*207mm; Type B: 304*92*203mm | Type A: 194*92*207mm; Type B: 304*92*203mm |
| Net Weight | Type A: 2kg; Type B: 3.5kg | Type A: 2kg; Type B: 3.5kg | Type A: 2kg; Type B: 3.5kg |
| Calibration | One-point calibration, two-point calibration | One-point calibration, two-point calibration | One-point calibration, two-point calibration |
| Components | Calibration solution, rinse solution, sensors, sample probe and waste bag | Calibration solution, rinse solution, sensors, sample probe and waste bag | Calibration solution, rinse solution, sensors, sample probe and waste bag |
| QP123 | A-1 | Level 1, 30 ampuls |
|---|---|---|
| QP123 | A2 | Level 2, 30 ampuls |
| QP123 | A-3 | Level 3, 30 ampuls |
| QP123 | A-123 | Level 1, 10 ampuls Level 2, 10 ampuls Level 3, 10 ampuls |
| QP123 | B-1 | Level 1, 5 ampuls |
| QP123 | B-2 | Level 2, 5 ampuls |
| QP123 | B-3 | Level 3, 5 ampuls |
| QP123 | C-123 | Level 1, 1 ampuls Level 2, 1 ampuls Level 3, 1 ampuls |
Manufacturer catalogue checked 2026-09-28.
