Brand: BIOBASE | Category: Scientific & Laboratory Equipment

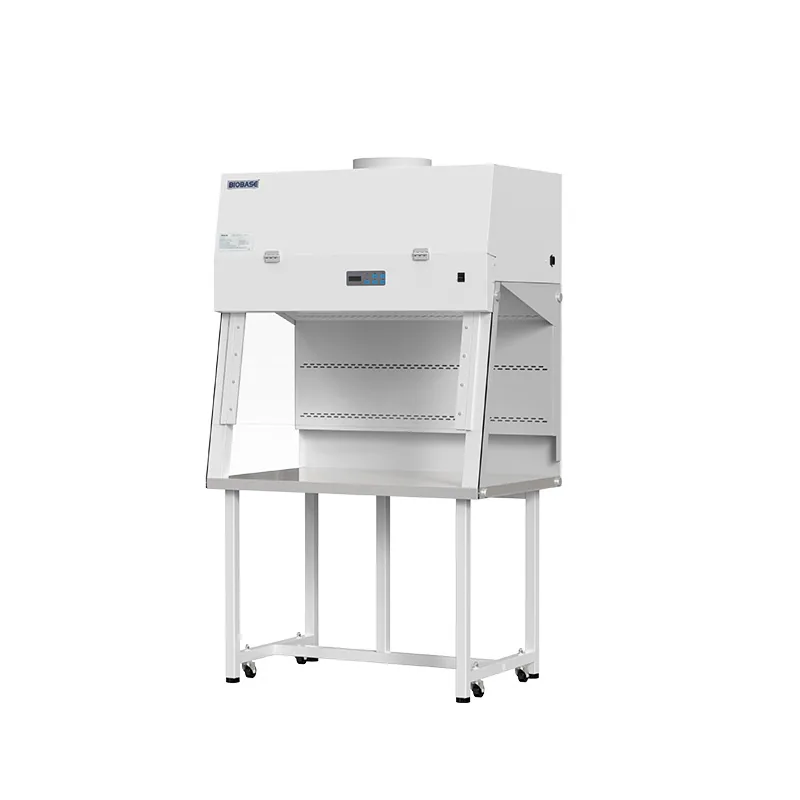

BIOBASE Class I Biological Safety Cabinet is listed in VVON's biosafety cabinets range for Bangladesh. Published models: BYKG-I, BYKG-II, BYKG-III, BYKG-V. Compare cabinet class, usable width, exhaust arrangement and installation requirements. For a quotation, send the sample workflow, required cabinet class, working width and room ventilation. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BYKG-I | BYKG-II | BYKG-III | BYKG-V |
|---|---|---|---|---|
| External Size(W*D*H) | 550*395*730mm | 700*550*900mm | 900*713*1250mm | 1100*697*1900mm |
| Internal Size(W*D*H) | 540*385*440mm | 680*540*500mm | 800*635*600mm | 968*625*630mm |
| HEPA Filter | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm | 99.995% efficiency at 0.3μm |
| Airflow Velocity | >0.3m/s | 0.75~1.0m/s | >0.3m/s | 0.75~1.0m/s |
| Noise | ≤60dB | ≤55dB | ≤60dB | ≤67dB |
| Illuminating Lamp | 4W*1 LED lamp | 8W*1 LED lamp | 8W*1 LED lamp | 12W*2 Fluorescent lamp |
| UV Lamp | 15W*1 | 20W*1 | 20W*1 | 20W*1 |
| UV Lamp | Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life. | Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life. | Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life. | Emission of 253.7 nanometers for most efficient decontamination BYKG-III has UV timer function and the display could indicate the UV life. |
| Power Consumption | 150W | 160W | 400W | 350W |
| Work Surface Height | / | / | / | 750mm |
| Caster | / | / | / | Universal caster |
| Main Body Construction | PMMA | PMMA | Cold-rolled steel with anti-bacteria powder coating, tempered glass | Cold-rolled steel with anti-bacteria powder coating, tempered glass |
| Work Table | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | AC220V±10%, 50/60Hz; 110V±10%, 60Hz |
| Standard Accessory | LED lamp, UV lamp*2 | LED lamp, UV lamp*2 | LED lamp, UV lamp*2 | Fluorescent lamp, UV lamp*2, Base stand |
| Optional Accessory | Electric height adjustable base stand | Electric height adjustable base stand | Electric height adjustable base stand | Electric height adjustable base stand |
| Gross Weight | 38kg | 68kg | 147kg | 185kg |
| Package Size(W*D*H) | 710*550*950mm | 870*720*1170mm | 1060*870*1440mm | 1260*860*2080mm |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
Share what you know. You can start with your name and a phone number or email; final specifications can follow.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about BIOBASE equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
