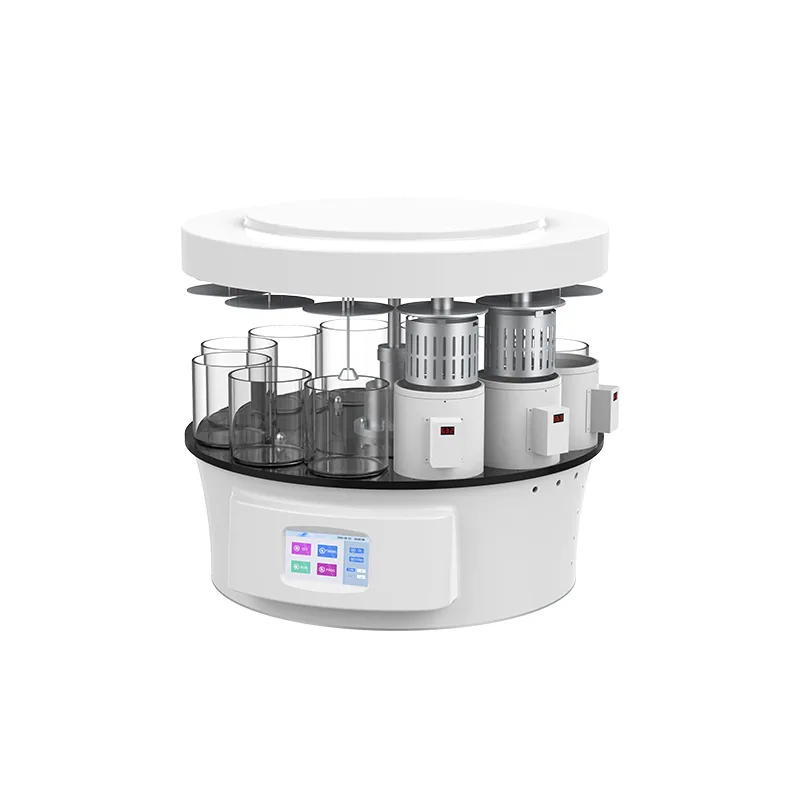

BIOBASE Automated Tissue Processor BK-TS6
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Automated Tissue Processor BK-TS6 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK-TS6. Published details include Single Cup Capacity: 2300ml; Single Paraffin Cup Capacity: 1800ml. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-TS6 |
|---|---|
| Cup Number | 12pcs(9pcs reagent cup, 3pcs paraffin cup) |
| Single Cup Capacity | 2300ml |
| Single Cup Processing Time | 0~99h59min |
| Single Paraffin Cup Capacity | 1800ml |
| Agitation Frequency | 5min/time |
| Dehydration Basket Size | Φ127*110mm |
| Dehydration Basket Capacity | 100 cassettes |
| Program Storage | 20 sets |
| Noise | ≤60dB(A) |
| Power Consumption | 400W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
| Standard Accessories | Dehydration Basket*1; Reagent cups*9; Paraffin cups*3; Activated carbon bag*1 |
| Optional Accessories | Dehydration Baskets*2 |
| External Size(W*D*H) | Φ800*630~760mm |
| Package Size(W*D*H) | Main instrument: 940*940*820mm; Reagent bottle: 470*640*570mm |
| Net Weight | 75kg |
| Gross Weight | Main instrument: 100kg; Reagent bottle: 32kg |
Manufacturer catalogue checked 2026-09-28.
