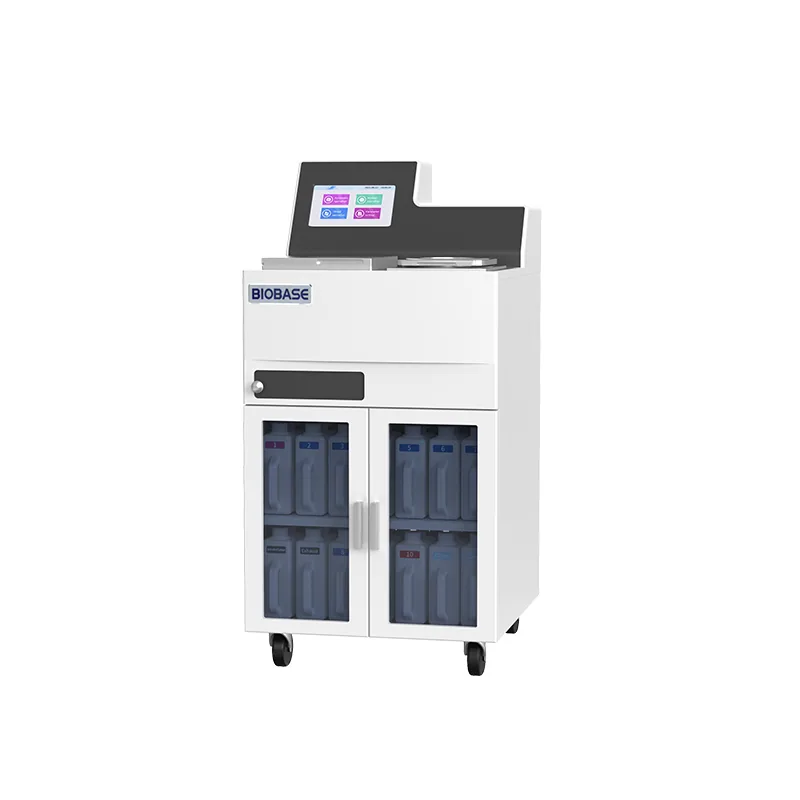

BIOBASE Automated Tissue Processor BK-TS4
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Automated Tissue Processor BK-TS4 is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK-TS4. Published details include Single Bottle Capacity: 3.5L; Processing Chamber Volume: 4.4L. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-TS4 |
|---|---|
| Reagent Bottle Number | 12 bottles(Bottles 1~10: Dehydration solvents; Bottle 14: Xylene; Bottle 15: Alcohol) |
| Single Bottle Capacity | 3.5L |
| Single Reagent Processing Time | 0~99h59min, adjustable |
| Paraffin Bath Number | 3 |
| Paraffin Bath Temperature | 50~80°C, adjustable |
| Temperature Control Accuracy | ±2°C |
| Processing Chamber Volume | 4.4L |
| Sample Processing Capacity | ≥200 samples/batch |
| Vacuum Pressure | <0.1MPa |
| Noise | ≤60dB(A) |
| Power Consumption | 1000W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
| Standard Accessories | Dehydration basket *1; Washing bottles*2; Reagent bottles*10; Activated carbon bottles*2 |
| External Size(W*D*H) | 685*640*1300mm |
| Package Size(W*D*H) | 750*800*1500mm |
| Net Weight | 140kg |
| Gross Weight | 170kg |
Manufacturer catalogue checked 2026-09-28.
