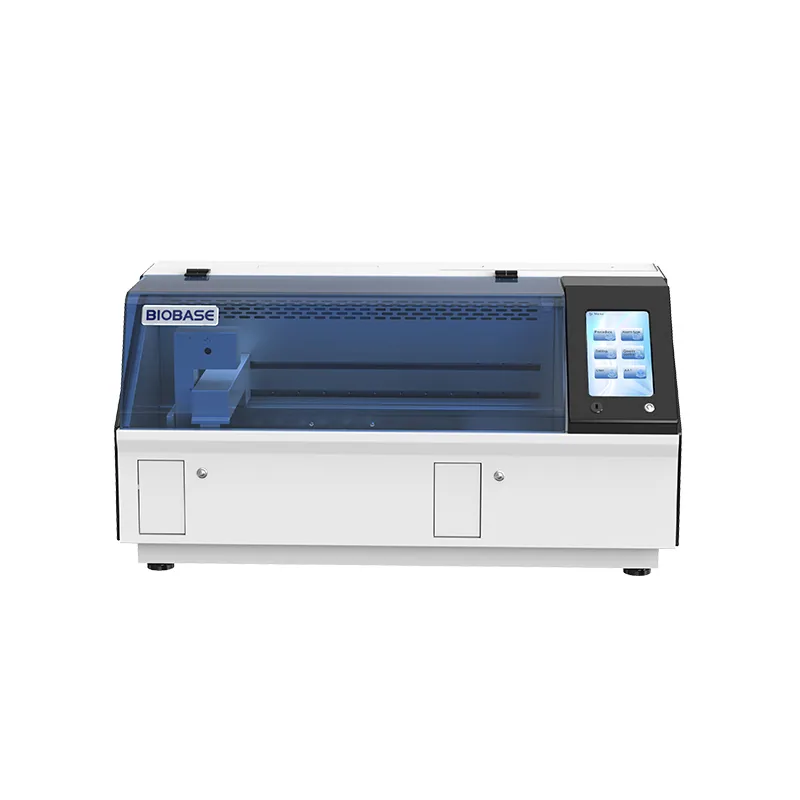

BIOBASE Automated Tissue Stainer
Brand: BIOBASE | Category: Medical Equipment
BIOBASE Automated Tissue Stainer is listed in VVON's histology & pathology equipment range for Bangladesh. Published models: BK-RS3. Published details include Single Cup Capacity: 380ml; Oven Temperature Range: RT~70℃. Match specimen throughput, preparation steps and consumables to the histology workflow. For a quotation, send the specimen workload, preparation method, accessories and consumables. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-RS3 |
|---|---|
| Cup Number | 26 |
| Reagent Stations | 19 |
| Washing Stations | 4 |
| Oven Chamber | 1 |
| Single Cup Capacity | 380ml |
| Single Cup Processing Time | 0~59min59s |
| Oven Temperature Range | RT~70℃ |
| Loading Capacity | Up to 15 staining racks |
| Slides per Rack | 30 |
| Loading/Unloading Stations | 1/1 |
| Programs Storage | 15 |
| Noise | ≤60dB(A) |
| Consumption | 400W |
| Power Supply | AC220V, 50/60Hz(Standard); AC110V, 60Hz(Optional) |
| Standard Accessories | Reagent cups*19; washing cups*4; staining racks*10; inlet pipe assembly*1; PVC water pipe 4m; ventilation pipe*1; activated carbon filter*1 |
| External Size(W*D*H) | 1200*640*600mm |
| Package Size(W*D*H) | 1350*780*830mm |
| Net Weight | 110kg |
| Gross Weight | 140kg |
Manufacturer catalogue checked 2026-09-28.
