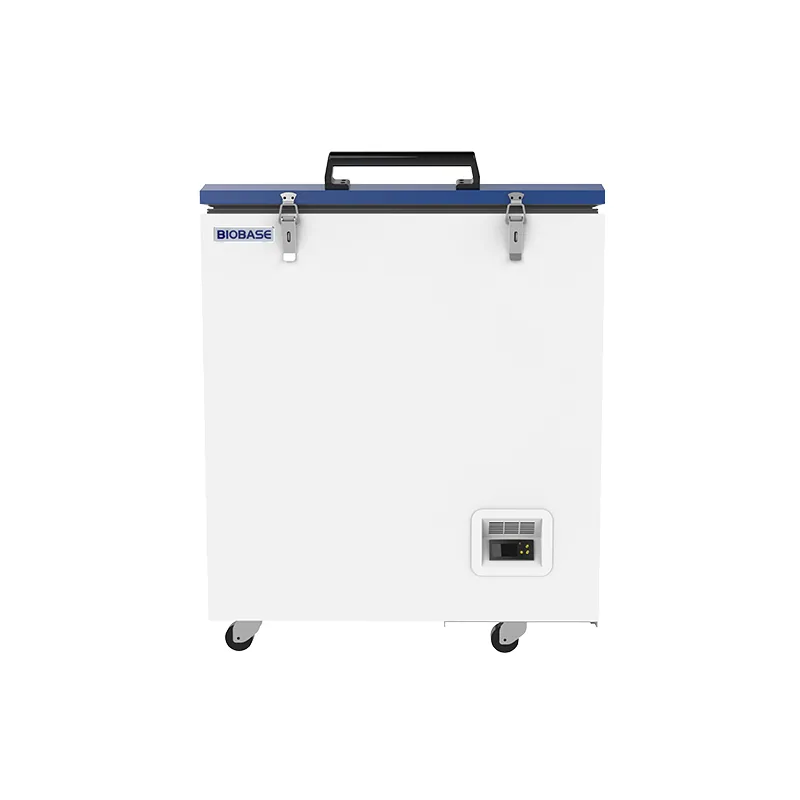

BIOBASE -60℃ Horizontal Freezer 110L 210L 308L
Brand: BIOBASE | Category: Scientific & Laboratory Equipment
BIOBASE -60℃ Horizontal Freezer 110L 210L 308L is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-60H110, BDF-60H210, BDF-60H310. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-60H110 | BDF-60H210 | BDF-60H310 |
|---|---|---|---|
| Capacity | 110L | 210L | 308L |
| Temp. Range | -10~-60℃ | -10~-60℃ | -10~-60℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ≤4℃ | ≤4℃ | ≤4℃ |
| Temp. Stability | ≤4℃ | ≤4℃ | ≤4℃ |
| Control System | Microprocessor control | Microprocessor control | Microprocessor control |
| Display | LED display | LED display | LED display |
| Alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm |
| Refrigeration Type | Direct-cooling | Direct-cooling | Direct-cooling |
| Refrigerant | R600a/R170, 95g | R600a/R170, 165g | R600a/R1150, 200g |
| Compressor | International famous brand compressor/1 | International famous brand compressor/1 | International famous brand compressor/1 |
| Condenser & Evaporator | Microchannel condenser; built-in coil type copper tube evaporator | Microchannel condenser; built-in coil type copper tube evaporator | Microchannel condenser; built-in coil type copper tube evaporator |
| Defrost | Manual defrost | Manual defrost | Manual defrost |
| Construction | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam |
| Material / Internal Material | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Material / External Material | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate |
| Door | Outer door: cyclopentane integral foam outer door*1 Inner door: / | Outer door: cyclopentane integral foam outer door*1 Inner door: / | Outer door: cyclopentane integral foam outer door*1 Inner door: / |
| Consumption | 280W | 335W | 420W |
| Power Supply | AC 220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC 220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) | AC 220V, 50Hz(Standard); 220V, 60Hz, 110V, 60Hz(Optional, external transformer) |
| Casters | Yes | Yes | Yes |
| Shelf | / | / | / |
| Standard Accessory | Test hole*1 | Test hole*1 | Test hole*1 |
| Optional Accessory | USB interface, RS485 interface, temperature recorder | USB interface, RS485 interface, temperature recorder | USB interface, RS485 interface, temperature recorder |
| Internal Size (W*D*H) | 520*460*600mm | 760*540*600mm | 1038*540*600mm |
| External Size (W*D*H) | 705*705*885mm | 945*785*885mm | 1225*790*885mm |
| Package Size (W*D*H) | 805*800*1015mm | 1045*880*1015mm | 1325*885*1015mm |
| Net Weight | 58kg | 68kg | 76kg |
| Gross Weight | 73kg | 88kg | 101kg |
Manufacturer catalogue checked 2026-09-28.
