Brand: BIOBASE | Category: Scientific & Laboratory Equipment

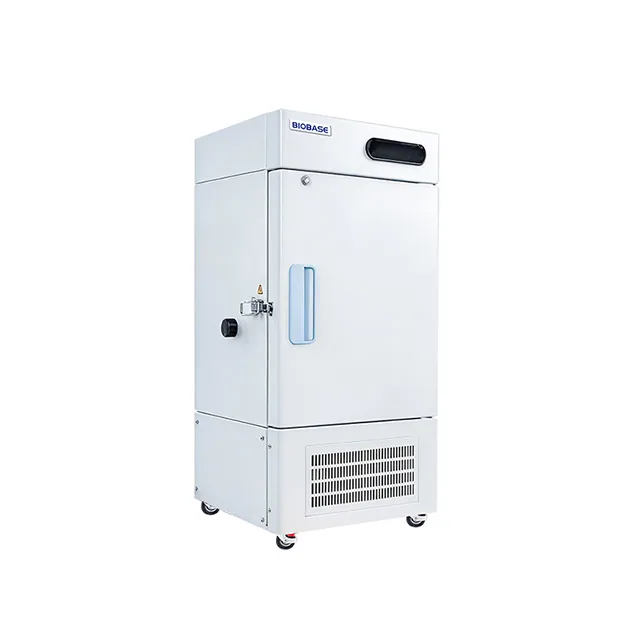

BIOBASE -86°C Freezer 28L 50L 58L 108L is listed in VVON's laboratory refrigerators & freezers range for Bangladesh. Published models: BDF-86V28, BDF-86V58, BDF-86V65, BDF-86V108. Compare usable capacity, temperature range, alarms and sample-storage requirements. For a quotation, send the sample type, usable capacity, temperature range and monitoring needs. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BDF-86V28 | BDF-86V58 | BDF-86V58 | BDF-86V58 | BDF-86V65 | BDF-86V108 | BDF-86V108 |
|---|---|---|---|---|---|---|---|
| Capacity | 28L | 58L | 58L | 58L | 65L | 108L | 108L |
| Temp. Range | -40~-86℃ | -40~-86℃ | -40~-86℃ | -40~-86℃ | -40~-86℃ | -40~-86℃ | -40~-86℃ |
| Temp. Accuracy | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ | 0.1℃ |
| Temp. Uniformity | ±3℃ | ±4℃ | ±4℃ | ±4℃ | ±4℃ | ±3℃ | ±3℃ |
| Temp. Stability | ≤6℃ | ≤6℃ | ≤6℃ | ≤6℃ | ≤6℃ | ≤6℃ | ≤6℃ |
| Recovery Time (Recover to -75℃ in an ambient temp. of 25℃) | 20min | 25min | 25min | 25min | ≤15min | 20min | 20min |
| Cooling Time (Cool down to -80℃ in an ambient temp. of 25℃) | 120min | 160min | 160min | 160min | ≤240min | 120min | 120min |
| Control System | Microprocessor control | Microprocessor control | Microprocessor control | Microprocessor control | Microprocessor control | Microprocessor control | Microprocessor control |
| Display | LED | LED | LED | LED | LED | LED | LED |
| Alarm | High/low temperature alarm, controller failure alarm | High/low temperature alarm, power failure alarm(48h), controller failure alarm, door ajar alarm, ambient temperature alarm, condenser fault alarm, filter clogging alarm, voltage abnormality alarm | High/low temperature alarm, power failure alarm(48h), controller failure alarm, door ajar alarm, ambient temperature alarm, condenser fault alarm, filter clogging alarm, voltage abnormality alarm | High/low temperature alarm, power failure alarm(48h), controller failure alarm, door ajar alarm, ambient temperature alarm, condenser fault alarm, filter clogging alarm, voltage abnormality alarm | High/low temperature alarm, power failure alarm(72h), controller failure alarm, door ajar alarm | High/low temperature alarm, controller failure alarm | High/low temperature alarm, controller failure alarm |
| Refrigeration Type | Direct-cooling | Direct-cooling | Direct-cooling | Direct-cooling | Direct-cooling | Direct-cooling | Direct-cooling |
| Refrigerant | R290/R170, 100g | R4001, 200g | R4001, 200g | R4001, 200g | R600a/R1150/R14, 150g | R600a/R1150/R14, 150g | R290/R170, 115g |
| Compressor | International famous brand compressor /1 | International famous brand compressor /1 | International famous brand compressor /1 | International famous brand compressor /1 | International famous brand compressor /1 | International famous brand compressor /1 | International famous brand compressor /1 |
| Condenser & Evaporator | Copper tube finned type; built-in coil type | Copper tube evaporator; finned condenser | Copper tube evaporator; finned condenser | Copper tube evaporator; finned condenser | Micro channel condenser; built-in coil type | Copper tube finned type; built-in coil type | Copper tube finned type; built-in coil type |
| Defrost | Manual defrost | Manual defrost | Manual defrost | Manual defrost | Manual defrost | Manual defrost | Manual defrost |
| Construction | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam | Polyurethane cyclopentane foam |
| Material ; / Internal Material | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel | 304 stainless steel |
| Material ; / External Material | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate | Sprayed steel plate |
| Door | Outer door: cyclopentane monomer foam outer door*1 Interior door: stainless steel door*1 | Outer door: sprayed steel plate door*1 Interior door: stainless steel door*2 | Outer door: sprayed steel plate door*1 Interior door: stainless steel door*2 | Outer door: sprayed steel plate door*1 Interior door: stainless steel door*2 | Outer door: cyclopentane monomer foam outer door*1 Interior door: cyclopentane monolithic foaming, stainless steel door*1 | Outer door: cyclopentane monomer foam outer door*1 Interior door: stainless steel door*2 | Outer door: cyclopentane monomer foam outer door*1 Interior door: stainless steel door*2 |
| Noise | 55~60dB(A) | 58dB(A) | 58dB(A) | 58dB(A) | 53dB(A) | 55~60dB(A) | 55~60dB(A) |
| Consumption | 400W | 442W | 442W | 442W | 540W Apparent power: 550VA | 480W | 480W |
| Power Supply | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) | AC 220V, 50Hz(Standard); 110/220V, 60Hz(Optional) | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) | AC 220V, 50Hz(Standard); 220V, 60Hz; 110V, 50/60Hz(Optional) |
| Casters | Yes | Yes | Yes | Yes | Yes | Yes | Yes |
| Shelf | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Standard Accessory | Test hole | Test hole | Test hole | Remote alarm function interface, test hole, USB interface | Test hole | Test hole | Test hole |
| Optional Accessory | Temperature recorder | Temperature recorder | Temperature recorder, RS485, liquid nitrogen backup system | Temperature recorder, RS485, liquid nitrogen backup system | USB interface, RS485, temperature recorder, liquid nitrogen backup system | Temperature recorder | Temperature recorder |
| Internal Size (W*D*H) | 270*265*400mm | 330*453*410mm | 330*453*410mm | 330*453*410mm | 360*455*395mm | 460*460*510mm | 460*460*510mm |
| External Size (W*D*H) | 505*520*1165mm | 635*757*1212mm | 635*757*1212mm | 635*757*1212mm | 660*715*1165mm | 700*730*1260mm | 700*730*1260mm |
| Package Size (W*D*H) | 535*575*1290mm | 730*860*1420mm | 730*860*1420mm | 730*860*1420mm | 765*825*1350mm | 765*815*1395mm | 765*815*1395mm |
| Net Weight | 71kg | 112kg | 112kg | 112kg | 92kg | 107kg | 107kg |
| Gross Weight | 90kg | 146kg | 146kg | 146kg | 134kg | 133kg | 133kg |
Manufacturer catalogue checked 2026-09-28.
Request an itemised quotation covering the proposed configuration, availability, lead time and agreed supply and support scope.
