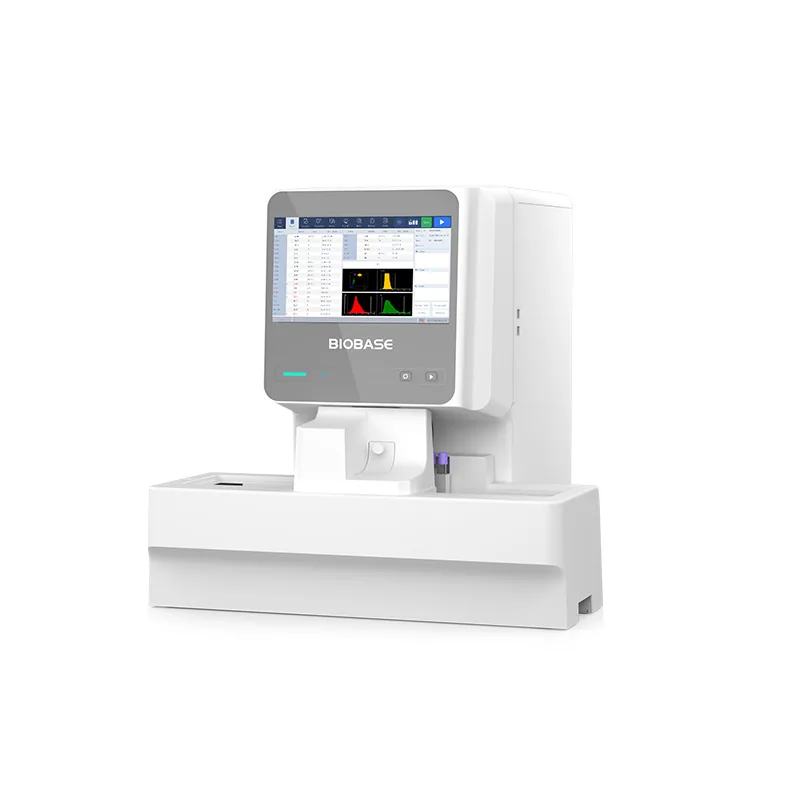

BIOBASE 5-Part Hematology Analyzer BK-6500
Brand: BIOBASE | Category: Medical Equipment
BIOBASE 5-Part Hematology Analyzer BK-6500 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BK-6500. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Model specifications
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BK-6500 | BK-6500 | BK-6500 | BK-6500 |
|---|---|---|---|---|
| Throughput | 70 tests/hour | 70 tests/hour | 70 tests/hour | 70 tests/hour |
| Assay Items | 5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram | 5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram | 5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram | 5 parts, 25 parameters, 3 histograms(WBC/BASO, RBC, PLT), 3D scattergram |
| Principle | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test | Tri-angle laser scatter, Flow cytometry method, 3D scattergram analysis, Impedance method for RBC and PLT counting, Cyanide-free method for HGB test |
| Test Mode | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted | CBC mode, CBC+DIFF mode Venous whole blood, Capillary whole blood and Prediluted |
| Sample Volume | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl | CBC+DIFF mode: ≤20μl CBC mode: ≤10μl |
| Parameters | 25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# | 25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# | 25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# | 25 reportable parameters: WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 6 research parameters: ALY%, ALY#, LIC%, LIC#, NRBC%, NRBC# |
| Performance | Item | Linearity Range | Carry Over | CV |
| Performance | WBC | 0~300.0*10^9/L | ≤0.5% | ≤2.0% |
| Performance | RBC | 0~8.00*10^12/L | ≤0.5% | ≤1.5% |
| Performance | HGB | 0~260g/L | ≤0.5% | ≤1.5% |
| Performance | PLT | 0~3000*10^9/L | ≤1.0% | ≤4.0% |
| Storage | Up to 300,000 results including histograms, scattergrams and patient information | Up to 300,000 results including histograms, scattergrams and patient information | Up to 300,000 results including histograms, scattergrams and patient information | Up to 300,000 results including histograms, scattergrams and patient information |
| Display | 14 inch touch screen, resolution 1366*768 | 14 inch touch screen, resolution 1366*768 | 14 inch touch screen, resolution 1366*768 | 14 inch touch screen, resolution 1366*768 |
| Interface | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader | 4 USB ports, 1 LAN port, Bi-direction LIS, support HL7 protocol, Internal RFID reader |
| System | LINUS system | LINUS system | LINUS system | LINUS system |
| Loading Position | 50 sample positions | 50 sample positions | 50 sample positions | 50 sample positions |
| Power Supply | AC100~240V, 50/60Hz; 300VA | AC100~240V, 50/60Hz; 300VA | AC100~240V, 50/60Hz; 300VA | AC100~240V, 50/60Hz; 300VA |
| Package Size(W*D*H) | Main Machine: 725*665*700mm Accessories: 950*500*580mm | Main Machine: 725*665*700mm Accessories: 950*500*580mm | Main Machine: 725*665*700mm Accessories: 950*500*580mm | Main Machine: 725*665*700mm Accessories: 950*500*580mm |
| Gross Weight | Main Machine: 60kg Accessories: 27.6kg | Main Machine: 60kg Accessories: 27.6kg | Main Machine: 60kg Accessories: 27.6kg | Main Machine: 60kg Accessories: 27.6kg |
| Reagent Package Size(W*D*H) | 330*330*330mm; 330*230*230mm; 330*230*230mm | 330*330*330mm; 330*230*230mm; 330*230*230mm | 330*330*330mm; 330*230*230mm; 330*230*230mm | 330*330*330mm; 330*230*230mm; 330*230*230mm |
| Reagent Gross Weight | 22kg, 2kg, 1kg | 22kg, 2kg, 1kg | 22kg, 2kg, 1kg | 22kg, 2kg, 1kg |
Manufacturer catalogue checked 2026-09-28.
