Brand: BIOBASE | Category: Medical Equipment

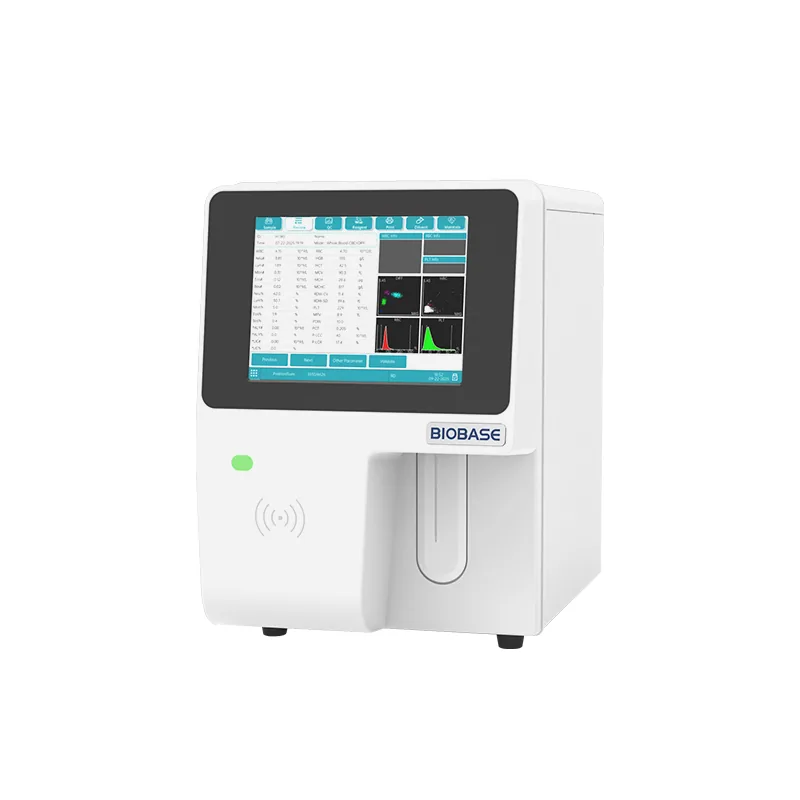

BIOBASE 5-Part Hematology Analyzer BH-HA610 is listed in VVON's clinical analysers & diagnostics range for Bangladesh. Published models: BH-HA610. Compare the test menu, samples per day, reagent compatibility and quality-control workflow. For a quotation, send the test menu, daily sample volume, reagent requirements and laboratory location. Confirm the exact model, included accessories, consumables, delivery and service scope in the offer. Manufacturer specifications below describe the published configuration; options and local availability require confirmation.
Compare each model column separately. Confirm options and included accessories in your quotation.
| Model | BH-HA610 | BH-HA610 | BH-HA610 | BH-HA610 |
|---|---|---|---|---|
| Throughput | 60 Tests/hour | 60 Tests/hour | 60 Tests/hour | 60 Tests/hour |
| Assay Items | 5 parts, 29 parameters, 2 histograms, 2 scattergrams | 5 parts, 29 parameters, 2 histograms, 2 scattergrams | 5 parts, 29 parameters, 2 histograms, 2 scattergrams | 5 parts, 29 parameters, 2 histograms, 2 scattergrams |
| Principle | Semiconductor laser scattering technology, flow cytometry, three-dimensional scatter plot analysis, electrical impedance measurement technology, and cyanide-free HGB measurement technology. | Semiconductor laser scattering technology, flow cytometry, three-dimensional scatter plot analysis, electrical impedance measurement technology, and cyanide-free HGB measurement technology. | Semiconductor laser scattering technology, flow cytometry, three-dimensional scatter plot analysis, electrical impedance measurement technology, and cyanide-free HGB measurement technology. | Semiconductor laser scattering technology, flow cytometry, three-dimensional scatter plot analysis, electrical impedance measurement technology, and cyanide-free HGB measurement technology. |
| Test Mode | CBC+DIFF mode Venous whole blood, capillary whole blood and prediluted | CBC+DIFF mode Venous whole blood, capillary whole blood and prediluted | CBC+DIFF mode Venous whole blood, capillary whole blood and prediluted | CBC+DIFF mode Venous whole blood, capillary whole blood and prediluted |
| Sample Volume | CBC+DIFF mode: ≤20μl | CBC+DIFF mode: ≤20μl | CBC+DIFF mode: ≤20μl | CBC+DIFF mode: ≤20μl |
| Parameters | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 research parameters: ALY%, ALY#, LIC%, LIC# | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 research parameters: ALY%, ALY#, LIC%, LIC# | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 research parameters: ALY%, ALY#, LIC%, LIC# | WBC, RBC, HGB, HCT, MCV, MCH, MCHC, RDW-SD, RDW-CV, PLT, MPV, PCT, PDW, P-LCR, P-LCC, NEU%, LYM%, MON%, EOS%, BAS%, NEU#, LYM#, MON#, EOS#, BAS# 4 research parameters: ALY%, ALY#, LIC%, LIC# |
| Performance | Item | Linearity Range | Carry Over | CV(Whole blood) |
| Performance | WBC | 0~100.00*10^(9)/L | ≤0.5% | ≤2.0% |
| Performance | RBC | 0~8.00*10^(12)/L | ≤0.5% | ≤1.5% |
| Performance | HGB | 0~250g/L | ≤0.6% | ≤1.5% |
| Performance | PLT | 0~1000*10^(9)/L | ≤1.0% | ≤6.0%(100~149*10^(9)/L) ≤4.0%(150~500*10^(9)/L) |
| Storage | 100,000 results including histogram, scattergram and patient information | 100,000 results including histogram, scattergram and patient information | 100,000 results including histogram, scattergram and patient information | 100,000 results including histogram, scattergram and patient information |
| Interface | 1 Ethernet port, 2 USB ports, supports bidirectional LIS systems and HL7 protocol. Optional of printer and Wi-Fi | 1 Ethernet port, 2 USB ports, supports bidirectional LIS systems and HL7 protocol. Optional of printer and Wi-Fi | 1 Ethernet port, 2 USB ports, supports bidirectional LIS systems and HL7 protocol. Optional of printer and Wi-Fi | 1 Ethernet port, 2 USB ports, supports bidirectional LIS systems and HL7 protocol. Optional of printer and Wi-Fi |
| Screen | 10.4-inch LCD touch screen | 10.4-inch LCD touch screen | 10.4-inch LCD touch screen | 10.4-inch LCD touch screen |
| Power Supply | AC220V 50/60Hz (Standard); AC110V 50/60Hz (Optional), 200VA | AC220V 50/60Hz (Standard); AC110V 50/60Hz (Optional), 200VA | AC220V 50/60Hz (Standard); AC110V 50/60Hz (Optional), 200VA | AC220V 50/60Hz (Standard); AC110V 50/60Hz (Optional), 200VA |
| Package Size(W*D*H) | 570*450*700mm | 570*450*700mm | 570*450*700mm | 570*450*700mm |
| Gross Weight | 36kg | 36kg | 36kg | 36kg |
| Reagent Package Size(W*D*H) | 330*330*330mm; 330*230*230mm; 330*230*230mm | 330*330*330mm; 330*230*230mm; 330*230*230mm | 330*330*330mm; 330*230*230mm; 330*230*230mm | 330*330*330mm; 330*230*230mm; 330*230*230mm |
| Reagent Gross Weight | 22kg, 2kg, 1kg | 22kg, 2kg, 1kg | 22kg, 2kg, 1kg | 22kg, 2kg, 1kg |
Manufacturer catalogue checked 2026-09-28.
