Brand: EDIBON | Category: Scientific & Laboratory Equipment

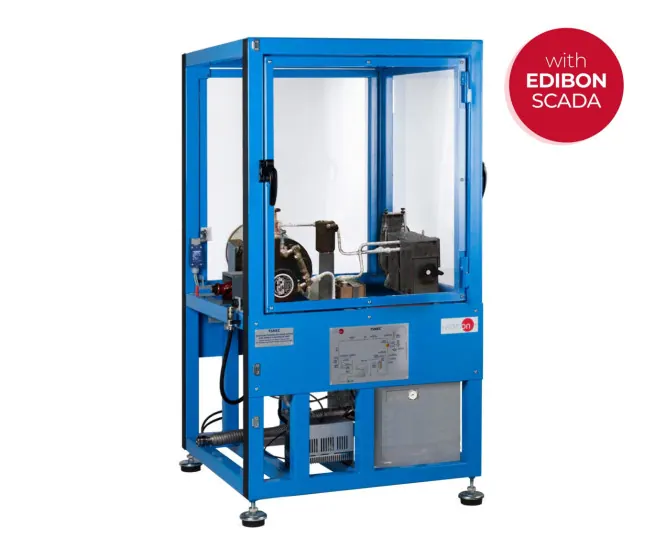

Complete Rankine cycle in which water is pumped to a computer controlled boiler, expanded in a two cylinder steam motor and condensed back to the storage tank. A throttling calorimeter gives the dryness fraction of the steam produced.
| Parameter | Value |
|---|---|
| Specification | Computer controlled feed pump and computer controlled water boiler with power measurement |
| Specification | Two cylinder steam motor generating measured electrical power |
| Specification | Heat exchanger condenser with condensate collected in a measuring tank |
| Specification | Band-brake dynamometer measures speed, torque and power of the motor |
| Specification | Throttling calorimeter measures the dryness fraction of the steam |
| Specification | Boiler safety valve and level switch |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
