Brand: EDIBON | Category: Scientific & Laboratory Equipment

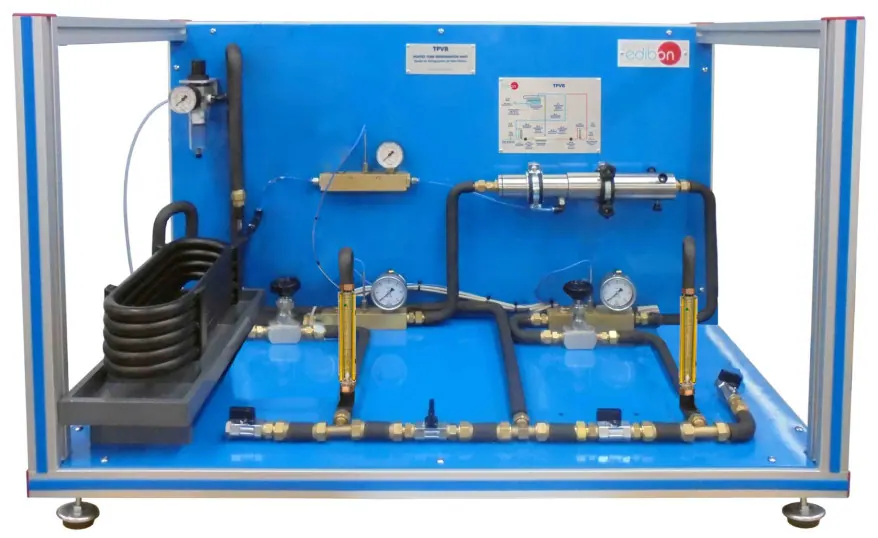

Compressed air unit for studying the physical, mechanical and thermodynamic behaviour of a vortex tube. Air entering tangentially splits into a cold stream and a hot stream that leave at opposite ends, with no moving parts involved.
| Parameter | Value |
|---|---|
| Specification | Inlet pressure adjustable with a regulating valve up to the maximum set at the filter |
| Specification | Concentric tube heat exchanger varies the inlet air temperature |
| Specification | Regulation valves at both outlets to vary the cold fraction |
| Specification | Flowmeter, temperature sensor and manometer on both the hot and cold streams |
| Specification | Several exchangeable vortex generators with different internal diameter |
| Specification | Computer controlled version available as TPVC |
