Brand: EDIBON | Category: Scientific & Laboratory Equipment

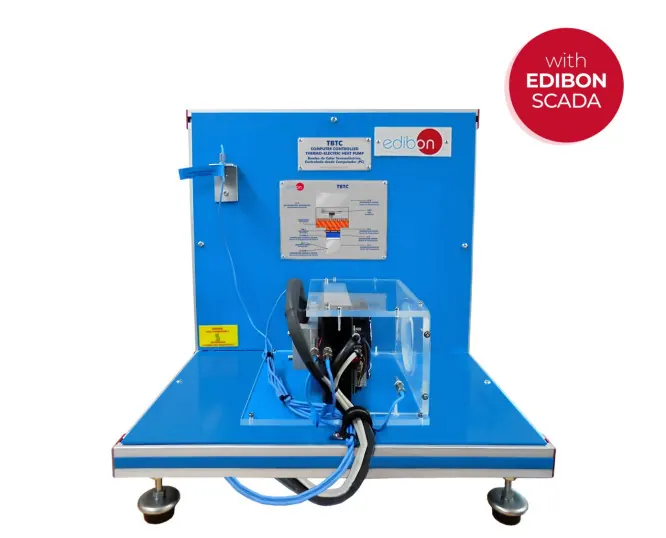

Peltier module mounted between a heated cold side and a finned heatsink, used to study thermoelectric phenomena. Students investigate the Peltier, Thomson and Seebeck effects and use the module as a heat pump and as a refrigeration device.
| Parameter | Value |
|---|---|
| Specification | Thermoelectric module with n-type and p-type semiconductor junctions in series |
| Specification | Computer controlled heating element on the cold side, covered by an insulated stainless steel conductor |
| Specification | Heatsink on the hot side made up of a heat exchanger and a fan inside an insulated box |
| Specification | Two temperature control sensors, in the heating element and on one side of the module |
| Specification | Experimental configurations selected with switches |
| Specification | Supplied with EDIBON SCADA computer control, data acquisition and data management software |
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about EDIBON equipment requirements in Bangladesh.
Phone: +8801805987890 | Email: info@vvon.com.bd
