Brand: Saikang Medical | Category: Medical Equipment

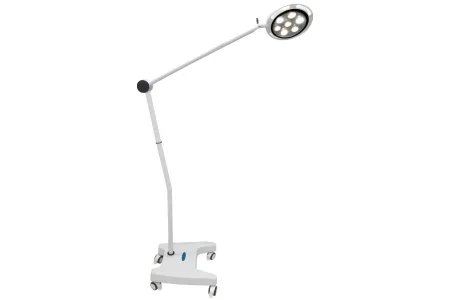

The head of this examination lamp moves 90 degrees up and down and flips 300 degrees horizontally, while overall height adjusts between 1.25 and 1.75m so it can match the height of the patient easily. Seven OSRAM LEDs deliver at least 40000 Lux at 1m with 4 levels of brightness adjustment and a colour rendering index of 90 or higher. Colour temperature runs from 4000 to 5000 Kelvin over 2 adjustment levels, maximum power is 12W and average bulb life is 50000 hours. Button operation is clear and straightforward, and the lamp is supplied with a 2.5m power cable for AC100-240V, 50/60Hz supplies.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about Saikang Medical equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
A new type of LED cold light source pushes illuminance to 160,000 Lux with 9-level adjustment, while colour temperature covers 4000K-5000K with 4-level adjustment. A colour rendering index of 95 reflects the true colour of human tissues, which suits a range of surgical scenes and greatly reduces visual fatigue for staff during long operations. Temperature rise in the surgical field is held to 0.5 °C or less, avoiding tissue drying and rapid blood clots at the wound. The twin heads measure 700/530 ± 10mm and carry 81 + 51 OSRAM LEDs rated at 3W but used at 1W, with a lifespan of 50,000 hours and installation heights of 2800-3200mm.
Multi-patch superposition technology keeps the light spot uniform across the surgical field. Intelligent shadow management links the dual light heads so that supplementary lighting stays even, and the centralised camera can be shared quickly between different operating rooms. Central illuminance reaches 160000 lx over 10 levels, light field diameter runs 200-300mm over 5 levels, colour temperature is adjustable from 4000 to 5500K over 9 levels and the colour rendering index is above 90.
Focus can be adjusted manually by the handle or electrically from the controller, and a QR code for the app download lets the lamp be controlled by app. Three lighting modes are offered: red light compensation, green light compensation and shadow compensation. The 700 ± 10mm head holds 81 OSRAM LEDs rated at 3W but used at 1W, giving 40,000-160,000 Lux at 1 metre across 9 brightness levels with a colour rendering index of 95 or better. Illumination depth is at least 120cm, surgical field temperature rise stays at 0.5 °C or less, and LED lifespan is 50,000 hours.
