Brand: WissEl | Category: Nanotechnology

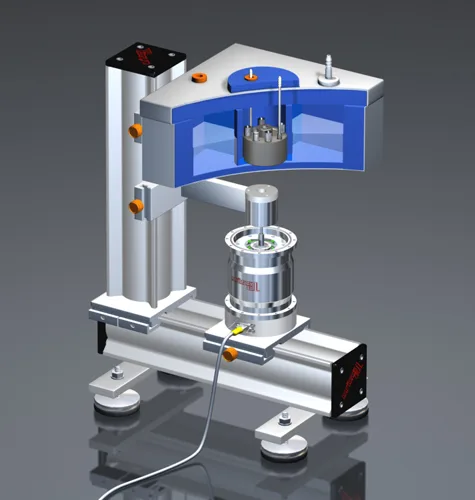

Liquid nitrogen cryostat that surrounds the RiKon-5 CEMS detector with a nitrogen chamber walled in cellular material. If the detector is not heated the nitrogen charge lasts several hours, and a level sensor can be fitted for automatic refilling. Gamma radiation enters through a window in the bottom and reaches the detector after passing only a short distance of foam plastic, while gas and high voltage are fed in through openings in the top cover.
Not sure which configuration you need? Help me choose
Contact Vvon Technologies Limited about WissEl equipment requirements in Bangladesh.
Phone: +880 1711-738207 | Email: info@vvon.com.bd
Controller that governs the nitrogen level in the RiKon-5-LNC liquid nitrogen cryostat and manages the supply of liquid nitrogen to it. An AA118 germanium diode serves as level sensor and a PT100 thermo resistor inside the RiKon-5 CEMS detector as temperature sensor, giving a working span from close to liquid nitrogen temperature up to roughly room temperature. A built-in EUROTHERM 3216 module carries the temperature control functions, set from push buttons on the front panel or read and adjusted remotely over the RS 232C serial interface with optional software. Filling status is shown on a three colour LED and an adjusting screw sets the maximum permitted nitrogen transfer time before the alarm trips.
Low temperature CEMS acquisition system supplied with the RiKon-5TT detector assembly, which brings a polyethylene foam cryostat and a temperature controller with it. The vertical geometry needed for low temperature CEMS work is provided by the MB-500 VT vertical track included in the package. Signal processing runs through the PEA-6 preamplifier and AMP-1000 main amplifier into the CMCA-550 acquisition module.
Low temperature CEMS detector assembly listed on WissEl's instrument list as the RiKon-5 detector together with a polyethylene foam cryostat and accessories. WissEl's MDAS-3TT entry adds that the RiKon-5TT package includes the foam cryostat and a temperature controller. It is the detector supplied with the MDAS-3TT low temperature data acquisition system.
